Water Systems - Glow-worm ULTIMATE 30BF Instructions For Use Installation And Servicing

Balanced flue boiler
Table of Contents

Advertisement

The installation of the boiler must comply with the requirements
of the current issue of BS6798.
3.1 Frost Protection
If the position of the boiler is such that it may be vulnerable to
freezing it should be protected as specified in the current issue
of BS5422. It is recommended that a frost protection thermostat
be fitted.
3.2 Pump
The pump, with integral valves, should be fitted in the heating
flow pipework from the boiler, it should be set to produce a
temperature difference of 11
return, with the control thermostat set at "MAX", which is about
82
o
C (180
o
F).
The resistance through the boiler can be found from diagram 3.1.
High resistance microbore systems may require a higher duty
pump.
3.3 Bypass - Fully Pumped Water System
A bypass is usually unnecessary on systems using a 3 port
diverter valve since one port will remain in the open position at
all times.
This allows satisfactory operation of the pump
overrun.
However if thermostatic radiator valves are fitted to all radiators
or two port valves are used a bypass is required.
The bypass connection must be at least 2 metres away from the
boiler.
The flow through the boiler must not be allowed to fall such that
there is a temperature difference greater than 20
flow and return.
3.4 Water System
The cold feed must be 15mm minimum size.
It is important that the relative positions of the pump, cold feed
and open vent are as shown in diagram 3.2.
The unrestricted open vent from the boiler must rise continuously
to discharge over the feed and expansion cistern.
1000
750
500
250
0
5
0
Flow rate (litres/minute)
PRESSURE LOSS OF BOILER

3 Water Systems

o
o
C (20
F), between the flow and
o
C between the
10
15
20
25

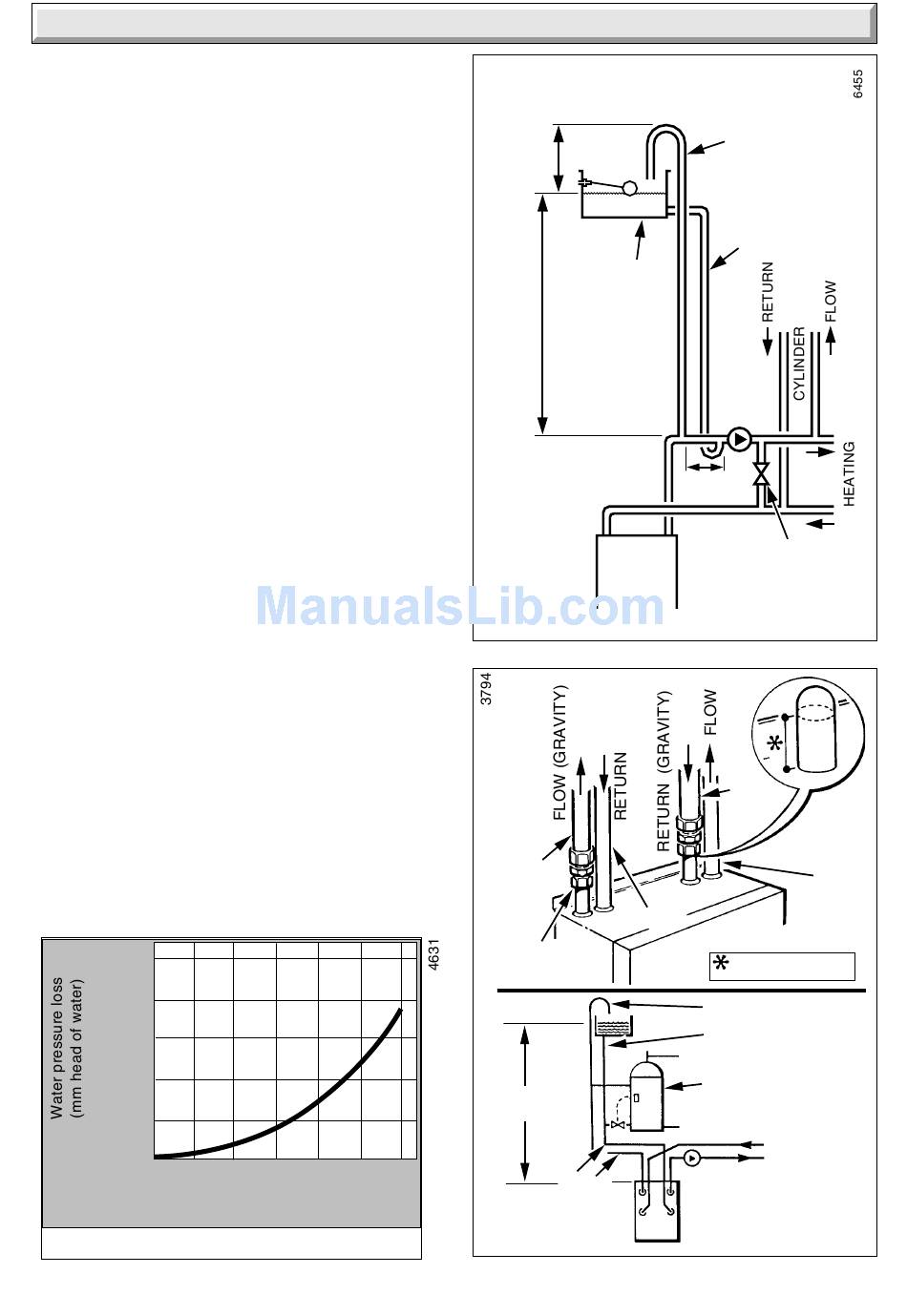

Diagram 3.1
OPEN VENTED FULLY PUMPED WATER SYSTEM
RECOMMENDED RELATIONSHIP BETWEEN
PUMP COLD FEED AND VENT
450mm
MIN.
HEIGHT
1150mm
MIN.
There must always
be a cold water path
to the return
connection
of the boiler.
28mm
PIPE
COMPRESSION
JOINT
1m MIN.
27m MAX.
30
28mm
VIEWED
FROM
FRONT
9
22mm VENT
(MIN.)
15mm (MINIMUM)
COLD FEED
FEED AND
EXPANSION
CISTERN
PUMP
150mm
MAX.
IF REQUIRED
15mm (MINIMUM)
BOILER
BY-PASS WITH
LOCKSHIELD VALVE
28mm
PIPE
22mm
PIPE
Note: When cutting leave
sufficient length for fittings
22mm VENT
15mm COLD FEED
INDIRECT CYLINDER
(Shown with
recommended
thermostat and valve)
PUMP
REFER TO BS5546
FLOW
RET.
Diagram 3.2
22mm
PIPE
HEATING
SYSTEM
Diagram 3.3
221788B
