Swisher RTB115441 Owner's Manual
44” rough cut trail cutter
Hide thumbs
Also See for RTB115441:
- Owner's manual (16 pages) ,
- Repair manual (12 pages) ,
- Owner's manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Swisher RTB115441
Summary of Contents for Swisher RTB115441

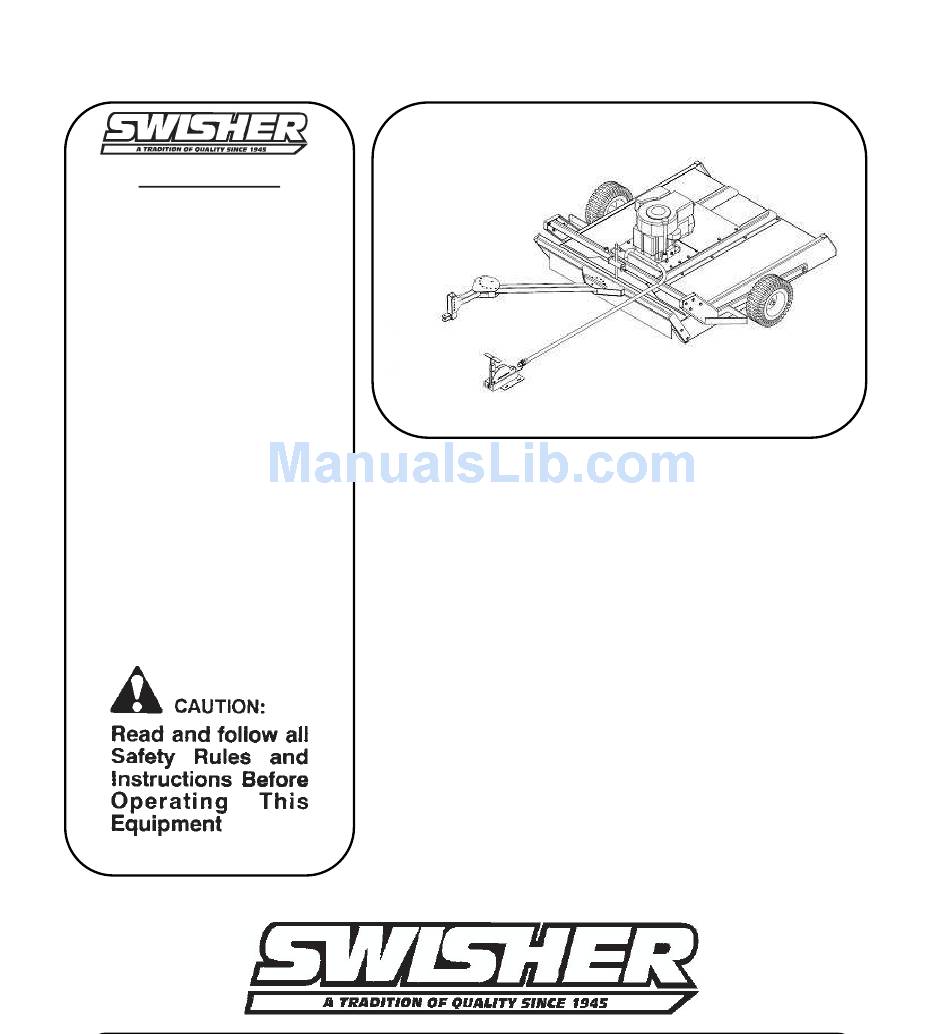

- Page 1 OWNER’S MANUAL MODEL NO. STARTING SERIAL #: L107-296044 RTB115441 RTB12544 RTB134412V RTB14544 POLB10544HD 44” ROUGH CUT POL12544X POL14544X TRAIL CUTTER Assembly Operation Service and Adjustment Repair Parts Rev. 07-296...
-
Page 2: Safety And Operational Decals
SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number from Swisher Mower and Machine Co. Inc. 1-800-222-8183,8-5 CT M-F OD39-SWISHER FLAG DECAL OD82-44 RUGGED CUT DECAL OD33-5MPH DECAL OD29-DANGER DECAL OD36-Deflector Decal OD55-DANGER DECAL OD45-WARNING DECAL... - Page 3 FRONT SKIRT ASSEMBLY FIGURE 1 Item # Description Part # 5/16-18 X 1 HCC GR5 ZP NB501 Metal Strap For Rubber Flap 4853* Rubber Flapper 10384 5/16-18 Nylock Nut NB181 Deck Weldment 10357* HITCH BAR ASSEMBLY FIGURE 2 Item # Description Part # Hitch Tube...
- Page 4 FIGURE 4 Item # Description Part # 5/16-18 x 3/4 Serr Flg. Bolt NB596 5/16-18 Serrated Flng Nut ZY NB170 Wheel, Tire, Bearing 4834 Back Cover 10366* Front Cover 10367* Motor Base 10343* Axle Bar Weldment Right 10356TK Axle Bar Weldment Left 10355TK Front Tube Weldment 10342TK...
- Page 5 NOT ACTUAL ENGINE PULLEY ASSEMBLY ENGINE USED FIGURE 6 (REF. ONLY) Engine B&S 5/16-18 Serrated Flange Nut NB170 NB253 5/16''-18 X 1 1/4'' Serrated Flange Bolt 5/16'' USS Flat Washer ZP NB556 RT44 Belt Guide 4867 Spacer For Engine Pulley BB105S 5/16''-18 X 2 1/4 ''Flang Serr.
-
Page 6: Console Assembly
Clutch Cable Clevis 9023MOD Link for Console 4461TK Pin - Cotter, 5/64 X 3/4 ZY NB519 10385 Wiring Harness B&S (RTB115441, RTB12544, POLB10544HD) WHRT44-1 Wiring Harness B&S (RTB134412V) console 11764 Wiring Harness B&S (RTB134412V) engine 10299 Wiring Harness B&S (RTB14544) - Page 7 WIRING DIAGRAM ( RTB115441, RTB12544, POLB10544HD ) FIGURE 10 WIRING DIAGRAM ( RTB134412V ) FIGURE 11...
- Page 8 Notes...
- Page 9 REPAIR PARTS Your 44’’ Trailcutter has been produced with components designed specific to this machine. Although standard V-belts, springs, bearings, blades, pulleys, hardware, etc. look similar to parts used on other machinery, they may in some cases be made of a different construction and/or materials.
