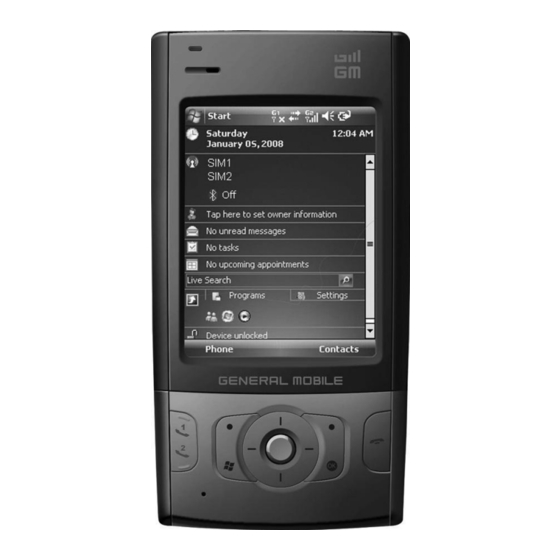

GENERAL MOBILE DSTW1 User Manual

Tri-band gsm smartphone with dual sim card support
Hide thumbs Also See for DSTW1:
Table of Contents

Advertisement

Quick Links

Download this manual
GENERAL MOBILE
DSTW1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSTW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GENERAL MOBILE DSTW1

Summary of Contents for GENERAL MOBILE DSTW1

  • Page 1 GENERAL MOBILE DSTW1 User Manual...

  • Page 4: Please Read Before Proceeding

    Please Read Before Proceeding THIS DEVICE IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER CASING. EXPLOSIVE ATMOSPHERES When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all...
  • Page 5 explosives. SAFETY FOR ENVIRONMENTS Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

  • Page 6: Table Of Contents

    Contents Chapter 1 ........................... 15 Getting Started ........................15 1.1 Getting to Know your Device and its Accessories ............16 Front and left side view ......................16 Back and right side view ......................17 Accessories ..........................18 1.2 Inserting the SIM Card ....................
  • Page 7 To use Block Recognizer ......................30 2.5 Using Transcriber ......................31 To start Transcriber ......................... 31 To write using Transcriber ...................... 31 To enter punctuation and symbols ..................31 To edit text..........................31 Transcriber Gestures ....................... 31 The Transcriber toolbar ......................
  • Page 8 3.5 Additional Dialing Information .................. 39 To make an emergency call...................... 39 To make an international call ....................40 Chapter 4 ........................... 41 Synchronizing Your Device ....................41 4.1 Using ActiveSync ......................42 To install and set up ActiveSync ....................42 4.2 Synchronizing Information..................
  • Page 9 Phone settings ........................... 50 5.2 Adding and Removing Programs ................51 To add programs ........................52 To remove programs ........................ 52 5.3 Managing Memory ...................... 52 To see how much memory is available ..................52 To see available storage card memory ..................
  • Page 10 To change how Web pages fill the screen ................60 To clear the History list ......................60 To save a picture from a Web page ..................60 To change cookies and security settings ................. 60 To delete temporary Internet files ...................
  • Page 11 To add an attachment to a message ..................69 To receive attachments ......................69 To download messages ......................70 To download messages from the server .................. 70 To manage folders ........................70 7.3 MMS Messages ......................71 To set up MMS ..........................
  • Page 12 To create a contact ........................80 To change contact information ....................80 To work with the contact list ....................80 To find a contact ........................80 7.7 Tasks ..........................81 To create a task ......................... 81 To change the priority of a task ....................
  • Page 13 To sort pictures and video clips ....................91 To delete a picture or video clip ....................91 To edit a picture or video clip ....................91 To set a picture as the Today screen background ..............91 To send pictures and video clips via e-mail ................
  • Page 14 To run MIDlets on your device....................100 To manage MIDlets ........................ 101 To change the name of a MIDlet ................... 101 To uninstall a MIDlet ......................101 To configure MIDlet security ....................101 9.3 Contact Manager ....................... 102 Appendix .......................... 103 A.1 Regulatory Notices ....................

  • Page 15: Chapter 1

    Chapter 1 Getting Started 1.1 Getting to Know your Device and its Accessories 1.2 Installing the SIM Card 1.3 Battery Information 1.4 Starting Up 1.5 The Today Screen 1.6 Using the Start Menu...

  • Page 16: Getting To Know Your Device And Its Accessories

    1.1 Getting to Know your Device and its Accessories Front and left side view Item Function Notification LED Bi-color LED Power indicator, battery charging status. Receiver Listen to audio media or phone calls. Touch Screen Use to write, draw, or make selections with the stylus. Press and hold G1 or G2 button to open the Wireless Managerp on the today screen.

  • Page 17: Back And Right Side View

    Right Soft Key Performs the command shown in the label above the button. Press this button to end a call or return to the Today screen. Press this End Button button to end the highlight call while the incoming calls are at the same time.

  • Page 18: Accessories

    Micro SD Card Slot Insert a storage card (Micro SD) for storing data. Press this button to turn off your device temporarily and switches the device to sleep mode; press and hold this button to turn off your device Power Button completely.

  • Page 19: 1.2 Inserting The Sim Card

    AC Adapter Recharge the device battery. USB Cable Connect your device to PC and synchronize data. Provide a Talk/End button. You can use the button to pick up and Headset hang up incoming and outgoing calls. To use it, plug into Earphone Jack.

  • Page 20: Battery Information

    Replace the battery and gently push down to snap it into place. Replace the battery cover. 1.3 Battery Information This device is intended for use with a Li-ion polymer battery. Use only batteries, chargers and enhancements approve by the manufacturer. Battery performance depends on many factors, including wireless service provider‘s network configuration, signal strength, temperature of the environment in which you operate your device, the features and/or settings you select and use, items attached to your device‘s...

  • Page 21: To Charge The Battery

    Note You can adjust Backlight and Beam settings to conserve power. Also you can turn off LED light in Power Saving tab. To charge the battery New batteries are shipped partially charged. Install and charge the battery before use with this device. The full performance of a new battery is achieved only after several complete charge and discharge cycles.

  • Page 22: To Calibrate The Device

    To calibrate the Device Calibrating the device screen involves using the stylus to tap the centre of a cross as it moves around the screen. If the device does not accurately respond to screen taps, follow these steps to re-calibrate it: Select Start >...
  • Page 23 2 3 4 5 Tap to open the Start menu. Tap to view connectivity status. Indicates the radio signal strength. Tap to configuration the phone settings. Tap to control device/ringer volume level. Indicates the battery status. Tap to enter the Power Settings screen. Displays the current time.

  • Page 24: Indicators

    Indicators Following are some of the status icons that you may see on your device. Icon Description Biçimlendirilmiş Tablo Indicates the battery is fully charged. Indicates the battery is very low. Battery charging. Sound on. Sound off. Ringer in vibration mode. Connection is active.

  • Page 25: Using The Start Menu

    GSM1 GPRS AND GSM2 EDGE are both ready. GSM1 is roaming GSM2 is roaming GSM1 and GSM2 are bothroaming New e-mail or MMS. New Text Messages New IM There are more notifications. Tap the icon to view all. Indicates the device is locked. Indicates the device is unlocked.

  • Page 26: Program Indicators

    Program Indicators Following indicators are some of the icons for the programs that are already installed on your device. Icon Description ActiveSync Synchronizes information between your device and a PC. Calculator Performs basic arithmetic and calculations, such as addition, subtraction, multiplication, and division.
  • Page 27 Windows Media Enables the multimedia function on your device. WorldCard Mobile Capture and edit your Business Cards, and export Business Cards information. You must adjust the zoom button on the back of the device (indicated in the phone overview page) to select micro mode before capture.

  • Page 28: Chapter 2

    Chapter 2 Entering and Searching for Information 2.1 Introduction 2.2 Using the Keyboard 2.3 Using Letter Recognizer 2.4 Using Block Recognizer 2.5 Using Transcriber 2.6 Drawing and Writing on the Screen 2.7 Searching for Information...

  • Page 29: 2.1 Introduction

    2.1 Introduction When you start a program or select a field that requires text or numbers, the Input Panel becomes available automatically. Input Panel provides various input methods which are available on your device, including Block Recognizer, Keyboard, Letter Recognizer, and Transcriber. By default, the Input Panel icon appears on the menu bar to indicate which input method is currently selected.

  • Page 30: To Use The Standard On-Screen Keyboard

    on-screen Keyboard. To use the standard on-screen Keyboard The on-screen Keyboard is available when text entry is possible. You can enter text by tapping keys on the keyboard that is displayed on the screen. To enter text using the on-screen Keyboard In a program, tap the Input Selector arrow, and tap Keyboard.

  • Page 31: 2.5 Using Transcriber

    For help with writing characters with Block Recognizer, tap the question mark near the writing area. 2.5 Using Transcriber Transcriber is a handwriting recognition program that allows you to write in cursive, print, or a combination of both. Transcriber works transparently in the background of programs, recognizing words with its integrated dictionary.

  • Page 32: The Transcriber Toolbar

    Insert a space at the cursor. The horizontal portion of the gesture must be at least two times longer than the vertical portion. Move the cursor one space back and erase any text. Do the gesture by drawing a line from right to left. Open the alternate words menu if a word is selected or the onscreen Transcriber keyboard if no text is selected.

  • Page 33: 2.6 Drawing And Writing On The Screen

    Move the cursor one space back and erase any text. Open Transcriber Help. 2.6 Drawing and Writing on the Screen With your device, you can draw directly on the screen, or write on the screen and save notes in your own handwriting. For more information on what you can do with Notes, see ―Notes‖...

  • Page 34: Chapter 3

    Chapter 3 Using Phone Features 3.1 Using the Phone 3.2 Making a Call 3.3 Receiving a Call 3.4 In-call Options 3.5 Additional Dialing Information...

  • Page 35: Using The Phone

    3.1 Using the Phone Like a standard mobile phone, you can use your Pocket PC Phone to make, receive, and keep track of calls and send SMS/MMS messages. You can also take notes while talking, dial directly from Contacts, and easily copy SIM contacts to Contacts on the device.

  • Page 36: Making A Call

    Volume Adjustment Notes To adjust the conversation phone volume, you must do it during a call. Adjusting the volume at another time will affect the ring, notification, and MP3 sound levels. If Vibrate mode is activated, sound will be muted and the device will be vibrated automatically when an incoming call is received.

  • Page 37: To Make A Call From Contacts

    Phone Screen To delete an incorrect character, tap the Back arrow ( ), to delete all input character, hold the Back arrow. To make a call from Contacts • Tap Start > Contacts. • Tap the desired contact, and press the Talk button. •...

  • Page 38: To Make A Call From Speed Dial

    To make a call from Speed Dial Use Speed Dial to call frequently-used numbers with a single tap. Assign a phone number to one of dialing key, 2-9. For example, if you assign a contact to the location 2 in Speed Dial, you can simply tap and hold on the Phone screen to dial the contact‘s number.

  • Page 39: To Switch Between Two Calls

    Tap Answer to take the second call, and put the first one on hold. To end the second call and return to the first call, tap End or press the End button on your device. Note While one card is on talking and another card is on hold, the two cards can both not get the incoming call again.

  • Page 40: To Make An International Call

    To make an international call Tap and hold on the Phone keypad until the + sign appears. The + replaces the international prefix of the country that you are calling. Input the full phone number you want to dial, and tap Talk. The full phone number includes country code, area code (without the leading zero, if any) and phone number.

  • Page 41: Chapter 4

    Chapter 4 Synchronizing Your Device 4.1 Using ActiveSync 4.2 Synchronizing Information 4.3 Synchronizing via Bluetooth 4.4 Synchronizing Music, Video, and Pictures...

  • Page 42: Using Activesync

    4.1 Using ActiveSync ActiveSync synchronizes information on your device with information on your PC, such as Outlook content. ActiveSync can also synchronize over a wireless or cellular network with Microsoft Exchange Server, if your company or service provider is running Microsoft Exchange Server with Exchange ActiveSync. When you synchronize, ActiveSync compares the information on your device with the information on your PC and/or Exchange Server and updates all locations with the most recent information.

  • Page 43: To Synchronize Outlook Information

    When you connect your device to the PC using a USB or serial cable or a Bluetooth connection, ActiveSync will immediately synchronize. While the device is connected, ActiveSync synchronizes every time you make a change on either the PC or the device.

  • Page 44: To Synchronize Directly With Exchange Server

    To synchronize directly with Exchange Server You can set up synchronization with Exchange Server on your device, if it is available to you through your company or wireless service provider. However, you should first ask your administrator for the following information and then carry on with the steps: Exchange Server name, your user name, password, and domain name.

  • Page 45: To Change Media Synchronization Settings

    connected using Bluetooth, you must end that connection before media can be synchronized. • Insert a storage card into your device (32MB or larger is recommended). • Set up a sync partnership between the storage card and Windows Media Player. To change Media synchronization settings Once you select the Media information type in ActiveSync to be synchronized, any of your favorite music, video, and picture files in Windows Media Player playlists can be...

  • Page 46: Chapter 5

    Chapter 5 Managing Your Pocket PC Phone 5.1 Personalizing Your Pocket PC Phone 5.2 Adding and Removing Programs 5.3 Managing Memory 5.4 Backing Up Files 5.5 Protecting Your Device 5.6 Resetting Your Pocket PC Phone...

  • Page 47: Personalizing Your Pocket Pc Phone

    5.1 Personalizing Your Pocket PC Phone To customize the Today screen The Today screen shows your upcoming appointments, active tasks, and information about e-mail messages. You can customize the Today screen on your device. Tap Start > Settings > Personal tab > Today. On the Appearance tab, select the desired theme for the background of the Today screen.

  • Page 48: To Set Clock & Alarms

    You can choose which items appear in the Start menu. Tap Start > Settings > Personal tab > Menus. Select the check boxes of the items you want to appear in the Start menu. You can select up to seven items. You can also create folders and shortcuts to appear on the Start menu.

  • Page 49: To Increase Or Decrease The Size Of Text On The Screen

    Tap the button you want to reassign. To help you identify the buttons, there are numbers and icons representing the original function of the button. In the Assign a program box, tap the program or shortcut you want to assign. Tap OK.

  • Page 50: To Make The Battery Last Longer

    numbers from 0 to 9, and cannot contain spaces. Use the underscore character to separate words. The device name is very important and used to identify the device in the following situations: • Synchronizing with a PC • Connecting to a network •...

  • Page 51: Adding And Removing Programs

    • Phone tab: you can customize phone settings, such as the ring type (the way that you are notified of incoming calls), the ring tone (used for incoming calls), and the keypad tone (used when entering phone numbers). Also you can enable/disable or change the PIN.

  • Page 52: To Add Programs

    Before you purchase additional programs for your device, you should note the name of your device, the version of Windows Mobile software running on it, and the type of processor. This information will help you select a program that is compatible with your device.

  • Page 53: To Free Up Program Memory

    your device. Tap Start > Settings > System tab > Memory. Tap the Storage Card tab. If you have previously inserted more than one storage card, tap the list box and then select the storage card which you want to see. To free up program memory Try the following actions to free memory on your device: •...

  • Page 54: To Copy A File Using Activesync

    Tap Start > Programs > File Explorer and navigate to the appropriate folder. Tap and hold the file you want to copy, and tap Copy. Tap the folder list (labeled My Documents by default) and tap Storage Card. Tap Menu > Edit > Paste. To copy a file using ActiveSync Copying a file may results in separate versions of a file on your device and PC.

  • Page 55: To Protect Your Device With A Password

    To protect your device with a password You can keep your data more secure by requiring a password when the device is turned on. Tap Start > Settings > Personal tab > Lock. Select the Prompt if device unused for check box, and in the box to the right, select how long your device must be turned off before a password is required.

  • Page 56: To Perform A Soft Reset

    not performing properly. A soft reset is also necessary after the installation of some programs. If a soft reset is performed when programs are running, unsaved work will be lost. You can also perform a hard reset (also known as a full reset). A hard reset should be performed only if a normal reset does not solve a system problem.

  • Page 57: Chapter 6

    Chapter 6 Getting Connected 6.1 Connecting to the Internet 6.2 Internet Explorer Mobile 6.3 Using Bluetooth 6.4 Using Wireless Manager 6.5 Beam 6.6 Internet Sharing...

  • Page 58: Connecting To The Internet

    6.1 Connecting to the Internet Your device is equipped with powerful networking functions that enable you to connect to the Internet through a General Packet Radio Service (GPRS) network or a Bluetooth modem. The GPRS is a new non-voice value added service that allows information to be sent and received across a mobile telephone network.

  • Page 59: To Connect To A Private Network

    Notes To view additional information for any screen, tap Help. To modify connection settings, tap Manage existing connections on the Connections screen, and complete the connection wizard. Notes Tap Start > Settings > Connections tab > Network Switch and you can select by which card to connect to internet.

  • Page 60: To Add A Favorite

    To add a favorite In Internet Explorer Mobile, go to the page preferred. Tap and hold the page, and tap Add to Favorites. Confirm or change the name, and select a folder for saving the favorite. To delete a favorite or folder In Internet Explorer Mobile, tap Menu >...

  • Page 61: To Delete Temporary Internet Files

    Select the check boxes for the options desired, and tap OK. To prevent Internet Explorer Mobile from accepting any cookies, deselect the check box of Allow cookies. To delete temporary Internet files Some Web content is saved to speed up the display of pages for frequent visit and already seen or delete these files to free storage space.

  • Page 62: To Make Your Device Visible

    To make your device visible Tap Start > Settings > Connections tab > Bluetooth. Select the Turn on Bluetooth check box and the Make this device visible to other devices check box in Mode tab Tap OK. Note To Select the Make this device visible to other devices check box also turns on Bluetooth.

  • Page 63: To Delete A Bluetooth Partnership

    Tap Save. To delete a Bluetooth partnership Tap Start > Settings > Connections tab > Bluetooth. Tap and hold the partnership on the Devices tab. Tap Delete from the shortcut menu. To beam information using Bluetooth On the device, tap and hold an item to beam. The item could be an appointment in your calendar, a task, a contact card, or a file.

  • Page 64: Beam

    your device. You can easily to enable or disable them. To enter the Wireless Manager screen you can tap the icon ( ) on the Today screen. Otherwise tap Start > Settings > Connections tab > Wireless Manager. On the Wireless Manager screen •...

  • Page 65: To Start Internet Sharing

    With Internet Sharing you can use the device as a modem. If your device has a data connection plan, your PC can use the device to connect to the Internet. To start Internet Sharing Tap Start > Programs > Internet Sharing to enter Internet Sharing. You can select USB or Bluetooth PAN to set up a connection between your device and PC.

  • Page 66: Chapter 7

    Chapter 7 Exchanging Messages and Using Outlook 7.1 Text Messages 7.2 E-mail 7.3 MMS Messages 7.4 Windows Live Messenger 7.5 Calendar 7.6 Contacts 7.7 Tasks 7.8 Notes...

  • Page 67: 7.1 Text Messages

    7.1 Text Messages Text Messaging (also known as SMS) is a popular way of sending short messages to other mobile phone users To create a text message Tap Start > Messaging > Text Messages. Tap Menu > New. In the To: field, enter the mobile phone number of recipients. Insert a semicolon (;) between multiple recipients.
  • Page 68 Internet e-mail account type: POP3 and IMAP4. If you select Internet e-mail, according to the prompt fill your display name, Incoming/Outgoing mail server and so on, and at last click Finish to complete setting up your account, or tap Review all download settings to access additional settings. If you select Exchange Server, according to the prompt fill the Server address, User name or password, Domain, then enter the options screen.

  • Page 69: To Compose And Send A Message

    To compose and send a message In the message list, tap Menu > New. Enter the e-mail address of one or more recipients, separating them with a semicolon. To access addresses and phone numbers from Contacts, tap To. Enter your message. To quickly add common messages, tap Menu > My Text and tap a desired message.

  • Page 70: To Download Messages

    To download messages The manner in which you download messages depends on the type of account you have: • To send and receive e-mail for an Outlook E-mail account, begin synchronization through ActiveSync. For more information, see ―To Synchronize Outlook information‖ in Chapter 4. •...

  • Page 71: 7.3 Mms Messages

    With a POP3 account, move e-mail messages to a folder you created, the link is broken between the messages on the device and their copies on the e-mail server. When the next time you connect, the e-mail server will detect that the messages are missing from the Inbox folder on the device and delete them from the e-mail server, which prevents from having duplicate copies of a message, but also means that you will no longer have access to messages that you move to folders created from...
  • Page 72 Tap Start > Messaging > MMS. Tap Menu > New, then enter Choose a MMS tab. In To, enter the recipient‘s phone number or e-mail address directly, or tap To, Cc, or Bcc to choose a phone number or an e-mail address from Contacts. Enter a subject for your message.

  • Page 73: To Create A Mms Message From A Template

    • Tap to go to the previous slide • Tap to go to the next slide To create a MMS message from a template • Tap Menu > Template > New from Template to compose a message using a pre-made template. Note To save a message as a template, open the message and tap Menu >...

  • Page 74: To Set Advanced Options For A Mms Message

    To set advanced options for a MMS message • Edit a new MMS and tap Menu > Options > Background to choose a background color from the list. • Tap Menu > Options > Text Layout…, you can select Text above, Text below, Text on the left or Text on the right to align the included text.

  • Page 75: 7.4 Windows Live Messenger

    retrieve messages while your device is roaming. • Save sent messages. Select this option to save a copy of sent messages. • Allow read report. Select this option to send and receive read reports. • Disconnect network connection after MMS. Select this option to. Disconnect the network connection after receive MMS completely.

  • Page 76: To Sign In Or Out

    Windows Live Messenger screen To sign in or out sign in, tap on Windows Live Messenger screen to select the status and then tap Sign in. Signing in to Messenger will add your Windows Live contacts to your phone‘s address book. Following the Windows Live setup: •...

  • Page 77: To Add Or Delete Contacts

    Messenger list screen Note Signing in may take several minutes which depends on your connection speed. Tap Start > Programs > Windows Live, you can enter Windows Live screen. Tap ―Sign in to Windows Live‖ and you can also sign in Windows Live Messenger just as the setup above.

  • Page 78: To Change Your Messenger Status

    • To unblock a contact, tap Menu > Contact options > Block contact. To change your Messenger status On the Messenger list screen tap Menu > Change status and you can select any of the status: Online, Busy, Be right back, Away, In a call, Out to lunch and Appear offline.

  • Page 79: To Schedule An Appointment

    your PC, you can synchronize appointments between your device and PC. You can also set Calendar to remind you of appointments with a sound or flashing light, for example. You can look at your appointments in several different views (Day, Week, Month, Year, and Agenda).

  • Page 80: To Create A Contact

    you communicate with. Use contacts to store phone numbers, e-mail addresses, home addresses, and any other information that relates to a contact, such as a birthday or an anniversary date, besides also add a picture or assign a ring tone to a contact.

  • Page 81: 7.7 Tasks

    category assigned to a contact. To show all contacts again, select All Contacts. 7.7 Tasks Use Tasks to keep track of things you need to do. A task can occur once or repeatedly (recurring). You can set reminders for your tasks and organize them using categories.

  • Page 82: 7.8 Notes

    Tap Start > Programs > Tasks. In the task list, do one of the following: • Sort the list. Tap Menu > Sort by, and tap a sort option. • Filter the list by category. Tap Menu > Filter, and tap the category desired to display.

  • Page 83: To Record A Voice Note

    A selection box appears around your drawing. Tap OK to return to the note list if finished. Drawing on the Screen Note Tap and hold the drawing briefly to select a drawing. When you lift the stylus, the drawing is selected. To record a voice note You can create a stand-alone recording (voice note) or you can add a recording to a note.
  • Page 84 Tap the Options tab, select the format you want in the Voice recording format list. Tap OK. Note Recording formats can also be changed within Notes. In the note list, tap Menu > Options > Global Input Options link (at the bottom of the page) >...

  • Page 85: Chapter 8

    Chapter 8 Experiencing Multimedia 8.1 Using the Camera 8.2 Using Pictures & Videos 8.3 Using Windows Media Player...

  • Page 86: 8.1 Using The Camera

    8.1 Using the Camera Your Pocket PC is equipped with a digital camera that can record both still pictures and moving images. View Screen To launch the Camera • Tap Start > Programs > Camera; or • Press Camera button on the side of your device. Note The view screen is only in the landscape mode.

  • Page 87: To Use Video Capture Mode

    Mode: Tap to set the camera mode (Capture or Video). This is a capture mode. Environment: Tap to select the different settings for the color correction of the camera to give the best result for the current light. Picture Size: Indicate the picture size. Setting: Tap to enter the setting screen.
  • Page 88 The tool icons on the setting screen of the video mode are as follows: Only three icons are different from the tool icons of the capture mode. 11 12 Capture Mode: Display the capture mode (Capture or Video). Shutter: Capture a picture in a valid time (5s, or 10s, or 15s, or Off). Burst: Takes a sequence of pictures in a row (9, or 18, or Off).

  • Page 89: Micro Mode

    review the images you have captured. About: Tap to see the version information of the camera. Video Mode: Display the video mode. Video Length: Tap to set the length of the video (5s, or 10s, or 15s, or unlimited). Audio: Tap to select the audio on or off while capturing video. Micro Mode You can adjust the zoom button on the back of the device (indicated in the phone view page) to allow you to choose between Micro mode for close-up shots &...

  • Page 90: To View Pictures

    • Copy the pictures from PC or a storage card to the My Pictures folder on your device. For more information about copying files, see ActiveSync Help on your Note You can also copy pictures from PC to your device using a memory card. Insert the memory card into the memory card slot on your device, and then copy the pictures from PC to the folder you created on the memory card.

  • Page 91: To Sort Pictures And Video Clips

    show. Tap Menu > Options, then tap Portrait Pictures or Landscape Pictures on the Slide Show tab. Tap anywhere on the screen to display the Slide Show toolbar, which you can use to stop or pause the slide show, rotate the view, and more. Press Navigation right or left to move forward or backward through the slides.

  • Page 92: To Beam A Picture

    First, set up Messaging to send and receive messages. From the program, select the item desired to send. Tap Menu > Send, and select one account (such as Outlook E-mail or MMS) to send the attached item. A new message is created with the item attached. Enter the recipient name and subject, and tap Send.

  • Page 93: About The Controls

    • MP3 *.mp3 • MIDI *.mid, *.midi, *.rmi • AMR Narrow Band *.amr About the controls The following are available controls on the Windows Media Player. This control Does this This control Does this Play a file. Increase the volume level. Pause a file.

  • Page 94: Now Playing Screen Menu

    Shuffle/ Repeat Play the items in the Now Playing playlist randomly/ repeatedly. Full Screen Play a video full screen. Adjust various Windows Media Player options, including Playback, Video, Options Network, Library, skin, and hardware buttons. Properties Display the information about the currently playing file. Display the information about Windows Media Player, such as the version About number.

  • Page 95: To Play Items On Your Device

    synchronizing files to your device and other mobile devices, see desktop Player Help. Note You can view the protection status for a file by checking its file properties (tapping Menu > Properties). To play items on your device Use the library to find and play songs, videos, and playlists stored on your device or removable storage card.

  • Page 96: Accessibility For People With Disabilities

    Accessibility for people with disabilities Microsoft is committed to making its products and services easier for everyone to use. Many accessibility features have been built into Microsoft products, including features for individuals who have difficulty typing or using a mouse, who are blind or have low vision, or who are deaf or hard-of-hearing.

  • Page 97: Chapter 9

    Chapter 9 Using Other Applications 9.1 Using Office Mobile 9.2 Using Java 9.3 Contact Manager...

  • Page 98: 9.1 Using Office Mobile

    9.1 Using Office Mobile Tap Start > Office Mobile to enter the Office Mobile which contains Word Mobile, Excel Mobile and PowerPoint Mobile. Note Office Mobile does not fully support some features of Microsoft Word. So there are unsupported content types such as background for the Word Mobile, cell comments for the Excel Mobile, editing slides for the PowerPoint Mobile.

  • Page 99: To Start A Slide Show Presentation

    Many presentation elements built into the slide shows such as slide transitions and animations will play back on the device. If the presentation is set up as a timed slide show, one slide will advance to the next automatically. To start a slide show presentation Tap Start >...

  • Page 100: To Install Midlets From A Pc

    Note You can cancel the installation at any time. To install MIDlets from a PC You can install the MIDlets/MIDlet suites on your device from a PC using the USB sync cable, the optional cradle, or Bluetooth. MIDlets copied to your device using Bluetooth, or e-mail attachments are automatically saved in the My Documents folder.

  • Page 101: To Manage Midlets

    Tap Start > Java. The Java Apps screen appears. Select a MIDlet from the list by using the Navigation pad. Press the Action button of the navigation pad to run the MIDlet. To manage MIDlets You can create a folder and put MIDlets into it. To change the name of a MIDlet Start >...

  • Page 102: 9.3 Contact Manager

    9.3 Contact Manager Contact Manager enables you to copy your contacts‘ information among SIM1, SIM2 and phone. Tap Start > Programs > Contact Manager to enter into the Contact Manager screen. From the Contact Manager screen you can select SIM1 icon, or SIM2 icon, or Phone icon to enter contact screen.

  • Page 103: Appendix

    Appendix A.1 Regulatory Notices A.2 PC Requirement to Run ActiveSync A.3 Troubleshooting A.4 Specifications...

  • Page 104: A.1 Regulatory Notices

    A.1 Regulatory Notices Regulatory Agency IDs For regulatory identification purposes, your product is assigned a model number of Tandem. To ensure continued reliable and safe operation of your device, use only the accessories listed in this document. This product is intended for use with a certified Class 2 Limited Power Source, rated 4.2 Volts DC, maximum 1 Amp power supply unit.

  • Page 105: Safety Precautions For Power Supply Unit

    mounting of the product should follow the manufacturer‘s instructions, and should use a mounting accessory recommended by the manufacturer. • Avoid unstable mounting Do not place the product with an unstable base. • Use product with approved equipment This product should be used only with personal computers and options identified as suitable for use with your equipment.

  • Page 106: A.2 Pc Requirement To Run Activesync

    must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources.

  • Page 107: Power & Battery

    Power & Battery Problem Solutions • Soft reset the device with the Stylus. I can not turn on my • Connect your device to the AC adapter and check LED indicator device. whether device is charging. Possibly the battery is drained off. Your device is designed by default to turn itself off if not used for 2 My device keeps turning minutes.

  • Page 108: Operating

    • Make sure you have set up and connected to an Internet Service Provider. I can not connect to the • Make sure the wireless connection to your mobile Service Provider is internet; surfing switched on, and that the signal is unobstructed. doesn’t work.

  • Page 109: Phone

    What type of • extension files can Video formats supported: *.wmv, *.asf, *.mp4, *.avi. • Windows Media Audio formats supported: *.wma, *.mp3, *.wav, *.midi, *amr. Player play? Phone Problem Solutions • You may not locate in network coverage area. Move to coverage My device can not dial area and try again •...
  • Page 110 Internal Antenna Camera Module Type 2-mega-piexel CMOS Resolution Max 1600X1200 Physical Dimensions 117mm (L) x 61mm (W) x 16.4mm (T) Weight 144.2g (with battery) Controls and Lights -5-way Navigation pad: Left, Right, Up, Down, Action. -One program buttons : Camera - Three phone functions : G1 button, G2 button and End button -Left Soft Key / Right Soft Key Navigation Buttons...

Table of Contents
