Connections

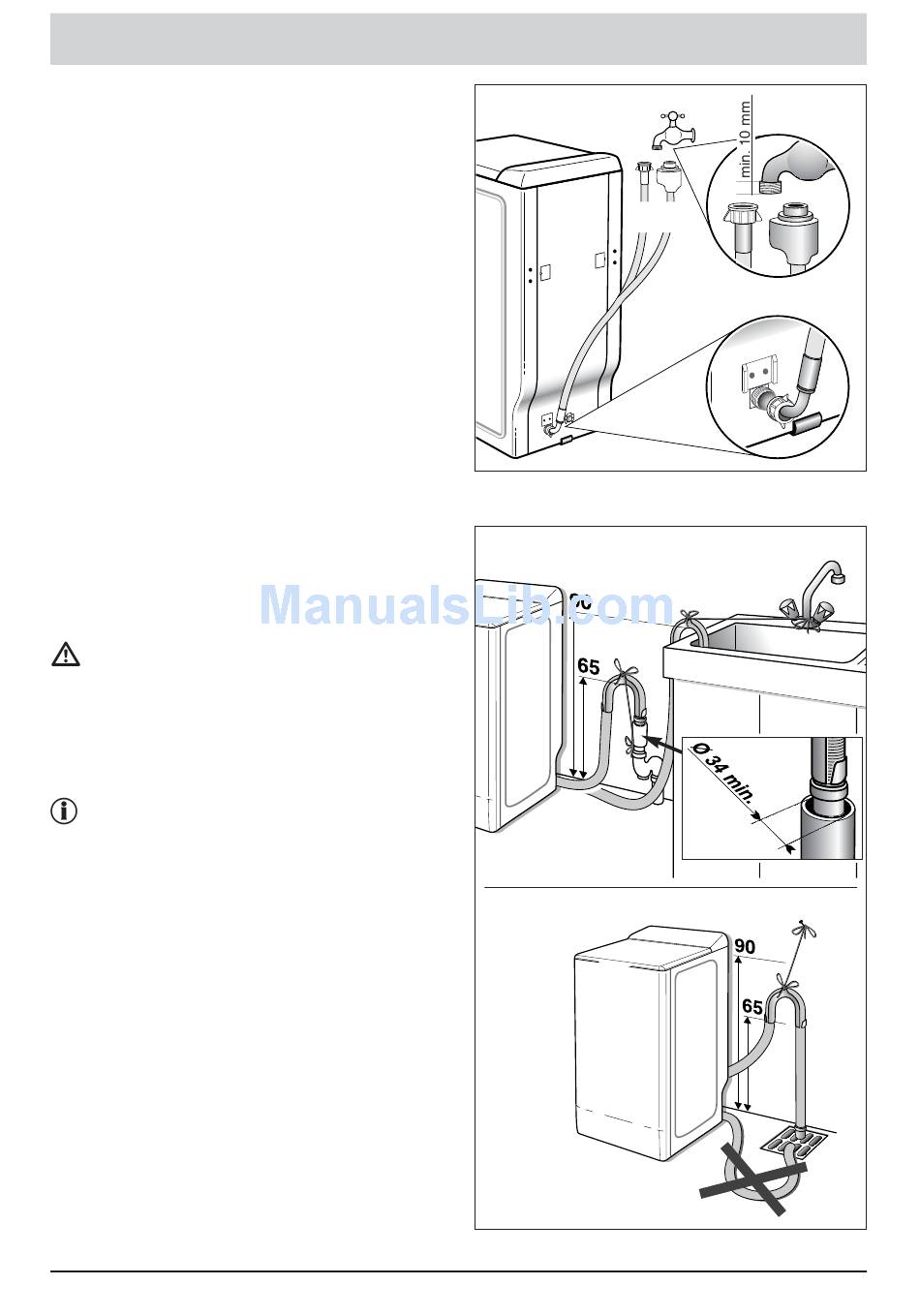

Cold water supply
Depending upon the model, connect the
water inlet hose with or without the
AQUASTOP HOSE (Figure 6) .
- Minimum water pressure: 0.1 MPa or 1 bar
- Maximum water pressure: 1 MPa or 10 bar
Drain
Mount drain hose with the supplied elbow;
connect to a vented drain (Figure 7.1 / 7.2) .
The elbow must be between 65 and 90 cm
above the floor.
Secure drain hose against slipping off.
Replacing the water inlet hose
After replacement, check to ensure connections
are tight and that there are seals on both ends.
Regularly check the condition of the water
inlet and drain hose. Replace damaged
hoses only with original equipment hoses.
These are available through Customer
Service.
Figure 6
Figure 7.1
Figure 7.2
8
3/4"
or
