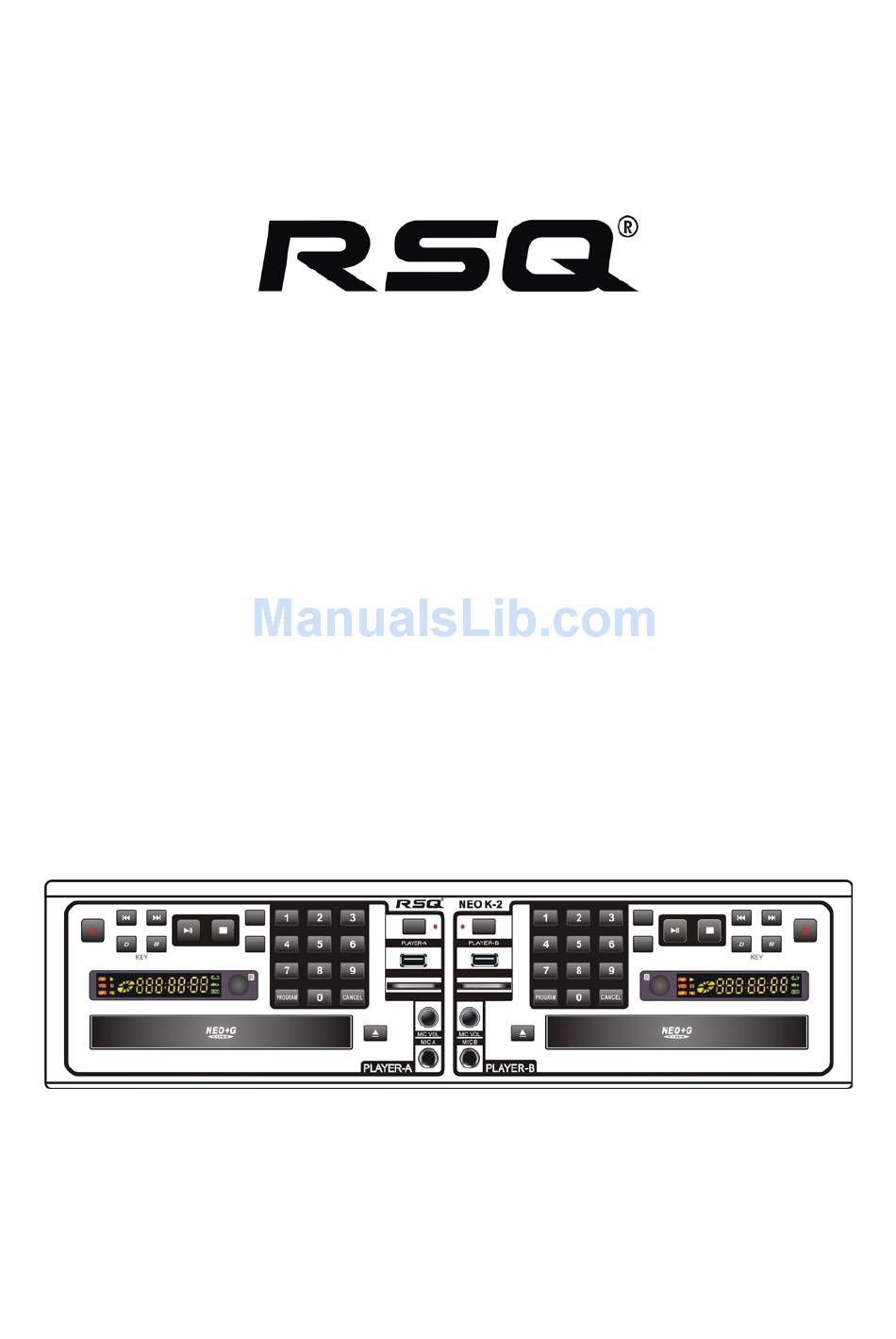

- Page 1 NEO K-2 Dual Deck Multi Format Karaoke Player with Ripping & Recoding Function USER’S MANUAL...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT This player is classified as a CLASS 1 LASER product. LUOKAN 1 LASER LAITE KLASS 1 LASER APRARAT Use of controls, adjustments or performance of PRODUCTO LASER CLASE1 procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Precautions
Precautions Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base(furniture), with enough space around it for ventilation(7.5~10cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. -
Page 4: Table Of Contents
DESCRIPTION Front panel --------------------------------------------------------------------------------------------------------------------4 Rear Panel-----------------------------------------------------------------------------------------------------------------------5 Remote Control----------------------------------------------------------------------------------------------------------------6 CONNECTIONS Connecting to the Power Supply-----------------------------------------------------------------------------------------7 Connecting the NEO K-2 with TV/Monitor and Amplifier/Receiver---------------------------------------------------7 Connecting with Microphone------------------------------------------------------------------------------------------------8 Connecting with SD Card or USB devices--------------------------------------------------------------------------------8 OPERATION Basic Operation---------------------------------------------------------------------------------------------------------------9 Special Operation-------------------------------------------------------------------------------------------------------------11 NEO+G Karaoke Operation-------------------------------------------------------------------------------------------------12 ... -
Page 5: Description
Description Front Panel POWER: Press POWER button to power the NEO K-2 on or off. KEY (b/#): Use these buttons to adjust the b/# key of music PREVIOUS/ NEXT: Use these buttons to skip to the next or previous track PLAY/PAUSE: Press this button to play or pause the current track or song. -
Page 6: Rear Panel
Description Rear Panel 5.1CH ANALOG AUDIO OUT: These jacks are for connecting to 5.1CH ready Amplifier/Receiver. 2CH AUDIO OUT: These jack for connecting to 2CH(Left/Right) ready Amplifier/Receiver COAXIAL (DIGITAL AUDIO) OUT: This digital audio output is for connecting devices with a coaxial cable. COMPOSITE VIDEO OUT: This jack outputs the individual Video to a TV/Monitor S-VIDEO OUT: This jack output the individual S-Video to a TV/Monitor via S-Video Cable(not provided) COMPONENT VIDEO OUT (Y, Pb, Pr): These jack output Video to a TV/Monitor via an Component(Y,Pb,Pr) -
Page 7: Remote Control
Description Remote Control Button NEO+G/ MP3+G Karaoke POWER Open/close the Loader Tray EJECT Select REMOTE-A to control PLAYER-A with remote REMOTE A control Select REMOTE-B to control PLAYER-B with remote REMOTE B control Select PLAYER-A to play through the mixed A/V PLAYER-A OUTPUT jack on the rear panel Select PLAYER-B to play through the mixed A/V... -
Page 8: Connections
Press the Power Switch ON in the rear panel of the Player to make Standby Mode. Press the Power button on the Front panel or Remote Control to switch the NEO K-2 Player on. The present product can be used under the AC 100~240V~. 50/60Hz <NOTE>... -
Page 9: Connecting With Microphone
Connections Connecting with Microphones MIC A: Connect the MIC A to the Mic input jack of the PLAYER-A to sing with PLAYER-A only and adjust the Mic volume level. MIC B: Connect the MIC B to PLAYER-B to sing with PLAYER-B only and adjust the Mic volume level. -
Page 10: Basic Operation
Basic Operation Basic Operation (DVD/VCD/AUDIO CD/JPEG) Turn On/Off the power of the Player. POWER: REMOTE-A Press “REMOTE-A” to operate the PLAYER-A only with remote control REMOTE-B Press “REMOTE-B” to operate the PLAYER-B only with remote control PLAYER-A Press “PLAYER-A” to play PLAYER-A through the mixed A/V OUTPUT jack on the rear panel Press “PLAYER-B”... - Page 11 Basic Operation Press ARROW keys to navigate the File/Folder ARROW (▲▼◀▶): ENTER: Press ENTER key to confirm the desired menu. RETURN: Press RETURN key to return to previous level of the Menu. Press MENU key to the disc menu mode on the screen. MENU (DVD/MPEG4): Press ARROW buttons or NUMERIC buttons (0~9) to select a play option and press ENTER button...
-
Page 12: Special Operation
Special Operation Special MPEG4 Operation DivX 4.x, 5.x, XviD, DivX Pro(Excluding QPEL and GMC) SUPPORTED VIDEO FORMATS: <NOTE> Bit rate may fluctuate; Device may skip encoding the high bit rate portions and begin decoding again when Bit rate returns to normal. Maximum bit rate: 4Mbps.720*480 @30fps, 720*576 @25fps ... -
Page 13: Neo+G Karaoke Operation
NEO+G Karaoke Operation Insert a Karaoke Disc(NEO+G/MP3+G) into the Tray of the player. PLAYING NEO+G DISC: Select a desired song with “SONG NUMBER INPUT” or with “SONG LIST MENU” Press PLAY/PAUSE or ENTER button to start playback. ... - Page 14 NEO+G Karaoke Operation You can record your singing sound & graphics with Neo+G & MP3+G songs into USB/SD at RECORDING OF SINGING: MP3+G format. ① Please connect a USB/SD Card and Microphone into the Player in advance and play a NEO+G (NEO+G, MP3+G) or MP3+G song from Disc or USB/SD.
- Page 15 NEO+G Karaoke Operation You can rip the CD+G Disc with High speed (4X) into USB/SD at MP3+G format including Music CD+G DISC RIPPING and Graphics. ① After connect a USB/SD Card into the Player in advance, insert a CD+G Disc to the player. ②...
-
Page 16: System Setup System Setup
System Setup System Setup TV System The TV setup is for switching to different TV system (NTSC, PAL60, PAL and AUTO). *If you don’t know which TV system you have, just select AUTO. Turn the screen saver ON and OFF. SCREEN SAVER: HDTV Output: If the disc is HD, select the corresponding HD resolution(HD OFF/ 720P / 1080i / 1080P). -
Page 17: Video Setup
System Setup Video Setup BRIGHTNESS: Set the brightness of the video from range 0-12. CONTRAST: Set the contrast of the video from range 0-12 Set the hue of the video. +color to increase red color, -color to increase green color. HUE: SATURATION: Set the degree of the saturation of the video. -
Page 18: Trouble Shooting
Trouble Shooting Symptom Remedy No power Insert the AC power plug securely into the power outlet and press “Power” button on the front panel. Play fails to start even when PLAY is Condensation has formed: wait about 1 to 2 hours to allow the player to dry out. pressed. -
Page 19: Specification
Specification Supported Media: DVD, VCD, SVCD, MPEG4, DivX, Xvid, HDCD, Audio CD, DVD+R/RW, CD+R/RW, MP3, WMA, OGG and JPEG. Video Format: NEO+G, MP3+G, CD+G, MPEG1(*.dat, *.mpg), MPEG2(*.vob), MPEG4, Supported Format DivX, XviD(*.avi), JPG Audio Format: PCM, Dolby Digital AC3, DTS, MP3, WMA and OGG ...
