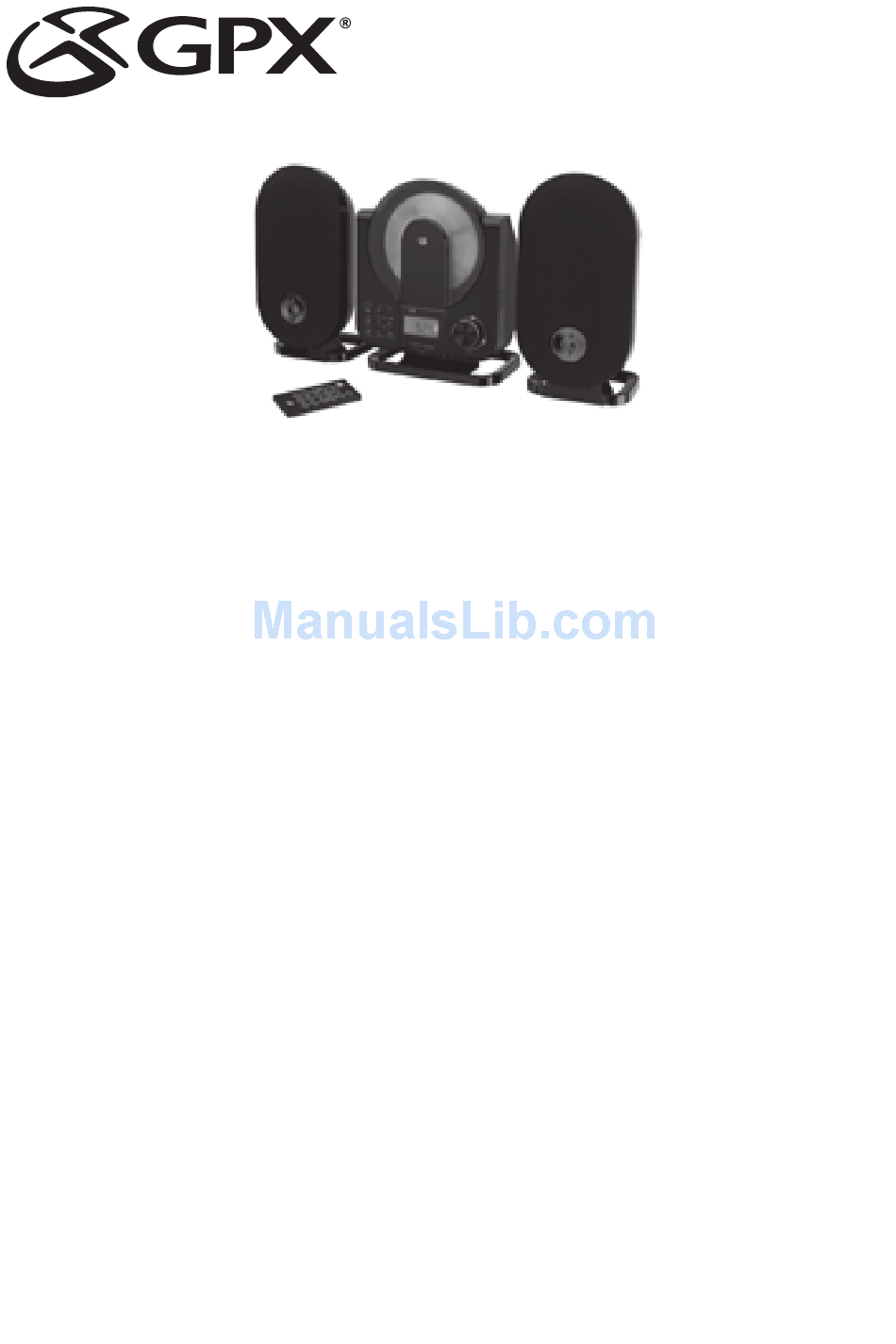

HC208B

INSTRUCTION MANUAL

Contents
Warnings & Precautions ................................................................................... 2
Important Safety Instructions............................................................................ 3
In the Box & Features....................................................................................... 4
Powering the Unit & Mounting the Unit to a Wall.............................................. 5
Connecting the Speaker ................................................................................... 6
Setting the Clock & Using the Sleep Timer....................................................... 7
Tuning the AM/FM ............................................................................................ 8
Radio & Playing a CD....................................................................................... 9
Programming a CD......................................................................................... 10
Using the Line Input.........................................................................................11
Controls & Definitions ................................................................................ 12-15
Service Information......................................................................................... 16

Advertisement

Table of Contents
loading

Related Manuals for GPX HC208B

Summary of Contents for GPX HC208B

  • Page 1: Table Of Contents

    HC208B INSTRUCTION MANUAL Contents Warnings & Precautions ... 2 Important Safety Instructions... 3 In the Box & Features... 4 Powering the Unit & Mounting the Unit to a Wall... 5 Connecting the Speaker ... 6 Setting the Clock & Using the Sleep Timer... 7 Tuning the AM/FM ...

  • Page 2: Warnings & Precautions

    Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3: Important Safety Instructions

    Important Safety Instructions 1. Read Instructions - All the safety and operating instruction should be read before the product is operated. . Retain Instructions - The safety and operating instruction should be retained for future reference. . Heed Warnings - All warning on the product and in the operating instructions should be adhered to.

  • Page 4: In The Box & Features

    In the Box • HC08B • Remote Control • Documentation Features • Vertical-Load Disc Player • Plays CD/CD-R/CD-RW Audio Tracks • AM/FM Radio with Digital Readout • Digital Volume Control • Blue Backlit LCD Display • Digital Clock • Full-Range Stereo Speakers Changing the Remote Battery WARNING: Danger of explosion if the remote control’s batteries are incorrectly installed.

  • Page 5: Powering The Unit & Mounting The Unit To A Wall

    Powering the Unit The unit is powered by connecting the attached AC Cord to a standard AC Outlet (10V~60Hz) Mounting the Unit to a Wall 1. Remove the table stand from the unit by pulling the tabs, located on the bottom of the unit and speakers, away from and towards the back of the unit.

  • Page 6: Connecting The Speaker

    Connecting the Speakers 1. The plug attached to the Right Speaker is red, and the plug for the Left Speaker is white. . These plug colors correspond with the Speaker Output on the bottom of the unit. . Plug the red plug, from the Right Speaker, into the red Speaker Output, and plug the white plug, from the Left Speaker, into the white Speaker Output.

  • Page 7: Setting The Clock & Using The Sleep Timer

    Setting the Clock STANDBY SLEEP 1. Power the unit off by pressing the Standby Button. SKIP/SEARCH PROG . Press and hold the CLK Set Button. The hour will begin to blink, indicat- ing that it can be edited. MODE . Press the Skip/Search Buttons to adjust the hour.

  • Page 8: Tuning The Am/Fm

    Tuning the AM/FM Radio STANDBY SLEEP 1. Power the unit on by pressing the Standby Button. SKIP/SEARCH PROG . Press the Function Button to switch the unit to AM/FM Radio Mode. An “AM” or “FM” will appear in MODE the LCD display to indicate AM/FM Radio Mode.

  • Page 9: Radio & Playing A Cd

    Playing a CD 1. Power the unit on by pressing the Standby Button. . Open the CD Door using the semi-cir- cular notch on the top of the unit, and insert a CD or CD-R/RW. Close the CD Door. . Press the Function Button to switch to CD Mode.

  • Page 10: Programming A Cd

    Programming a CD 1. Power the unit off by pressing the Standby Button. . Load a CD, and switch to CD Mode. (See Playing a CD on page 7) . Press the Program Button. Two numbers will appear on the LCD display. The number on the left represents the program track number and the number on the right represents the CD track number.

  • Page 11: Using The Line Input

    Using the Line Input When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Plug one end of a .5 mm Cable (not included) or a .5 mm - RCA Cable (not included) into the Line Input on the unit.

  • Page 12: Controls & Definitions

    Controls POWER SLEEP PROG SKIP/SEARCH MODE HR/MIN FUNCTION /BAND DISPLAY PROG RAND INTRO REP SLEEP MUTE /CLK SET VOLUME TUNING...
  • Page 13 Definitions Line Input Use the Line Input to connect the unit to an MP Player or other audio source. Skip/Search/HR/MIN/DN/UP Buttons Press the Skip/Search/HR/MIN/DN/UP Buttons to skip or search through CD tracks or to adjust the hour and minute when setting the clock. Display Button Press the Display Button to switch between the current function and clock on the LCD display.
  • Page 14 Controls...
  • Page 15 Definitions 15 Standby Button Press the Standby Button to turn the unit off and on. 16 Display Button Press the Display Button to switch between the current function and the time on the LCD display. 17 Play/Pause/CLK Set Button Press the Play/Pause Button to play and pause a CD. Press and hold the CLK Set Button to adjust the clock.

  • Page 16: Service Information

    007 DPI, Inc. All trademarks appearing herein are the property of their respective owners. All products subject to change without notice. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayu- da en www.gpx.com. Pour télécharger manuel d’instruction en anglais, espagnol,...
