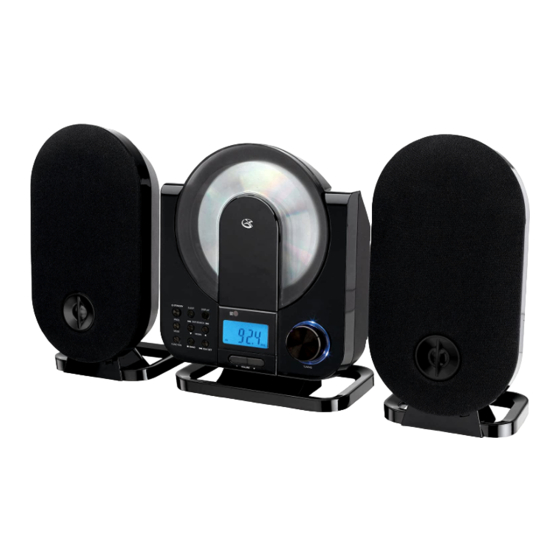

Home music system with cd player
Hide thumbs Also See for HC208B:
Table of Contents

Advertisement

Quick Links

Download this manual

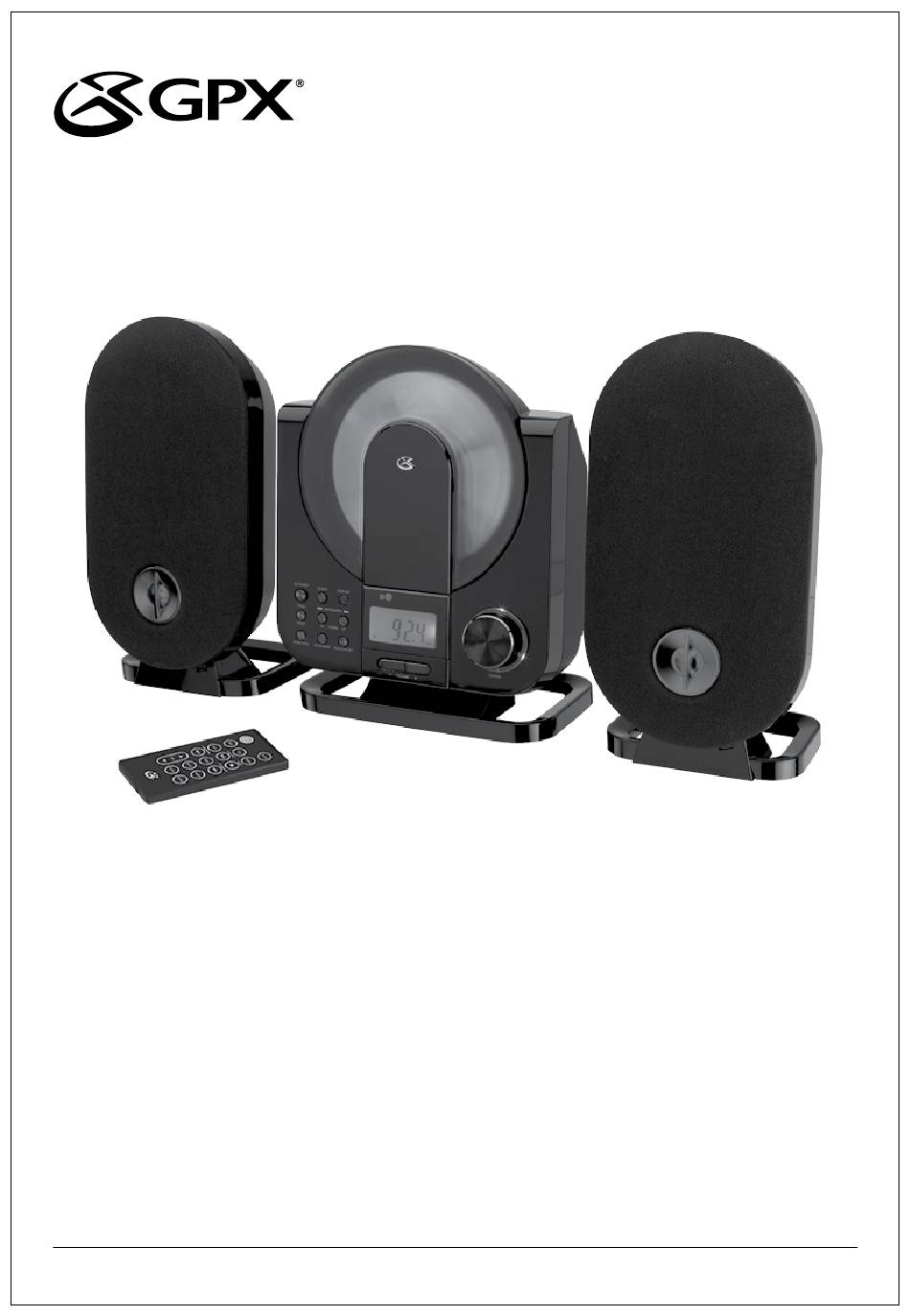

USER'S GUIDE
V:2242-0607-10
HC208B
Home Music System with CD Player
For the most up-to-date version of this User's Guide, go to www.gpx.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC208B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GPX HC208B

Summary of Contents for GPX HC208B

  • Page 1 USER’S GUIDE V:2242-0607-10 HC208B Home Music System with CD Player For the most up-to-date version of this User’s Guide, go to www.gpx.com...

  • Page 2: Warnings And Precautions

    Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, • WARNING: Lithium batteries, like all rechargeable MATCH WIDE BLADE OF PLUG TO WIDE SLOT, batteries are recyclable and should be recycled or dis- FULLY INSERT. posed of in normal household waste. Contact your local government for disposal or recycling practices in your • WARNING: To reduce the risk of fire or electric shock, area.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read these Instructions. Keep these Instructions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Heed all Warnings. FCC Rules. These limits are designed to provide reasonable protec- Follow all instructions.

  • Page 4: Changing The Remote Battery

    In the Box • HC208B • Remote Control • Documentation Features • Vertical-Load Disc Player • Stereo Line-In Jack for other Audio • Plays CD/CD-R/CD-RW Audio Player, 3.5mm type Tracks • Remote Control • AM/FM Radio with Digital Readout • AC-Power: Built-in AC Line Cord •...

  • Page 5: Powering The Unit

    Powering the Unit The unit is powered by connecting the attached AC Cord to a standard AC Outlet (120V~60Hz) (120V~60Hz) Mounting the Unit to a Wall 1. Remove the table stand from the unit by pulling the tabs, located on the bottom of the unit and speakers, away from and towards the back of the unit.

  • Page 6: Connecting The Speakers

    Connecting the Speakers 1. The plug attached to the Right Speaker is red, and the plug for the Left Speaker is white. 2. These plug colors correspond with the speaker Output on the bottom of the unit. 3. Plug the red plug, from the Right Speaker, into the red speaker Output, and plug the white plug, from the Left Speaker, into the white speaker Output.

  • Page 7: Setting The Clock

    Setting the Clock STANDBY SLEEP DISPLAY 1. Power the unit off by pressing the Power Button. SKIP/SEARCH PROG 2. Press and hold the CLK set Button. The hour will begin to blink, indicat- ing that it can be edited. MODE HR/MIN 3. Press the skip/search Buttons to adjust the hour.

  • Page 8: Tuning The Am/Fm Radio

    Tuning the AM/FM Radio STANDBY SLEEP DISPLAY 1. Power the unit on by pressing the Power Button. SKIP/SEARCH PROG 2. Press the Function Button to switch the unit to AM/FM Radio Mode. An “AM” or “FM” will appear in MODE HR/MIN the LCD display to indicate AM/FM Radio Mode.
  • Page 9 Playing a CD 1. Power the unit on by pressing the Power Button. 2. Open the CD Door using the semi-cir- cular notch on the top of the unit, and insert a CD or CD-R/RW. Close the CD Door. 3. Press the Function Button to switch to CD Mode.
  • Page 10 Programming a CD 1. Power the unit on by pressing the Power Button. 2. Load a CD, and switch to CD Mode. (See Playing a CD on page 9) 3. Press the Program Button. Two numbers will appear on the LCD display. The number on the left represents the program track number and the number on the right represents the CD track number.

  • Page 11: Using The Line Input

    Using the Line Input When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Plug one end of a 3.5 mm Cable (not included) or a 3.5 mm - RCA Cable (not included) into the Line Input on the unit.
  • Page 12 Controls POWER SLEEP DISPLAY PROG RAND INTRO REP SLEEP PROG SKIP/SEARCH MUTE MODE HR/MIN FUNCTION /BAND /CLK SET TUNING VOLUME...
  • Page 13 Definitions 1 Line Input Use the Line Input to connect the unit to an MP3 Player or other audio source. 2 skip/search/HR/mIN/DN/UP Buttons Press the Skip/Search/HR/MIN/DN/UP Buttons to skip or search through CD tracks or to adjust the hour and minute when setting the clock. 3 Display Button Press the Display Button to switch between the current function and clock on the LCD display.
  • Page 14 Controls...
  • Page 15 Definitions 15 Power Button Press the Power Button to turn the unit off and on. 16 Display Button Press the Display Button to switch between the current function and the time on the LCD display. 17 Play/Pause/CLK set Button Press the Play/Pause Button to play and pause a CD. Press and hold the CLK Set Button to adjust the clock.

  • Page 16: International Support

    Para transferir esta guía de usuario en in- glés, español, o francés, visite la sección de la ayuda en www.gpx.com. Pour télécharger ce guide de l’utilisateur en anglais, espagnol, ou français, visitez la section de soutien chez www.gpx. com. Contact Information Phone: 1-888-999-4215 Email: prodinfo@gpx.com Parts Email: partsinfo@dpi-global.com...
