Audi A4 Cabriolet
Audi S4 Cabriolet
Quick reference
guide
Dear Audi Driver,
This quick reference guide gives you a brief introduction
to the main features and controls of your vehicle.
However, it cannot replace the Owner's Manual which
contains important information and safety warnings.
We wish you safe and enjoyable motoring
with your Audi.
AUDI AG
Locking and unlocking the vehicle
The central locking system locks and unlocks all the
doors, the boot lid and the tank flap. It can be
operated with the remote control or by
4
turning the key in the lock.
3
2
1
Remote control keys
Press the appropriate button for about 1 second.
e
Unlocking button: Open one of the doors within
about 60 seconds, otherwise the vehicle will lock itself
again automatically.
r
Unlocking button for boot lid:
Press the button for at least 1 second.
t
Locking button: The turn signals flash once to
confirm that the doors and boot lid are properly
closed and locked.
u
Folding out the master key:
Press the release button.
Folding in the master key:
Press the button and fold in the key.
Variable soft top storage box
The storage box can be raised in order to extend the luggage compartment.
To raise the storage box: Slide the operating lever to position A.
To lower the storage box: Slide the operating lever to position B.
Note: The lever for raising/lowering the variable soft top storage
box can only be operated when the soft top is closed.
Page 1
Convenience features
Opening windows with remote control key: To open
e
the windows first press button
and then turn the
key to the right in the driver's door lock and hold it in
this position (applies to RHD vehicles).
Closing windows with remote control key:
Turn the key to the left in the driver's door lock and
hold it in this position (applies to RHD vehicles).
Opening/closing soft top with remote control key:
e
To open, press button
and briefly turn the key to
the right in the driver's door lock. Then, within 2
seconds, turn the key to the right again and hold it in
this position (RHD vehicles). To close, briefly turn the
key to the left in the driver's door lock. Then, within
2 seconds, turn the key to the left again and hold it
in this position (RHD vehicles).
Anti-theft alarm
The alarm system is automatically set when you lock
the car, and switched off when you unlock the car
with the remote control. If you unlock the vehicle by
inserting the key in the driver's door, the ignition
must be switched on within 15 seconds, otherwise
the alarm will be triggered.
WARNING!
The doors and windows cannot be opened from
inside the vehicle if it has been locked from the
outside.
B
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A4 Cabriolet and is the answer not in the manual?

Questions and answers

Summary of Contents for Audi A4 Cabriolet

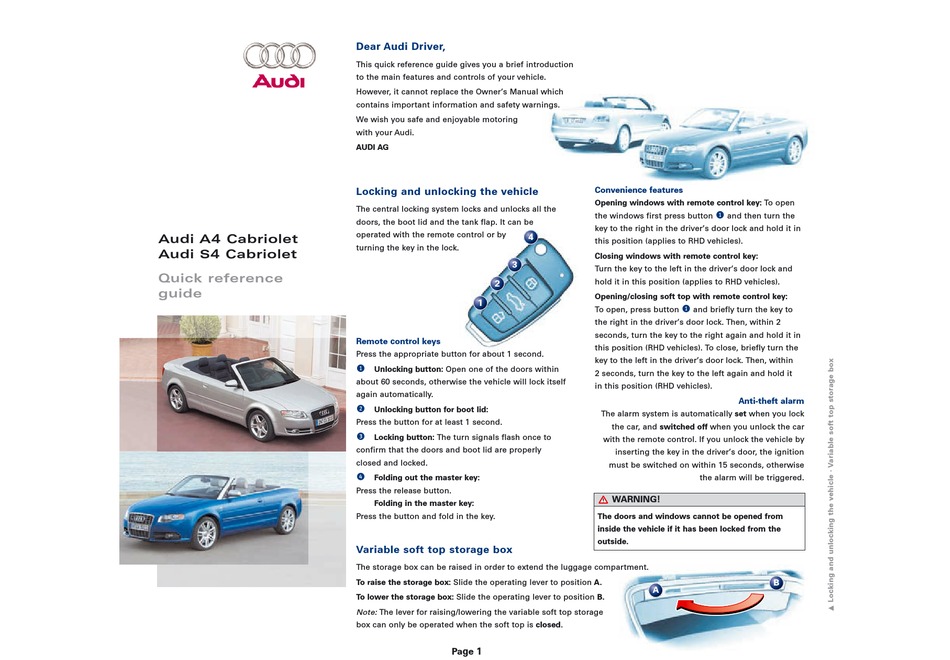

  • Page 1: Quick Reference Guide

    It can be key to the right in the driver’s door lock and hold it in operated with the remote control or by Audi A4 Cabriolet this position (applies to RHD vehicles). turning the key in the lock.
  • Page 2: Adjusting Front Seats

    Never store or secure any WARNING! objects in the area behind the rear head restraints. Please follow the instructions in the Owner's Manual supplied with your Audi and read the instructions Adjusting front seats provided by the child seat manufacturer. Manual adjustment...
  • Page 3: Instruments

    Fuel grade © 2007 AUDI AG AUDI AG reserves the right to alter any part of the vehicle, its equipment and technical The correct fuel grade for your vehicle specifications. No legal commitment can be implied by the information, illustrations or is shown on the inside of the tank flap.
  • Page 4: Warning And Indicator Lamps

    25 ...Thumbwheel for seat heating 36 ...Memory buttons for driver's seat daytime running lights (front left seat) Please read Owner’s Manual. Further information for these items is given on the following pages. Audi A4/S4 Cabriolet Kurzanleitung englisch 5.07 281.562.684.20 Page 4...
  • Page 5 [21] Switches for air conditioner Automatic mode (set the desired temperature for the driver and passenger and press the corresponding button) Air recirculation (circulates and filters the air in the interior of the vehicle) ECON mode (deactivates air cooling) Temperature selection (driver’s side/front passenger’s side) Automatic air recirculation Blower speed Air flow settings...
  • Page 6 [7] Lever for turn signals and main beam headlights [11] Control lever for windscreen wipers/washer Right turn signals (with ignition off: right parking light on) and on-board computer Left turn signals (with ignition off: left parking light on) Wipers off Main beam headlights Brief wipe Headlight flasher...
