Page 1: User Manual

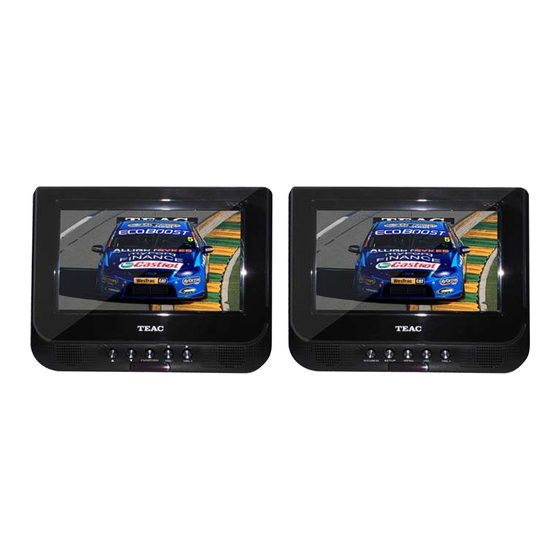

DVP383T PORTABLE DVD PLAYER USER MANUAL IMPORTANT ! WARRANTY INFORMATION INSIDE. PLEASE READ www.teac.com.au Trademark of TEAC Corporation JAPAN... - Page 2 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
- Page 3 Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in- home service can be made available at a fee upon request.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Information Safety Precautions Some Do‟s and Don‟ts On The Safe Use Of Equipment USB Usage Precautions Introduction Features Accessory List Supported Disc Formats Disc Care Panel and Remote Operation Panel Controls Side Panel Overview Remote Control Battery Installation Basic Operation Using the AC Adaptor... -
Page 5: Safety Information
SAFETY INFORMATION Safety Precautions Power Lead Protection Important Safety Instructions... - Page 6 SAFETY INFORMATION 4. Ventilation – The product should be used in a well-ventilated area to avoid overheating. The product should not be placed on the bed or sofa. 5. Servicing – Do not attempt to service this product yourself as opening or removing the cover may expose you to dangerous voltage or other hazards.
- Page 7 SAFETY INFORMATION Some Do’s and Don’ts on the Safe Use of Equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
-
Page 8: Usb Usage Precautions
SAFETY INFORMATION USB Usage Precautions Never turn the unit off or disconnect a USB Storage Device (Flash Drive) when it is being accessed. Doing so could damage the unit and the connected USB storage device. Do not use a device that has a maximum current consumption of 100 mA or more. ... -
Page 9: Introduction
INTRODUCTION Thank you for choosing TEAC. Please retain this user manual for future reference. If any assistance is needed, please contact our Customer Support Hotline at 1300 553 315. Features High resolution colour TFT LCD full screen display Super electronic shock resistance (3 seconds for DVD, 10 seconds for CD/VCD... -
Page 10: Supported Disc Formats
INTRODUCTION Supported Disc Formats Disc Type Content Size Audio + Video 12cm/8cm Video DVD Audio + Video 12cm/8cm DVDR/RW Audio + Video 12cm/8cm Video CD/ Super VCD Audio 12cm/8cm Audio CD Video (Photo) 12cm/8cm JPEG Video (Photo) 12cm/8cm Picture CD Audio + Video 12cm/8cm CDR/RW... -
Page 11: Panel And Remote Operation
PANEL AND REMOTE OPERATION Panel Controls setup menu vol- dvd/usb/sd 1 2 3 function vol- 6 7 8 9 10 Button Function Press to cycle through the following modes: DVD>USB>SD DVD/USB/SD Press to show the DVD setup menu SETUP In DVD/USB/CARD Mode, press to show the menu for the MENU TFT display In AV In Mode, press to enter menu setup... -
Page 12: Side Panel Overview
PANEL AND REMOTE OPERATION Button Function Able to move the cursor up Able to move the cursor down DOWN Press to show the dvd setup menu FUNCTION Decrease volume level VOL-/LEFT Able to move the cursor left Increase volume level VOL+/RIGHT Able to move the cursor right Side Panel Overview... -
Page 13: Remote Control
PANEL AND REMOTE OPERATION Remote Control STANDBY: Turns unit on or back to Standby DVD/SD/USB: Press to cycle through DVD>SD>USB Modes DISPLAY: Display/hide detailed information about the current played media MUTE: Turn sound on/off 1-10+: Number buttons for numerical input. For numbers 10 and above, use the 10+ button Please see next page for... -
Page 14: Battery Installation
PANEL AND REMOTE OPERATION TITLE: Press to return to disc title menu in DVD mode RETURN: Return to previous menu. CD RIPPING/SUBTITLE: In DVD Mode, press to select from available subtitles. During audio CD playback, press to enter CD Ripping Mode. REPEAT: Press repeatedly to cycle through available repeat modes A-B: Use to loop a specific section of the track. -
Page 15: Basic Operation
BASIC OPERATION Using the AC Adaptor Connect the unit to a wall power outlet using the provided AC adaptor. CAUTION: Turn off the unit before unplugging the AC adaptor to avoid damaging the unit. Make sure the power supply is turned off before making or changing any cable connections. Insert the AC adaptor into the DC IN jack on the unit. -
Page 16: External System Connection
BASIC OPERATION External System Connection Connect to external output devices like TVs, amplifiers or headphones. Ensure that the settings Connecting to TV and Stereo Amplifier Mini-plug: Connect to the AUDIO/VIDEO OUT jack of the portable DVD player. Yellow plug: Connect to the VIDEO IN jack of the TV. ... -
Page 17: Usb/Card Multimedia Playback
BASIC OPERATION If there is no disc loaded in the unit, it will auto-detect the memory card and start to read and playback compatible media files. Otherwise, press the DVD/USB/SD button to switch to CARD input. NOTE: If another USB stick/memory card is already inserted, the unit will not auto-detect the second USB/CARD memory device. -
Page 18: Cd Ripping
BASIC OPERATION Stop: Press the button to stop playback. Previous/Next track: Tap the / buttons for previous/next file. direction buttons: Rotate the current picture. Note: Some picture CDs may have design limitations that make this feature unavailable. ZOOM: Press the ZOOM button on the remote control. 100% will display on the screen. Press /... - Page 19 BASIC OPERATION Ripping Music CDs Start in DVD Mode. Load an Audio CD. Connect a compatible USB flash drive. Press the CD RIPPING button to access the conversion function. Adjust the available options to your preference (described below). a. SPEED: ripping speed 1x or 4x b.
-
Page 20: Dvd Mode Setup
BASIC OPERATION DVD Mode Setup Press the SETUP button to show this menu. Adjust system and playback settings for this unit using the Setup Menu. The Setup Menu is divided into tabs showing submenus with options for different features. General Setup Option Description/Settings Set screen aspect ratios (4:3, 16:9 etc) - Page 21 BASIC OPERATION Dolby Digital Setup Option Description/Settings Dual Mono Adjust Dual Mono/Dynamic audio settings Dynamic Adjust dynamic range compression Video Setup Option Description/Settings Brightness Set the brightness level. Contrast Set the contrast level. Saturation Set the saturation level.
- Page 22 BASIC OPERATION DVD Preference Setup Option Description/Settings Pal, NTSC, AUTO TV Type Set a preferred track language to activate if the disc has the Audio Language corresponding track language available Set a preferred subtitle language to activate if the disc has the Subtitle corresponding subtitle language available Language...
-
Page 23: Reference
REFERENCE Troubleshooting If you encounter problems using the DVD player, please refer to the table below for problem- solving measures. If problems persist, please contact the Customer Support Hotline . Turn off the DVD player immediately if you suspect a malfunction. Unplug the power plug and check whether the DVD player is unusually warm and if it is emitting smoke. -
Page 24: Specifications
REFERENCE Specifications Item Specification Power supply AC100~240V Input DC12V/1.5A Output Power Consumption Input DVD player (supported formats: DVD R/RW, CDR/RW, VCD, Audio CD, JPEG) AV 3.5mm input jack USB 2.0 (supports USB drive max 32 GB, HDD max 500 GB, max 999 files and 250 folders, max file/folder name length of 12 letters) SD/MMC/MS Card (supports up to 32 GB) Output... - Page 25 TEAC CUSTOMER SUPPORT HOTLINE (TCS) 1300 553 315 Between Monday to Friday – AEST 8.30AM to 6PM...
