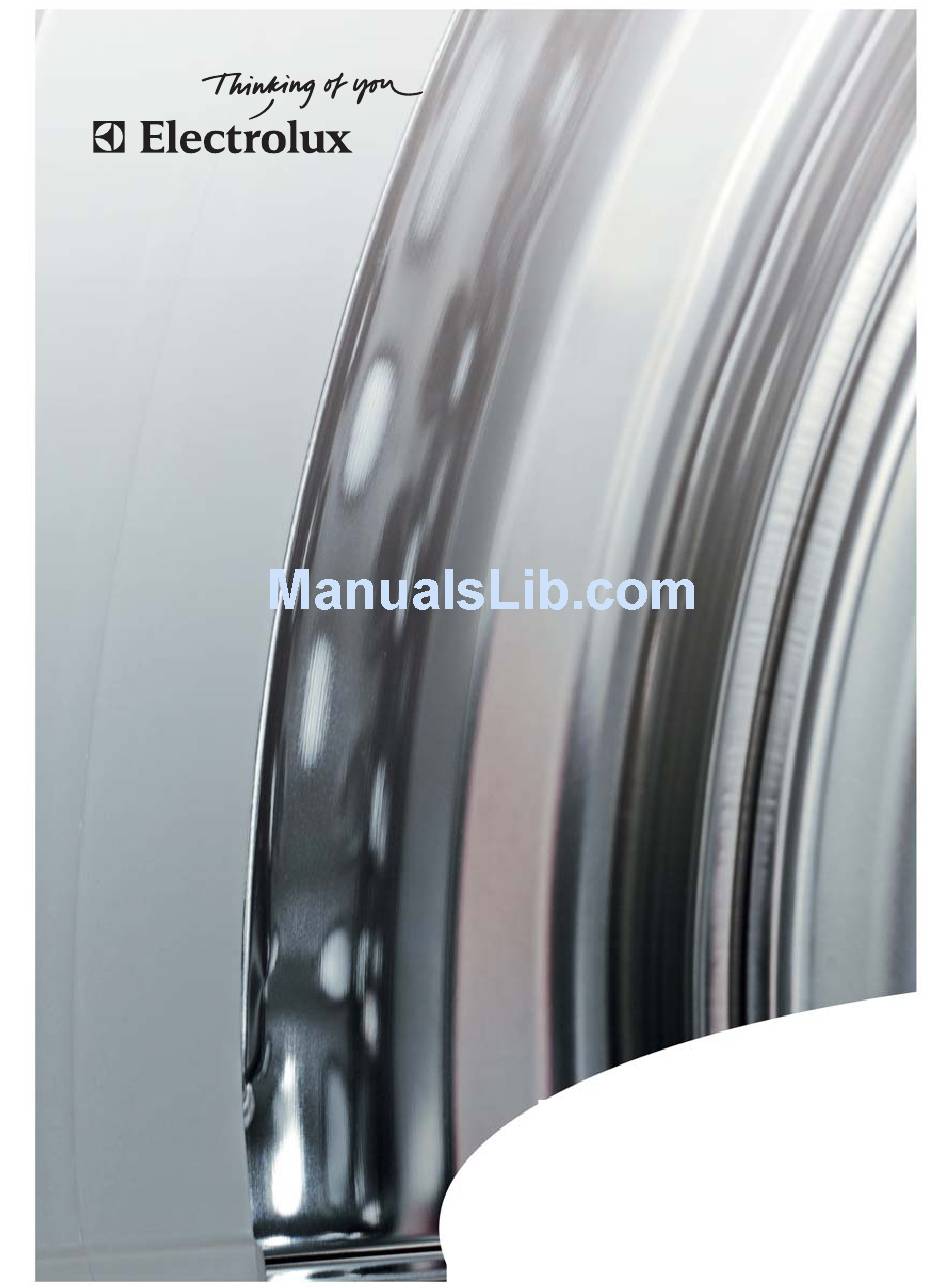

- Page 1 Manual de uso User manual Lavadora Washing Machine EWF 10160 W...
-
Page 3: Table Of Contents
38 electrolux contents Contents Safety information......39 Product description ......41 Control panel ........42 Use..........43 Washing hints ........49 International wash code symbol ..52 Washing programme ....53-54 Programme information ....55 Care and cleaning ......56 Something not working....59 Technical data .........63 Consumption values ......64 Installation ........65... -
Page 4: Safety Information
39 Wash small items such as socks, Safety Information laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum. - Page 5 40 electrolux safety information If the appliance is installed in a Never use the washing machine if location subject to frost, please read the power supply cable, the control the “dangers of freezing”chapter. panel, the working surface or the base are damaged so that the inside...
-
Page 6: Product Description
41 Product description Your new appliance meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The ECO valve system allows total use of detergent and reduces water consumption so saving energy. -
Page 7: Control Panel
42 electrolux control panel Control panel Programme selector dial Temperature selector dial Spin reduction button Time Expert button AquaCare button Start/Pause button Programme progress display Delay Start button... -
Page 8: Use
43 Measure out the detergent and the fabric softener Pull out the dispenser drawer until it First Use stops. Measure out the amount of detergent required, pour it into the main wash compartment and, if you wish to carry out the Ensure that the electrical and water “prewash”... - Page 9 44 electrolux use Select the required programme Select the required temperature Turn the programme selector dial to the Turn the temperature selector dial to required programme. select the washing temperature. The green Start/Pause light starts to Maximum temperatures are 90°C for flash.
- Page 10 45 Press the Spin button repeatedly to Select the Daily (diario), Quick (rápido) or Extra Quick (super) change the spin speed, if you want your laundry to be spun at a speed different options from the one proposed by the washing This function allows you to modify the machine.
-
Page 11: Synthetics
46 electrolux use The washing time will be reduced Select the Start/Pause according to the type of fabric and the selected temperature as shown in the chart. Cottons Basic Daily Quick Super temp. mins. mins. mins. mins. 90° 60° 40°... - Page 12 47 This button makes it possible to delay Programme progress display the starting of the washing programme by 3, 6, or 9 hours. Lavado You must select this option after you have set the programme and before you press the Start/Pause button.
- Page 13 48 electrolux use Interrupting a programme To empty out the water please read the steps on the Rinse Hold option Depress the “start pause” button to paragraph. interrupt a programme which is running, the corresponding light starts to flash. Turn the programme selector dial to Depress the button again to restart the “O”...
-
Page 14: Washing Hints
49 Rub particularly soiled areas with a Washing hints special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Sorting the laundry Maximum loads Follow the wash code symbols on each Recommended loads are indicated in garment label and the manufacturer’s... - Page 15 50 electrolux washing hints Blood: treat fresh stains with cold water. Detergents and additives For dried stains, soak overnight in water Good washing results also depend on with a special detergent then rub in the the choice of detergent and use of the soap and water.
- Page 16 51 Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Quantity of detergent to be used The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.
-
Page 17: International Wash Code Symbol
52 electrolux International wash code symbol... -
Page 18: Washing Programme
53 Washing programmes Programme/ Description of Type of laundry Options Temperature programme White and Main wash from 90°C Spin red. coloureds cotton: (cold) Daily, Quick, Super e.g. sheets, Cottons 3 rinses tablecloths, household Long spin linen. White and Main wash from 90°C... -
Page 19: Delicates
54 electrolux washing programmes Washing programmes Programme/ Description of Type of laundry Options Temperature programme Main wash from 40°C Spin red. (cold) Delicate fabrics, for Daily, Quick, Super Delicates example curtains 3 rinses Short spin Specially tested Main wash from 40°C... -
Page 20: Programme Information
55 Programme information Washing programme for machine washable wool well as for hand washable woollens and delicate fabrics with the “hand washing” care symbol The wool wash cycle of this machine has been approved Wool and by Woolmark for the washing of machine washable... -
Page 21: Care And Cleaning
56 electrolux care and cleaning Cleaning the dispenser drawer Care and cleaning The washing powder and additive dispenser drawer should be cleaned regularly. Remove the drawer by pressing the You must DISCONNECT the appliance catch downwards and by pulling it out. - Page 22 57 • Remove any objects from the pump Cleaning the pump impeller by rotating it. The pump should be inspected if • the machine does not empty and/or spin • the machine makes an unusual noise during draining due to objects such as safety pins, coins etc.
- Page 23 58 electrolux care and cleaning Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is Important! empty. When replacing the cover, ensure Every time you drain the water through it is securely retightened so as to stop...
-
Page 24: Something Not Working
59 Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. - Page 25 60 electrolux something not working Malfunction Possible cause Solution The machine does not The drain hose is squashed Check the drain hose empty and/or does not spin: or kinked. (Red Start/ connection. Pause pilot light flashes) The drain pump is clogged.
- Page 26 61 Malfunction Possible cause Solution The machine vibrates or is The transit bolts and Check the correct noisy: packing have not been installation of the appliance. removed. The support feet have not Check the correct levelling been adjusted.
- Page 27 62 electrolux something not working If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.
-
Page 28: Technical Data
63 Technical data Dimensions Width 60 cm Height 85 cm Depth 62,5 cm Electrical connection Voltage Information on the electrical connection is given on - Overall power - Fuse the rating plate on the inner edge of the appliance... -
Page 29: Consumption Values
64 electrolux consumption value Consumption values Programme Programme Energy Water duration consumption consumption (in minutes) (in kWh) (in litres) Cottons Cottons Eco (*) 1.02 Cottons+Prewash 1.02 Cottons Eco+Prewash 0.55 Synthetics 0.45 Synthetics +Prewash 0.55 Easy Iron 0.23 Delicates 0.25 Wool 0.25... -
Page 30: Installation
65 Installation Transit security bars Before starting the machine up, the transport security bars must be AL009 removed as follows: 3. Carefully remove the plastic bags on You are advised to keep all the transport the left and the right, pulling them to security bars. - Page 31 66 electrolux installation Hydraulic connection There should be a COLD WATER tap near the washing machine with a screwing on connection pipe of 3/4 gas for the water supply, a sink, a wash basin or a drainage system in the wall.
- Page 32 67 IMPORTANT: Levelling The distance from the floor to the Level the appliance by loosening or highest part of the hose should be tightening the feet. Once in the right between 60 to 90 cm. (It is advised to position fix the feet by pushing the nuts be between 60 and 70 cm).
- Page 33 68 electrolux installation Electrical connection This machine is designed to operate on a 230 V, single-phase, 50 Hz supply. Check that your domestic electrical installation can take the maximum load required (2.1 kW), also taking into account any other appliances in use.
-
Page 34: Environment Concerns
69 Ecological hints Environment concerns Packaging materials To save water, energy and to help protect the environment, we recommend that you follow these tips: The materials marked with the symbol • Normally soiled laundry may be are recyclable. -
Page 35: Guarantee Conditions
70 electrolux guarantee conditions European guarantee This appliance is guaranteed by Electrolux, in each of the countries listed in the following page, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of these... -
Page 36: Customer Service Centres
Suomi +35 8 26 22 33 00 Konepajanranta 4, 28100 Pori Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm Türkiye +90 21 22 93 10 25 Tarlaba caddesi no : 35 Taksim Istanbul Россия... - Page 39 35.293.041/1...
