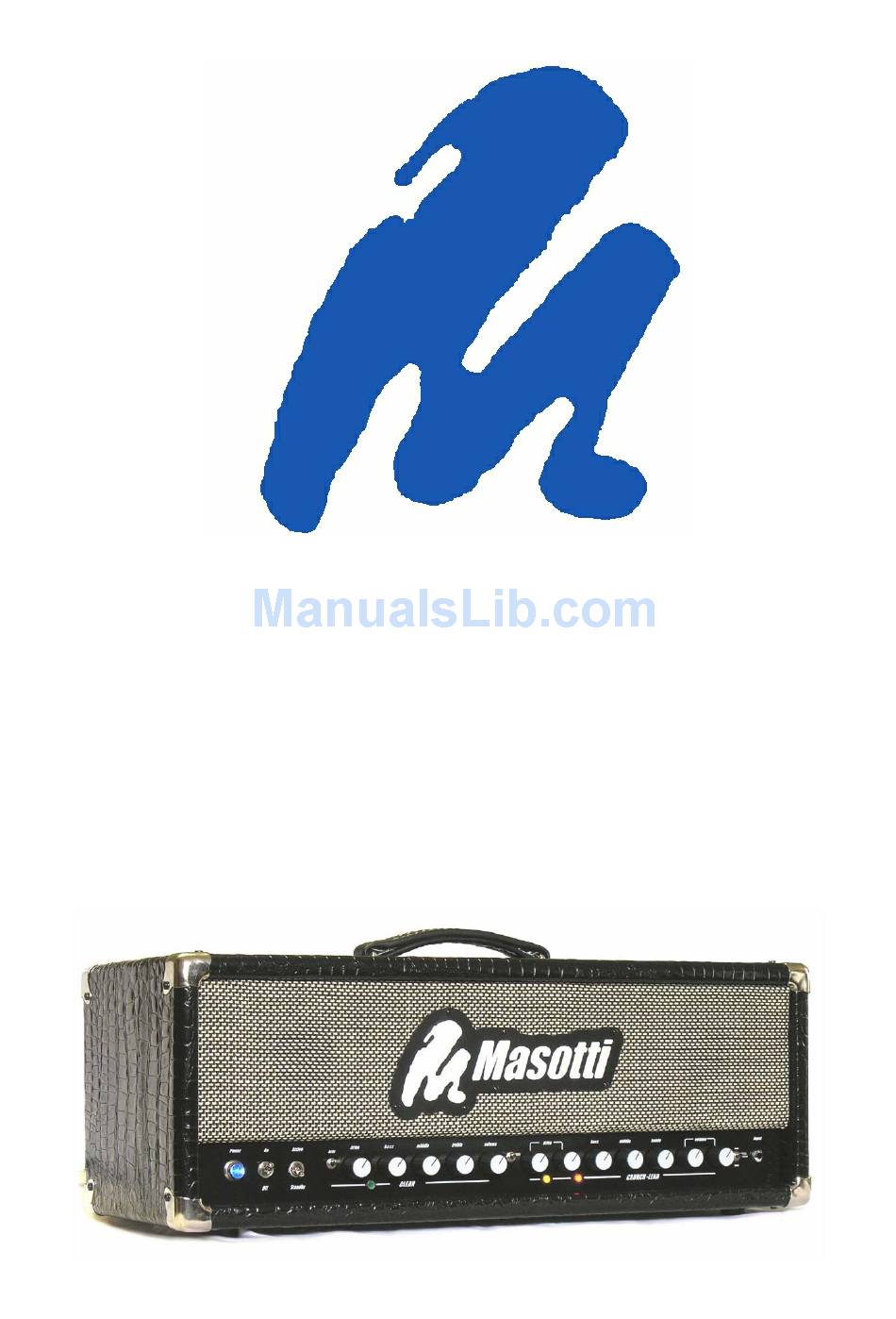

X100M User manual
X100M1.1ENG
Masotti Guitar Devices
X100M
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X100M and is the answer not in the manual?

Questions and answers

Related Manuals for Masotti X100M

Summary of Contents for Masotti X100M

  • Page 1 1/13 X100M User manual X100M1.1ENG Masotti Guitar Devices X100M User manual...
  • Page 2 2/13 X100M User manual X100M1.1ENG Welcome to Masotti Guitar Devices world and thank you for your choice. Our challenge is to bring new ideas in guitar amplification, exploring new techniques and adopting the "no compromise" philosophy. IMPORTANT BEFORE SWITCH THE AMPLIFIER ON , READ CAREFULLY THE...

  • Page 3: Table Of Contents

    X100M1.1ENG Index General description ..........................4 Front panel............................4 Rear panel............................5 Top ..............................6 Switch ON your X100M !........................6 Channel selection..........................7 MIDI programming..........................7 MIDI pedalboard phantom power supply (optional)...............8 Startup sound setups........................8 Use, maintenance and periodic checks..................10 Tube replacement and bias set.

  • Page 4: General Description

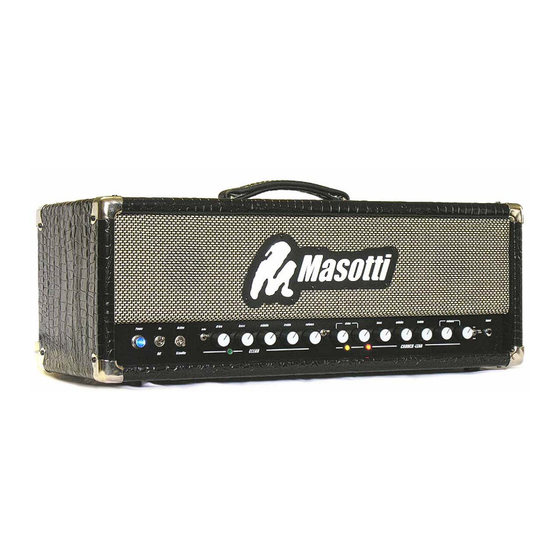

    X100M1.1ENG General description X100M is a "no compromise" guitar head, with all tubes 100W of nominal power. It has seven 12Ax7 and can be equipped with four final tubes choosing between E34L, 6L6 and KT66. Preamp section derives directly from X3M and gives thre bas sounds: clean, crunch and lead.

  • Page 5: Rear Panel

    4 ohm out and another in 8 ohm out). Total power capability of the speakers must be more than 150W rms Please check the impedance and the power of your speaker before connect it to X100M. Direct out can be connected to a mixer.

  • Page 6: Top

    (see further for some start-point setups) and explore all the possibilities of X100M sound also by acting on the rear pots. Note: if X100M wakes up in crunch mode (MIDI enable), front and rear switches are disabled and channel will be crunch until a valid Program change will be received.

  • Page 7: Channel Selection

    OFF. Channel selection. If X100M wakes up in LEAD position, it's possibile to select the channel by front switch and/or dedicated footswitch XFC (see next picture). XFC is enabled by leaving the front selector in CRUNCH position. Loop can be activated by the rear switch or by the fourth stomp on XFC.

  • Page 8: Midi Pedalboard Phantom Power Supply (Optional)

    X100M1.1ENG MIDI pedalboard phantom power supply (optional). MIDI pedalboard can be supplied directly by X100M through a MIDI 5 or 7 poles cable. Its' recommended to check the correct polarity of your pedalboard before connecting. This function is a free of charge optional and it must be set on factory. Please, contact MGD before delivery for correct wiring of the connector.
  • Page 9 9/13 X100M User manual X100M1.1ENG drive bass middle treble volume brite Warm Blues CLEAN drive bass middle treble volume Brit Blues CRUNCH drive bass middle treble volume Australian Rock’n’Roll CRUNCH drive bass middle treble volume Guerrilla CRUNCH drive bass middle...

  • Page 10: Use, Maintenance And Periodic Checks

    X100M has been projected keeping in mind a very diffused needs, that is to have a fully satisfying sound also at low levels.

  • Page 11: Troubleshooting

    If it is blown again, contact MGD or qualified personnel for maintenance. At the switch ON, all leds blink for a moment and then they are lit OFF. X100M has been switched ON in MIDI program mode with channel selector on CLEAN position.

  • Page 12: Warranty

    Versions and customisations X100M is available in two main versions, Modern and Classic, different for sound but identical for controls and general circuitry. It is possible to customise a lot of functions and sound aspects (MIDI switched dual master, parallel loop etc.) , so you can contact us for explain your needs.

  • Page 13: Technical Specifications

    • Never use X100M without rear protection grid. • Use only proper jacks and plugs in the sockets of the amplifier. • Don't espose X100M to excessive vibrations during the funcitoning. • After a storage at very low temperature, if you will play in a wet/humid warm ambient please wait for at least 30-40 minutes before switch the amplifier ON.
