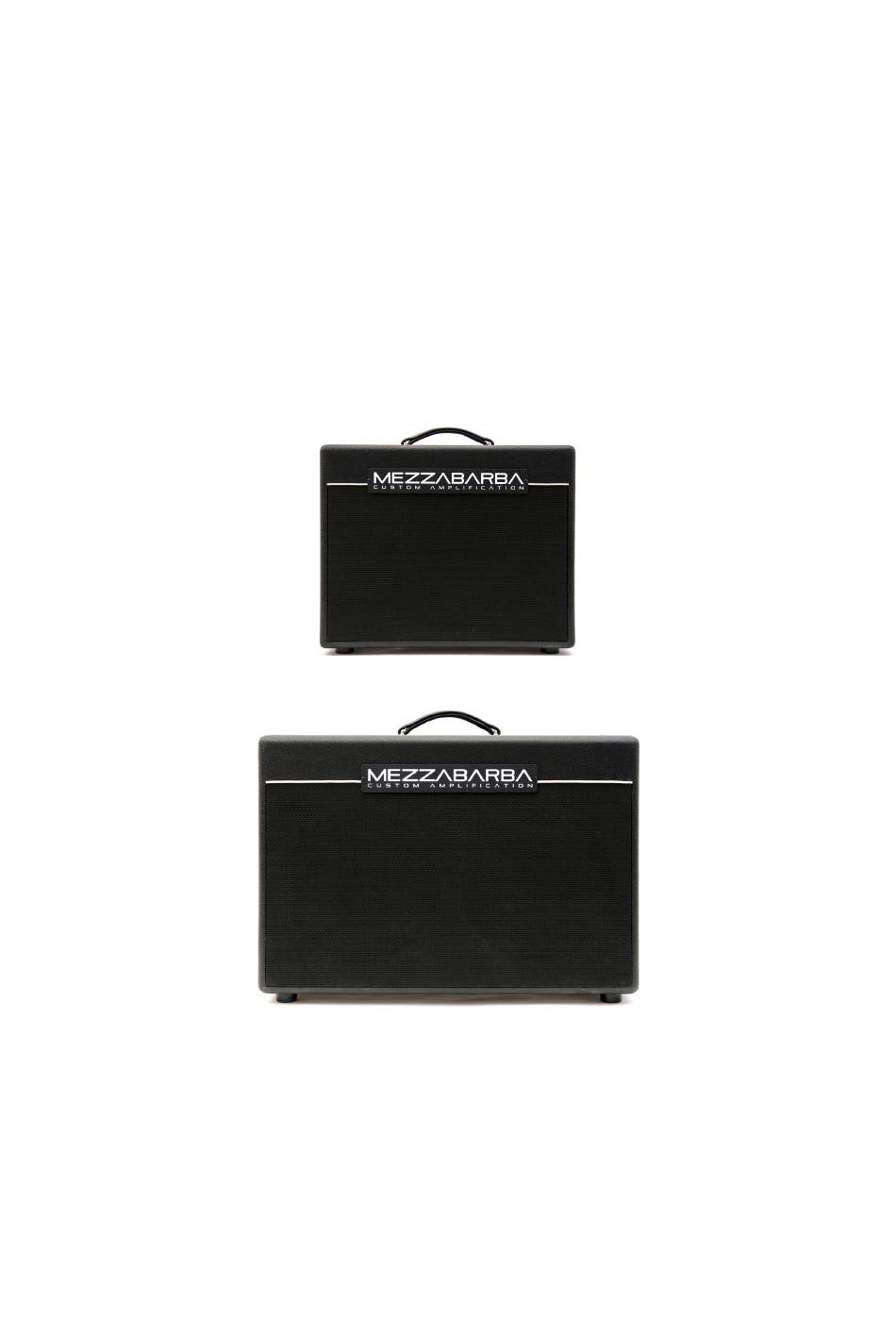

- Page 1 Z35 User Manual Z35 cOMBO v2.0 ENG Mezzabarba c u s t o m m p l i f i c a t i o n Z35 Combo User manual...
-
Page 2: Front Panel
Z35 User Manual Z35 cOMBO v2.0 ENG Front panel From left to right: a) Guitar input jack. b) Volume control -these allow for gain management in the preamp section. c) Equalizer section: Bass, Mid, Treble. d) Brill control (Presence). e) Slave Out, ideal for tri-amping or re-amping (optional) f) Stand-by/Active switch g) Master power switch h) Mains fuse... - Page 3 Z35 User Manual Z35 cOMBO v2.0 ENG IMPORTANT: Do not connect two speakers to inputs with different impedance values (e.g. one to the 4 ohm input and the other one to the 8 ohm input) Turning on your Z35 IMPORTANT: Before turning on the amp, make sure the power cable is intact and has a ground connection, the electrical system you are plugging into is properly grounded, and the impedance of the speaker is equal to that of the output jack to which it is connected.
- Page 4 Warning: the afore-mentioned checks mush be carried out solely by qualified MGD (Masotti Guitar Devices) personnel and/or authorized technicians. Before scheduling any such check, please contact MGD for full advise.
-
Page 5: Troubleshooting
Warning: replacement of tubes and internal fuses, adjustment of the bias and any other operation inside the Z35 must be carried out by qualified MGD (Masotti Guitar Devices) personnel and/or authorized technicians, while the amp is powered off and has been completely disconnected from a power source for at... -
Page 6: Warranty
The use of non-authorized Mezzabarba tubes and replacement parts may void this warranty. Mezzabarba reserves the right to make any design changes without notice or obligation to incorporate these changes in products previously purchased. Masotti is not liable for any freight or duty charges. -
Page 7: Important Safety Information
Z35 User Manual Z35 cOMBO v2.0 ENG Important safety information Your Z35 was engineered and built according to the strictest electrical safety standards as per international norm, EU IEC- 62368 and according to the electromagnetic compatibility requirements specified by international norms EN 55032. It thus fully complies to EU standards and therefore carries the CE marking on the rear panel. -
Page 8: Technical Specifications
Environmental operating parameters: 10-40°C, 30-90% humidity without condensation Dimensions: 51 x 24,5 x 41h cm. (1x12) or 69 x 46,5 x 26 (2x12) Weight: 18 Kg (1x12) or 25Kg. (2x12) Contacts Masotti Guitar Devices Via C. Battisti 107– 01010 Farnese (VT) Italy. URL: www.mezzabarba.com e-mail info@mezzabarba.com...
