Summary of Contents for Santint V360

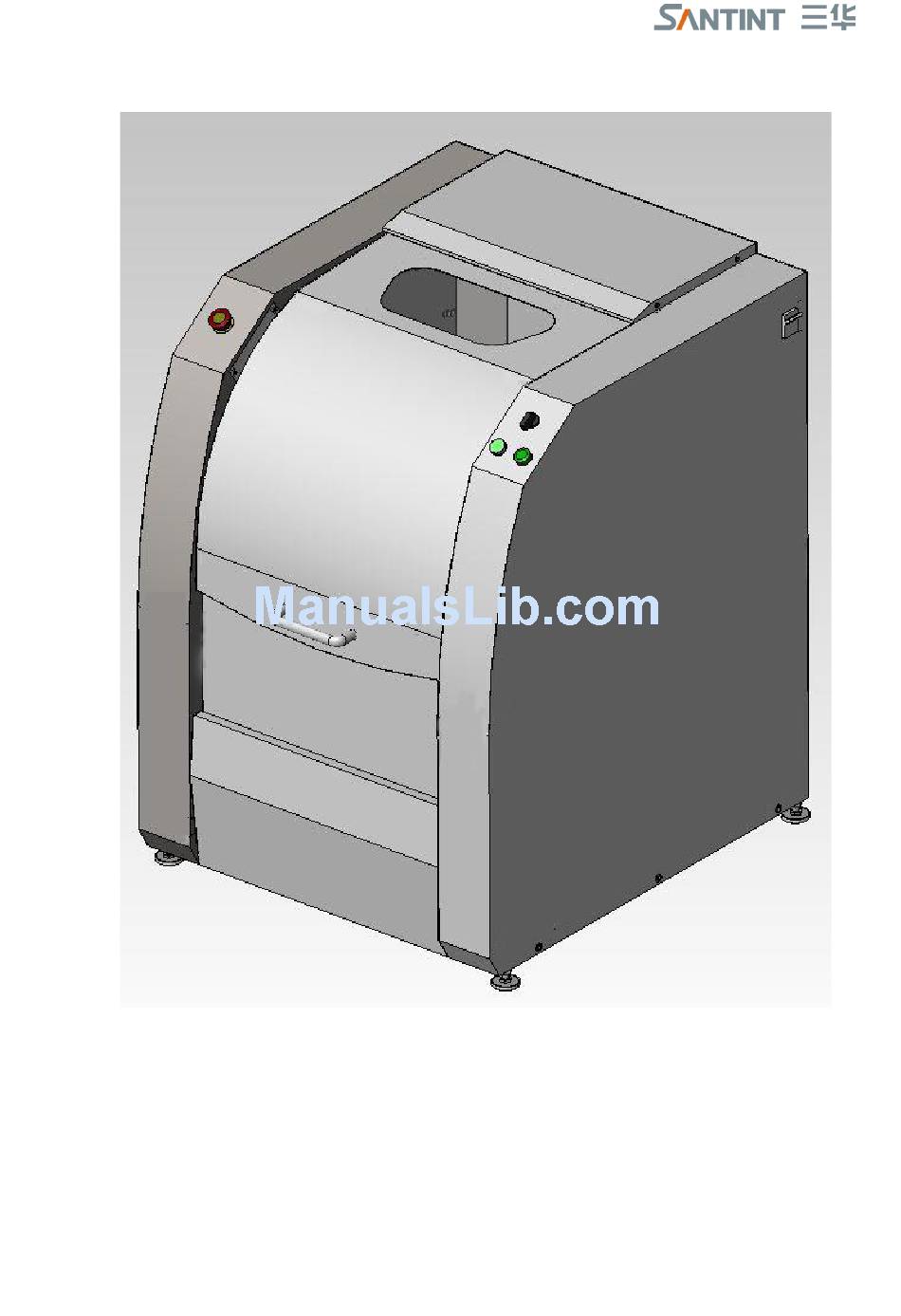

- Page 1 V360 Mixer User Manual Read this manual before use...
- Page 2 © 2008 Copyright Paint Mixing Machine. All rights reserved. Printed in the People’s Republic of China. Disclaimer No part of this book shall be reproduced, stored in retrieval, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise without written permission of ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO.,LTD..
-
Page 3: Table Of Contents
Contents I. Introduction ……………………………………………………………………………………………1 II. Technical Specifications ………………………………………………………………………………1 III. Safety Instructions ……………………………………………………………………………………1 IV. Mixer Structure ……………………………………………………………………………………… 2 V. Control Panel ………………………………………………………………… …………………… 4 VI. Installation …………………………………………………………………………………………..5 VII. Control Panel Buttons ……………………………………………………………………………5 VIII. Operation …………………………………………………………………………………………6 I X . Wa r n in g s … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 7 X . -
Page 4: Introduction
Introduction V360 Manual Clamping Mixer is designed for paint mixing. Main features include: Ergonomic design and clear viewing door facilitate observation of mixing process. Viewing door with electronic lock to protect the mixer from starting up while the door is open and to stop the door from being opened during operation. -
Page 5: Mixer Structure
IV. Mixer Structure Working Device Shell Overall Structure Bucket Locking Parts Working Part Shock Absorber Motor Feet Working Device - 2 - V1.0 V360... - Page 6 Stop Dog Clamping Handle Upper Platen Fixed Mount Lower Platen Guide Axle Rotary Bucket Unit Guide Shaft Washer Spring Polyurethane Spring Base Shock Absorber Unit - 3 - V1.0 V360...
-
Page 7: Control Panel
Emergency Stop Button Tri-position knob Operation Button Mixing Time Table Knob Position Medium and Dark Color Light Color 1-5L 3 min 5 min 6-10L 2 min 4 min 11-20L 2 min 4 min Operation Button - 4 - V1.0 V360... -
Page 8: Installation
Press down the emergency stop button if there is any issue. The machine will cut off the power supply. When restarting the mixer, the emergency stop button needs be rotated clockwise to be reset it. - 5 - V1.0 V360... -
Page 9: Operation
Figure B. Close the machine door. Choose the mixing time. Press down the emergency stop button if there is any issue. Clamp Handle Lock Hook Figure B - 6 - V1.0 V360... -
Page 10: I X . Wa R N In G S
Check the socket and the plug. 2. Emergency stop switch Motor does not operate after Disengage the emergency stop switch. engaged. starting. 3. Fuse or power line is Replace the fuse or power line. broken. - 7 - V1.0 V360... -
Page 11: Tools
Flat tip screwdriver piece small 12-14 open wrench piece 13-16 open wrench piece 8-10 open wrench piece 4 mm allen wrench piece 5 mm allen wrench piece Protective tube 5A piece Protective tube 12A piece - 8 - V1.0 V360... -
Page 12: Nameplate
XIII. Nameplate - 9 - V1.0 V360... -
Page 13: Circuit Diagram
XIV. Circuit Diagram - 10 - V1.0 V360... - Page 14 Zhengzhou Sanhua Technology & Industry Co., Ltd. Address：Xushui Industrial & Trading Park, Zhongyuan West Road, Zhongyuan Distric, Zhengzhou City, Henan Province, P.R. China, 450042 Tel：0371-67857220 After-service：0371-67857319 Fax：0371-67857166 Website：http://www.santint.com E-mail:info@santint.com...
