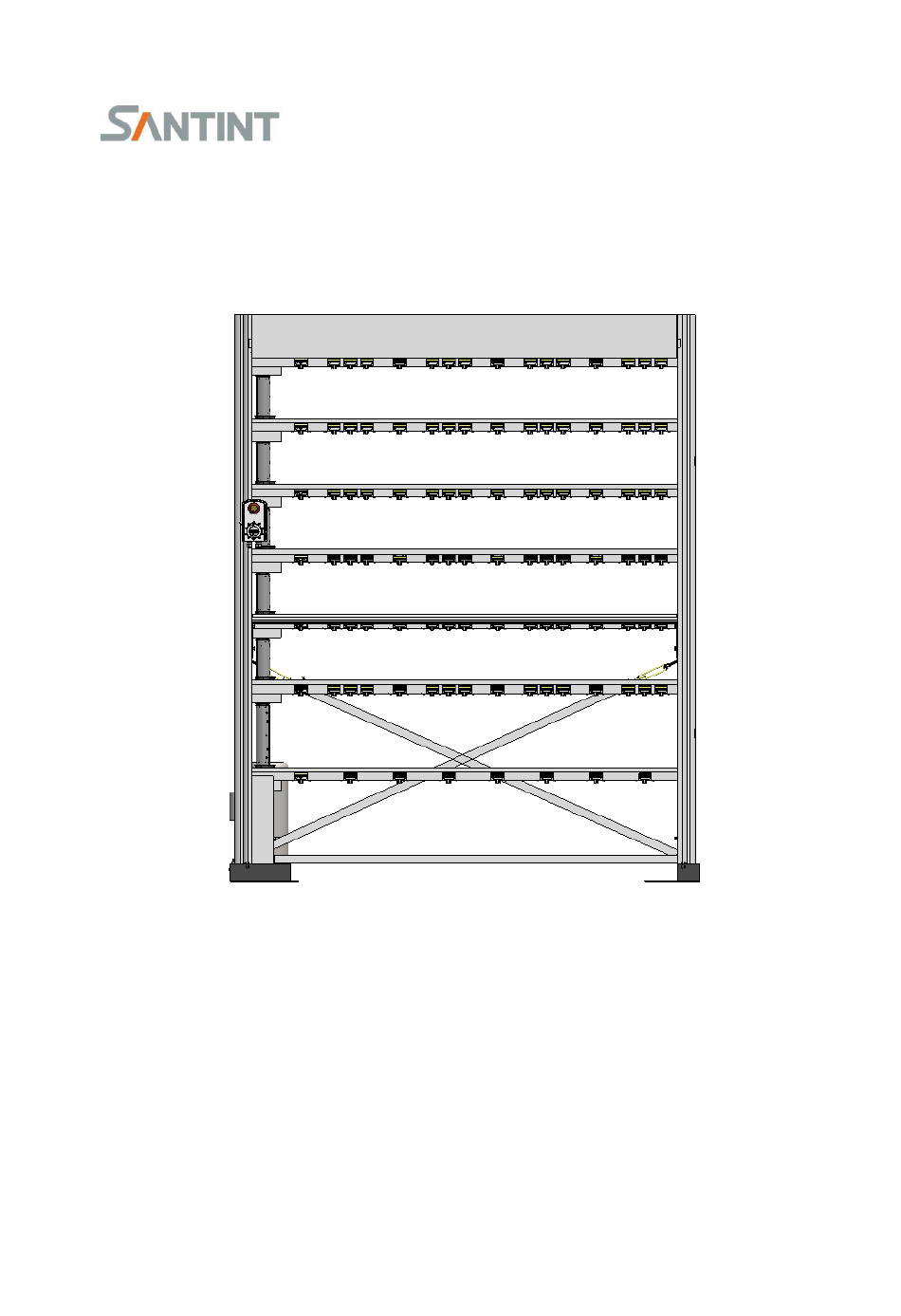

- Page 1 Perfitall Series Paint Mixing Machine User Manual P l ea se rea d th i s ma n u a l c a ref ul l y p ri o r to op era ti o n . Santint PA Series Paint Mixing Machine...
-
Page 2: Table Of Contents
8.1 Tension the Chain……………………………………………………………………13 8.2 Replace the Spring Pin and Jackscrew………………………………………………13 8.3 Replace the Plastic Cone-Gear Assembly…………………………………………13 8.4 Lubrication…………………………………………………………………………14 Maintenance…………………………………………………………………………….14 9.1 Daily Maintenance………………………………………………………………14 9.2 Maintenance for Long Time No Use……………………………………………………14 10. Nameplate…………………………………………………………………………… .15 Santint PA Series Paint Mixing Machine V1.1... -
Page 3: Introduction
1. Introduction Perfitall series paint mixing machines are used for auto-refinishes paints. They are equipped with mixing lids and rotary paddles for paint mixing. Perfitall series paint mixing machines are mainly for auto-refinishes store; 4S shop; etc. Safety Instruction Danger: No reaching in for all the parts of this transmission structure. -
Page 4: Technical Parameters
Check the power supply voltage frequency to see whether it is in line with the data on the nameplate of the equipment motor. This manual is general for the Perfitall series. The figures shown and the number of the cans might be different from your products. The installation procedures and usage methods are the same. -
Page 5: Installation Process
Fasten two M8X20 screws respectively on the two ends of the bottom shelve assembly（5.2.7）. Insert the screws on the left of the bottom shelves assembly into the hole of the bottom plate of the side plate（5.2.8）. Repeat it for the right end.(5.2.9) Santint PA Series Paint Mixing Machine V1.1... - Page 6 （ 5.2.11） . Use four M8X12 screws to fasten the shelves onto the holes of the left and right side plate assembly（5.2.12）. Install the other general shelves in the same way. （5.2.13） Supportive Units 5.2.10 5.2.11 5.2.12 5.2.13 Santint PA Series Paint Mixing Machine V1.1...
- Page 7 Adjustment of Backing Plate Support Units 2.5L Standard Configuration: ①4L： Plate Rack Small ②2.5L： Plate Rack Small ③1L： Plate Rack Small Santint PA Series Paint Mixing Machine V1.1...
- Page 8 Insert the coupler end of the general drive link rod into the coupler of the drive assembly, the other end shall be inserted into the transmission shaft of the shelves assembly. (5.2.16, 5.2.17) 5.2.16 5.2.17 Santint PA Series Paint Mixing Machine V1.1...
- Page 9 （5.2.23）. Install the other link rods and cover plates with the same methods. Cover the supportive units and sealing pads on the top of the main drive. Supportive Units 5.2.21 5.2.20 Plastic Cover 5.2.22 5.2.23 Santint PA Series Paint Mixing Machine V1.1...
- Page 10 ； Saved 5.2.28 Hole ② Sealing plate of the shelves shall be used to seal the saved shelf holes. （5.2.29）. 5.2.27 5.2.29 Santint PA Series Paint Mixing Machine V1.1...
-
Page 11: Installation Process Of Operational Parts
Push down the hanging plate to make it level with the bottom of the side plate（5. 3.5， 5.3.6，5.3.7）. 2. Install the left hanging plate onto the left side plate by the same method（5.3.8）. Side Bracket Square Hole Vertical Hook Horizontal Hook 5.3.6 5.3.5 Santint PA Series Paint Mixing Machine V1.1... -
Page 12: Back-Storing Shelf And Mica Shelf
Connect the mica mount and the mica shelf by M8X50 screws. Do not fasten the screws （5.3.15） ，then fix them onto the relevant position of the right side plate.（5.3.16） Fasten all the screws. 5.3.9 5.3.10 Santint PA Series Paint Mixing Machine V1.1... -
Page 13: Usage
4) Make sure the paints are mixed even prior to install them onto the equipment one by one. 5) Mixing the paints thoroughly prior to changing any paints. 6) Check the equipment thoroughly to see if there is any issue. 7) All the fixing parts shall be fastened. Santint PA Series Paint Mixing Machine V1.1... -
Page 14: Operation
Whole layer the main drive is Replace it doesn’t work. broken Partial of the Sleeve tube or spring whole layer Replace the sleeve tube or the spring pin. pin is broken. doesn’t work. Santint PA Series Paint Mixing Machine V1.1... -
Page 15: R E P A I
Dismantle the four fixing bolts of the broken shelf frame and the fixing bolts of the neighboring frame (8.3.2). Pull upward the shelves assembly to dismantle it from the neighboring sleeve (8.3.2). 4. Replace it with a new shelves assembly, fasten all the bolts. Santint PA Series Paint Mixing Machine V1.1... -
Page 16: Lubrication
Clean the machine and the paint leftover on tins and mixing lids.（Stop the machine）. 9.2 Maintenance for Long Time No Use 1）Cut off the power supply 2）Lubricate all parts of the machine 3）Cover the machine 4）Follow 6.Usage when reuse the machine. Santint PA Series Paint Mixing Machine V1.1... -
Page 17: Nameplate
10. Nameplate Santint PA Series Paint Mixing Machine V1.1... - Page 18 ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO. LTD. ADD: Xushui Industrial & Trading Park, Zhongyuan West Road, Zhengzhou City, Henan Province. PR. China. 450042 TEL：(86) 371-67857168 After-Service：(86) 371-67857319 FAX：(86) 371-67857166 WEB：http://www.santint.com E-mail:info@santint.com Santint PA Series Paint Mixing Machine V1.1...
