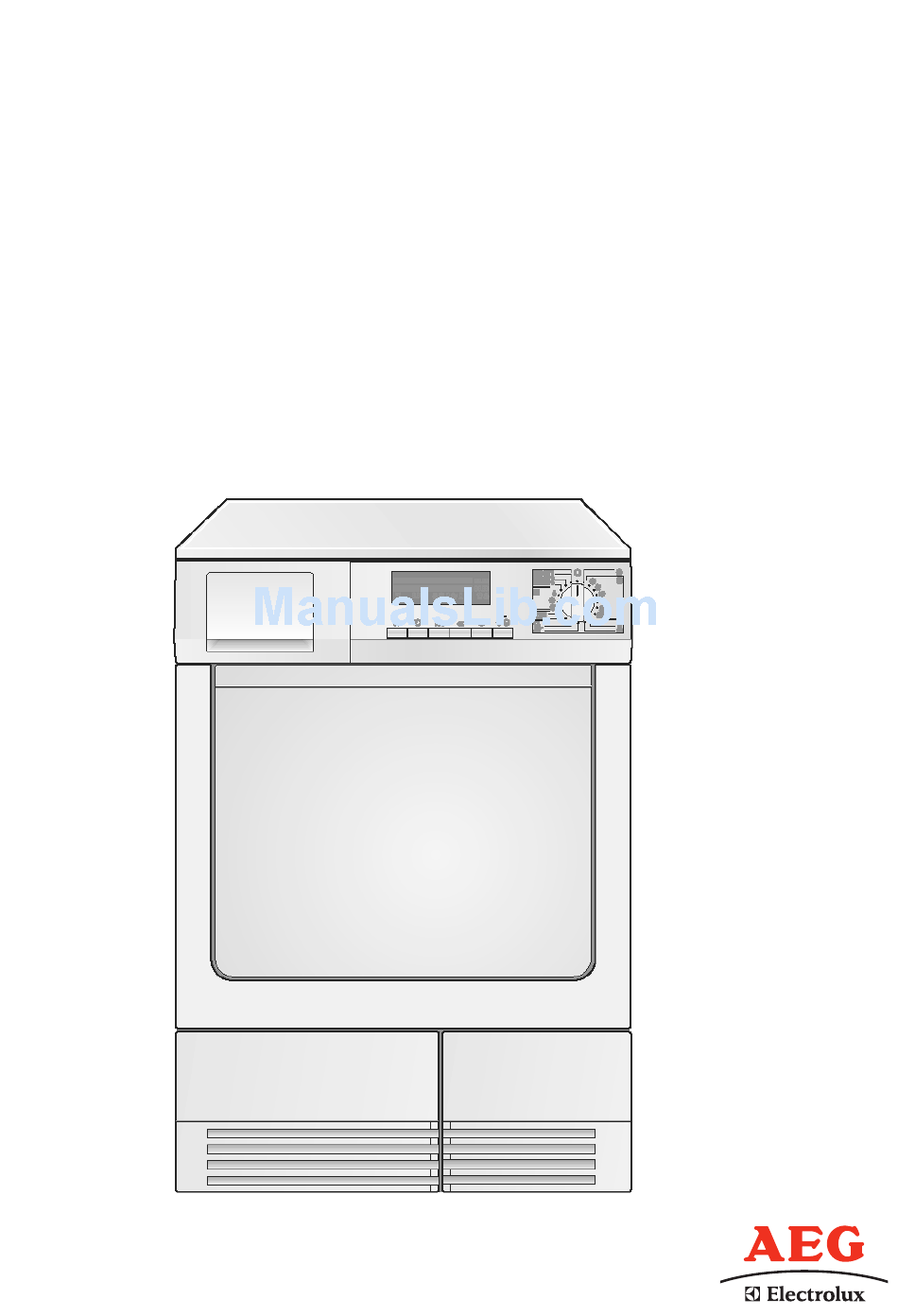

- Page 1 LAVATHERM 58830 Condensation dryer User information PERFEKT IN FORM UND FUNKTION...
-
Page 2: Dear Customer
Dear customer, Please read this User Information carefully and keep it to refer to at a later date. Pass this User Information on to any subsequent owner of the appliance. The following symbols are used in the text: Safety instructions Warning: Notes that concern your personal safety. -
Page 3: Table Of Contents
Contents Operating Instructions..........5 Safety . - Page 4 Cleaning the heat exchanger ..........27 Cleaning the drum..
-
Page 5: Operating Instructions
Operating Instructions Safety Before first starting up • Note the ”Installation and connection instructions” • Before first starting up, check the machine for any damage incurred during transport. Never connect up a damaged machine. If parts are damaged, contact your supplier. Intended use •... - Page 6 Child safety • Keep packaging away from children. Risk of suffocation! • Children can often not see the dangers associated with electric machi- nes. Never leave unsupervised children near the dryer. • Ensure that children and small animals cannot climb into the dryer’s drum.
-
Page 7: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this... -
Page 8: Environmental Tips
Environmental tips • In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed when washing. • Your dryer will function most economically if you: – always keep the ventilation slots on the base of the dryer unob structed;... -
Page 9: Description Of Machine
Description of machine Control panel What is shown in the display... -
Page 10: Prior To Using For The First Time
Prior to using for the first time Switching on the appliance for the first time - setting the language The display is set to English as standard in the factory. Important! If the display does not show the menu for setting the lan- guage when the appliance is switched on, the appliance has been swit- ched on before. -
Page 11: Programme Overview
Programme overview Additional functions Care Programme Application/properties symbols Thorough drying of thick or multi- 7 kg • • • • layered fabrics, e.g. terry towelling EXTRA DRY items, bathrobes. Thorough drying of thick fabrics, 7 kg • • • • INTENSIVE e.g. - Page 12 Additional functions Care Programme Application/properties symbols Special programme for leisure clothing, such as jeans, sweat-shirts, etc., • • • • of different material thicknesses (e.g. LEISURE at the neck, cuffs and seams). Special programme for briefly treating woollens with warm air, after they have been dried naturally, worn or stored for long periods.
-
Page 13: Before The First Drying Cycle
Before the first drying cycle In order to remove any residues which may have been produced during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle (20 MIN) with damp cloths in the machine. Sorting and preparing laundry Sorting laundry •... -
Page 14: Drying
Drying Switching machine on / switching light on Turn the programme selector to any programme or turn it to LIGHT. The machine has been switched on. When the loading door is opened, the drum is illuminated. Opening loading door / filling laundry 1. -
Page 15: Setting Options
Setting options Options can be added to a drying cycle that has already been selected. Press the OPTION button. The display shows the symbols for the options. Dry Level Fine adjustment of the washing’s degree of dryness in three stages: Laundry becomes drier from Half Power For especially gentle drying of sensitive fabrics with the care label and for temperature-sensitive textiles (e.g. -
Page 16: Half Power, Buzzer, Sensitive
Half Power, Buzzer, Sensitive 1. Press the OPTION button repeatedly until the required symbol flashes, e. g. HALF POWER (every time you press a button, the next symbol will flash – going from left to right). 2. Press the OK button. The symbol stops flashing. -
Page 17: Delay Start Timer
Using the OPTION button you can change between INCREA- SED DRY, VERY DRY and EXTRA DRY. 5.Press the OK button to confirm the selection. The display changes to HALF POWER symbol, this means the HALF POWER option can now be set. Delay Start Timer 1. -
Page 18: Long Anticrease
Long Anticrease 1. Press the TIME button repeatedly until the LONG ANTICREASE symbol flashes. 2. Press the OK button. A 60 minute anti-crease phase is set. The dis- play changes to the initial display. It now shows the LONG ANTICREASE symbol. Starting the programme 1.Press the START/PAUSE button. -
Page 19: Putting In Extra Items Or Taking Items Out Before End Of Programme
Putting in extra items or taking items out before end of programme 1. Open door. Warning! Laundry and drum can become hot. Risk of burns! 2. Load or remove laundry items. 3. Close door securely. 4. Press the START/PAUSE button to continue the drying cycle. Drying cycle complete / removing washing If the audible signal is set, at the end of the programme a 4x signal sounds and the display alternates between the messages “ANTICREASE”, “PLEASE EMPTY... -
Page 20: Memory 1, 2, 3
Memory 1, 2, 3 Programme combinations can be stored at programme knob positions MEMORY 1, 2, 3 and can then be selected using the programme knob. To do this, the desired programme combination is first put together and then stored. Setting the Memory Example: Programme position MEMORY 1 is to be... -
Page 21: Sound
Sound The volume of the acoustic audible signal can be selected. 1. Turn the programme knob to any programme and press the OPTION button repeatedly, until the SETUP symbol flashes. 2. Press the OK button. 3. Press the OPTION button repeatedly, until SOUND is shown in the dis- play. -
Page 22: Language
Language 1. Turn the programme knob to any programme and press the OPTION button repeatedly, until the SETUP symbol flashes. 2. Press the OK button. 3. Press the OPTION button repeatedly, until LANGUAGE is shown in the display. 4. Press the OK button. 5. -
Page 23: Contrast And Brightness
Contrast and Brightness 1. Turn the programme knob to any programme and press the OPTION button repeatedly, until the SETUP symbol flashes. 2. Press the OK button. 3. Press the OPTION button repeatedly until the display shows CONTRAST or BRIGHTNESS. 4. -
Page 24: Cleaning And Maintenance
Cleaning and maintenance Cleaning fluff filter To ensure that the dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be cleaned after every drying cycle. Caution! Never operate the dryer without fluff filters or with damaged or blocked fluff filters. 1. -
Page 25: Cleaning The Door Seal
Clean the entire filter area The strainer area does not have to be cleaned after every drying cycle, but should be checked regularly and cleaned of fluff if necessary. 6. To do this, grip the top of the large mesh filter and pull it forwards until it comes loose from the two brackets. -
Page 26: Emptying The Condensed Water Container
Emptying the water reservoir Empty condensed water container after every drying cycle. When a program- me is running and the condensed water container becomes full, the pro- gramme is automatically interrupted and the message THE TANK IS FULL, PLEASE EMPTY appears in the display. In order to continue the programme, the condensed water container must first be emptied. -
Page 27: Cleaning The Heat Exchanger
Cleaning heat exchanger If the HEAT EXCHANGER display is illuminated, the heat exchanger needs to be cleaned. Caution! Operating when the heat exchanger is clogged with lint can dama- ge the dryer. This also increases energy consumption. 1. Open loading door 2. -
Page 28: Cleaning The Drum
Cleaning the drum Caution! Do not use abrasives or steel wool to clean the drum. Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. - Page 29 Problem Possible cause Remedy Select a different program- me the next time you dry Wrong programme selected. (see section “Overview of programmes”). Fluff filter blocked. Clean fluff filter. Heat exchanger blocked Clean heat exchanger.. with fluff. Incorrect amount of was- Observe recommended Drying results hing.
-
Page 30: Changing Bulb For Inside Light
Problem Possible cause Remedy Programme stops midway, Empty condensate tank, display shows: then start programme with Condensate tank is full. THE TANK IS FULL, START/PAUSE but- PLEASE EMPTY. ton. Select Timed Drying or hig- Drying cycle ends shortly after programme Not enough washing loaded degree of dryness (e.g. -
Page 31: Technical Data
Technical data This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC – 93/68/EEC dated 22.07.1993 CE Marking Directive Height x width x depth 85 x 60 x 60 cm Depth with loading door open 109 cm... -
Page 32: Installation And Connection Instructions
Installation and connection instructions Installation safety instructions • Before first starting up, all parts of the transport safety equipment must be removed. The machine may otherwise be damaged. • Before starting up for the first time, ensure that the nominal voltage and type of current specified on the machine type plate match the nominal vol- tage and type of current at the installation site. -
Page 33: Removing Transport Safety Equipment
Removing transport safety equipment Caution! Before first starting up, all parts of the transport safety equipment must be removed. 1.Open loading door 2. Pull off adhesive strips from inside machine on top of drum. 3. Remove foil hose and polystyrene padding from the machine. -
Page 34: Changing Door Stop
These intermediate installation kits can be used to arrange the dryer and an automatic AEG-Electrolux washing machine (60cm wide, front loa- ding) as a space-saving washer/dryer stack. The automatic washing machine is at the bottom and the dryer is at the top. -
Page 35: Guarantee/Customer Service
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können dort eingesehen werden. Further after-sales service agencies overseas In these countries our AEG-Electrolux agents’ own guarantee conditions are applicable. Please obtain further details direct. Autres agences étrangères assurant le service après-vente Dans ces pays, les conditions de garantie des concessionnaires de la régi-... - Page 36 Australia Korea (South) Namibia The Andi-Co Group Core Incorp. AEG NAMIBIA (PTY) 1 Stamford Road 3/F Chewoo Bldg. LIMITED-Jeppe Street Oakleigh VIC 3166 200 Nonhyun-Dong Northern Industrial Area Tel.: (03) 9569 1255 Kangnam-Ku 135-010 Windhoek Fax: (03) 9569 1450 Seoul Tel.: (061) 21-6082/4...
- Page 37 Tel.: 0120-13-7117 Fax: 03-3790-5257 Thailand Olympia Thai Tower, 444 Slovakia Rep. South Africa Rachadapiser Road Electrolux Slovakia S.R.O. AEG (Pty) Ltd. Samsennok- Huaykwang Seberiniho 1 55, 12th Road 10320 Bangkok 821 03 Bratislava P.O. Box 1 02 64 Thailand Tel.: 02 4333 4322, 4355 Kew/Johannesburg 2000 Tel.: 006625136111...
-
