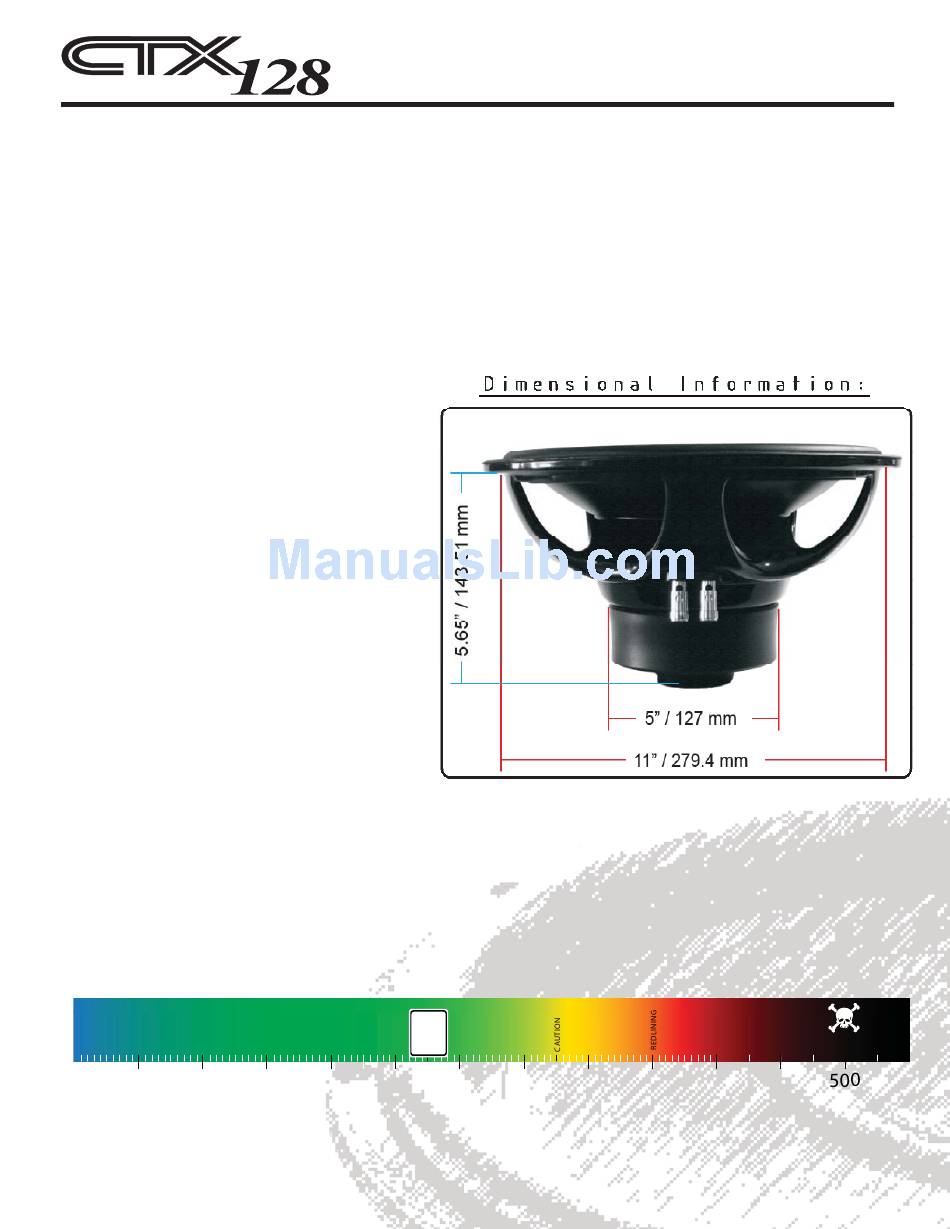

Image Dynamics USA CTX 128 Owner's Manual page 2

* Loudspeaker Enclosure Analysis Program
* LEAP® EnclosureShop 5.2.0.363 May/14/2007
* ©1993-2005 LinearX Systems Inc
* Date: Jul 10, 2008
* Designed by Eric Stevens
* Tested by Matt Borgardt
* Electro Mechanical Parameter
Name= CTX 128
Note= Transducer Model Derivation
Model= TSL
Domain= FreeAir
Shape= Round
Profile= Cone
Fmd= 3.0000
Qmd= 1.0000
Flp= 8.0000
Qlp= 2.0000
Znom= 8.0000
Revc= 7.8000
Sd= 545.0000
Mmd= 142.5980
Pmax= 250.0000
Rtvc= 1.0000
Xgap= 8.0000
Xcoil= 38.1000E3 mm
Xmax= 16.00 mm
Krm= 4.7120E-3
Erm= 996.0000E-3
Kxm= 135.7780
Exm= 621.0000E-3
Rms= 6.2415
Mms= 149.9100
Cms= 310.5800
Vas= 131.7607
Fo= 23.3248
Qms= 3.5200
Qes= 0.6681
Qts= 0.5616
BL= 16.0150
Levc= 4.9350E-3
SPLo= 85.8190
No= 0.2399
* End of line
CTX 12
Recommended Power Range
80 100
Watts
Specifcations:
Thr 5:18 pm
KA
KA
Ohm
Ohm
cm²
g
W
°C/W
mm
KOhm
mH
N·S/M
g
uM/N
M³
Hz
T·M
H
dB
%
RMS
L I MI T
175
☯
120 140 160
s
300
200 250
2 2 2 2
400
350
Death
