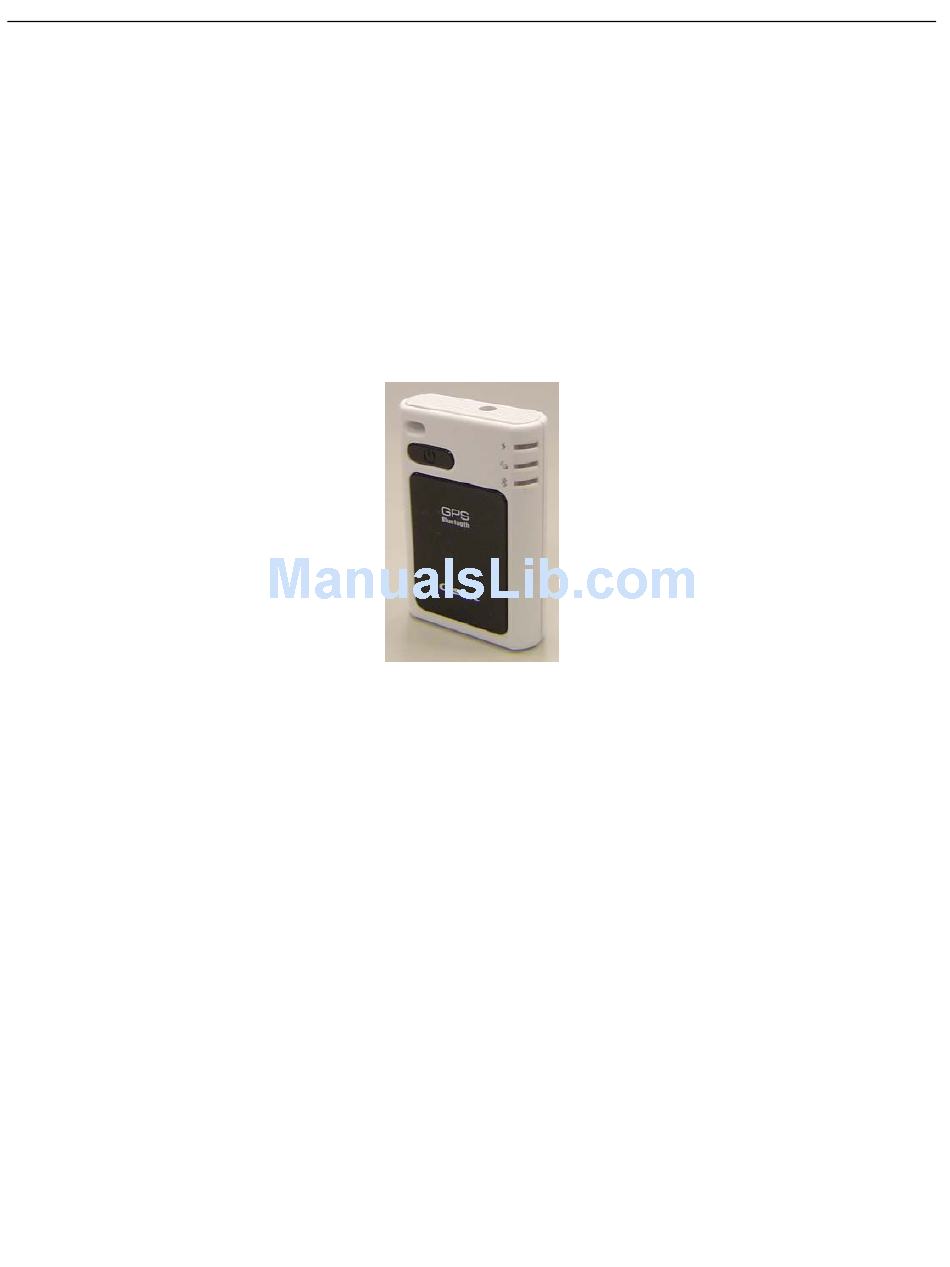

Page 1: Bluetooth Gps Receiver
BT-328 User Manual page 1 of 10 BT-328 Bluetooth GPS Receiver User manual, version 1.0... - Page 2 BT-328 User Manual 1. Overview Car charger Power button AC adapter jack Power status LED GPS status LED Bluetooth status LED AC adapter page 2 of 10...
-
Page 3: System Specification
BT-328 User Manual 2. System Specification Model Name BT-328 Electrical Characteristics (Receiver) Chipset SiRF GSC2 Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels Tracking Sensitivity -155 dBm Accuracy Position Horizontal 10m 2D RMS WAAS enabled 5m 2D RMS Time 1 micro-second synchronized to GPS time Velocity... -
Page 4: Bluetooth Specification
Bluetooth operation range: 10m 5. Introduction The BT-328 is a GPS receiver with Bluetooth interface and built-in active antenna for high sensitivity to tracking signal. Base on the SiRF start II Low power single chipset and supports all functions (Single Sat updates in reduced visibility, Superior urban canyon performance, Foliage Lock for weak signal tracking, etc.) The BT-328 is well suited to system integrations including... -
Page 5: Getting Started
BT-328 User Manual 6. Getting Started Turn the device on and off Power on: Press the power button for 1 second until the GPS status LED is on. Power off: Press the power button for 1 second until the GPS status LED is off. AC Adapter jack The power jack allows you to connect either a DC car charger (included) or AC adapter (included) to recharge the internal battery. - Page 6 BT-328 User Manual 7. Usage 7.1 Connect BT-328 to your Bluetooth device (1) Press the power button to turn on the BT-328. (2) The Bluetooth device could be “a PDA with built-in Bluetooth”, “a PDA with Bluetooth Compact Flash card”, or “a Notebook with Bluetooth device”…etc. (3) Please refer to the user manual of your Bluetooth device and enable the it for connecting to BT-328.
- Page 7 BT-328 User Manual 4. Tap the “Devices” tab, and tap “New Partnership…”. 7. Enter Passkey “0000” and tap Next. 5. It will search for all the Bluetooth devices. 6. Select a device (for example “BT-GPS-328EB2”) and tap Next. 8. Check “Serial Port” and tap Finish. page 7 of 10...
- Page 8 BT-328 User Manual 9. The device will be shown on the list. 11. Select the device and tap Next. 10. Tap the “COM Ports” tab, and select “New Outgoing Port”. 12. Uncheck “Secure Connection” and from the drop down box select a COM port number (for example, COM8), and then tap Finish.
- Page 9 BT-328 User Manual page 9 of 10 13. The device with it’s COM port 14. Now you can go to GPSinfo number will be shown on the list. program, set the correct COM port and test the GPS receiver.
-
Page 10: Troubleshooting
BT-328 User Manual 8. Test the BT-328 Bluetooth GPS Receiver Please install the GPS Information program. It is included in the CD, file name could be “GPSinfo.exe” or “GPS Information.exe”. This testing program only supports the Microsoft Windows CE & Pocket PC based PDA platform.
