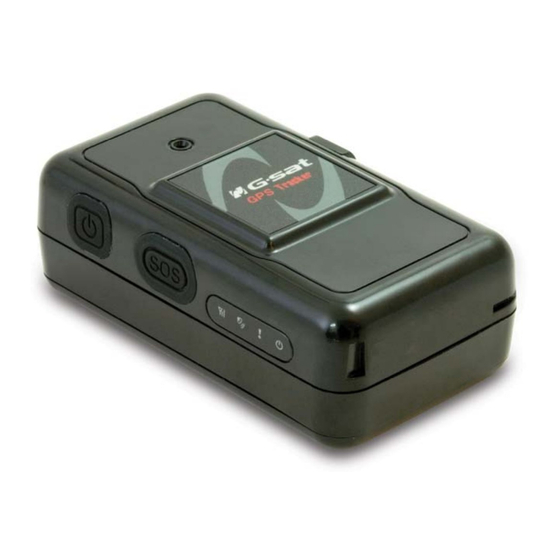

TR-151 Vehicle/ Asset Tracker
Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
www.globalsat.com.tw
User's Manual
V0.8
Page 1 of 41
USGlobalSat Incorporated
1308 John Reed Court, City of Industry, CA 91745
Tel: 626.968.4145 / Fax: 626.968.4373
sales@usglobalsat.com
www.usglobalsat.com
TR-151_web_user guide _v0 8_Eng.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-151 and is the answer not in the manual?

Questions and answers

Related Manuals for G Sat TR-151

Summary of Contents for G Sat TR-151

  • Page 1 TR-151 Vehicle/ Asset Tracker User’s Manual V0.8 Globalsat Technology Corporation USGlobalSat Incorporated 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan 1308 John Reed Court, City of Industry, CA 91745 Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 Tel: 626.968.4145 / Fax: 626.968.4373 service@globalsat.com.tw...
  • Page 2 © 2009 Globalsat Technology Corporation/USGlobalsat, Inc. All rights reserved. The Globalsat logo is a trademark of Globalsat Corporation. Windows is a register trademark of Microsoft Corporation. Acrobat is a registered trademark of Adobe Systems Incorporated. Mac is a registered trademark of the Apple Corporation. All other trademarks or registered trademarks are acknowledged as the exclusive property of their respective owners.

  • Page 3: Table Of Contents

    5.6 TR-151 Ping................22 5.7 TR-151 Periodic Report............23 5.8 TR-151 Motion Report ............. 24 5.9 Stop TR-151 Periodic and Motion Report ........25 5.10 Editing login profile and e-mail ..........26 5.11 TR-151 SIM card replacement ..........27 5.12 History data information look up ..........30 6.

  • Page 4: Warning

    1. Warning USE RESPONSIBLY. READ ALL INSTRUCTIONS AND SAFETY INFORMATION BEFORE USE TO AVOID INJURY. Globalsat Technology Corporation / USGlobalsat, Inc. will not accept any responsibility whatsoever for accidents resulting from failure to observe common sense precautions. Your personal judgment, traffic regulations, and common sense must always take precedence over any directions produced by GPS receiver or the mapping software.

  • Page 5: Welcome

    Asset Tracker is a compact and portable tracking device, allowing flexibility to equip the unit to any vehicle with ease. In addition to its tracking abilities, the unit incorporates a wide array of custom configurations for users with unique needs. In result, the TR-151 tracker’s versatility can be used for many tracking applications.

  • Page 6: Introduction And Features

    The TR-151 is equipped with a high capacity Li-Ion battery designed for extensive operation times. The TR-151 includes an SOS button for emergency assistance. The TR-151 is very simple to install and hide in a vehicle to perform tracking. In ideal applications, TR-151 is for vehicle tracking and equipment/assets monitoring.

  • Page 7: Led Indicators

    SOS button Error occurs State is in being being turned is pressed standby turned “OFF”. mode “ON”. Power LED Orange State TR-151 connected to charger or LED shuts down after battery charge USB to Mini-USB cable. completion. Page of 41...

  • Page 8: Device Operation

    2. Allow a 4 hour battery charge time. (TR-151 in power-off condition) Using the USB cable charge method: 1. Connect TR-151 to its supplied USB to Mini-USB cable to PC or Notebook. (Computer requires to be “ON”) 2. Allow a 4 hour battery charge time. (TR-151 in power-off condition) Note: The attached battery is specially designed for TR-151 devices.

  • Page 9: Sim Card And Battery Installation

    4. Device Operation (Continued) 4.2 SIM card and Battery Installation • Unscrew TR-151 by screwdriver. • Lift and remove the back cover. Page of 41...
  • Page 10 4. Device Operation (Continued) • Push forward the SIM card slot cover to the position marked with “OPEN”. Then, lift cover up. • Insert SIM card with its metal contacts facing down with the cut corner at position on the top left. •...
  • Page 11 After installing the battery, the status LED will emit red light. After the LED go out, please wait for 5 seconds before turning on the power. Note: Please take out the battery if you do not use TR-151 for a long time. Page of 41...

  • Page 12: Power

    To turn the device “OFF”, press and hold the power button until you see status LED ! blink 1 once. 4.4 Emergency button Press and hold the emergency button until you see status LED ! blink 3 times. TR-151 will attempt to receive a GPS fix, then, communicate the emergency SMS to the preset phone number.

  • Page 13: Free Web Service

    • Turn your TR-151 “ON” to allow and commence receiving SMS configuration communications. Note: Your telecom operator will charge GPRS transmission fee when you use the function of Ping, Periodic report of TR-151. For details of charging method, please contact with your telecom operator. Page of 41...

  • Page 14: Account Creation

    5. Free Web Service (Continued) 5.2 Account creation Please turn on your web browser and go to http://traq.gstraq.com/ Next, click the Register hyperlink. Read the Agreement, check I Agree, and click Next button. Page of 41...
  • Page 15 5. Free Web Service (Continued) Check the preparation again and click Next button. Select TR-151 for Device Type, your Time Zone, Device IMEI and Serial No., your Country code, enter your Device Phone Number, Device Name, and click Next button.
  • Page 16 Create your login profile by entering User Name, Password, and Email, and click Next button. Please print this page or write down your User Name, Password and click “Click to start Setup” button. Page of 41...
  • Page 17 5. Free Web Service (Continued) Please select your country and telecom operator. Selecting your telecom operator will display the corresponding GPRS parameters. In the case, you cannot locate your telecom operator from the pull-down menu or the information is incorrect in the pull-down menu.
  • Page 18 2. Click History to view TR-151 communicates a ping report to website. In the case you cannot view ping report on website, make a phone call to the TR-151 and wait approximately 30 seconds to see if it transmits a ping report.

  • Page 19: Add Device In Your Account

    5.3 Add device in your account Perform the following: Setup Add New Device Then please refer to 5.2 Create Account to enter the concerning information of the device After adding the required information and sending out the SMS, you could switch to use separate device by selecting in the Device pull-down menu on the upper right corner of the webpage.

  • Page 20: Delete Device From Your Account

    5.4 Delete device from your account Perform the following: Setup Delete Device Please select the device you would like to delete. And then please click Delete Device button. Page of 41...

  • Page 21: Set Up Sos Parameters

    SOS Time Zone 1. Select SOS Time Zone and SOS Report Type 2. Click Send button. 3. Then please call TR-151. TR-151 will not answer the phone call but connect to this website. Note: .The content of SOS report includes GPS fix date and time. The GPS date and time will be according to the setting of SOS Time Zone.

  • Page 22: Tr-151 Ping

    If the TR-151 is not in Periodic or Motion report mode, you may contact the device by calling it from your phone. The TR-151 will not answer the phone call, but, it will hang up the call automatically. Then, the TR-151 will connect to the website and report its physical location.

  • Page 23: Tr-151 Periodic Report

    TR-151 is not in Periodic or Motion report mode, you may contact the device by calling it from your phone. TR-151 will not answer the phone call but hang up it automatically. Then, TR-151 will communicate to the website and report its location according to the report interval.

  • Page 24: Tr-151 Motion Report

    TR-151 is not in Periodic or Motion report mode, you may contact the device by calling it from your phone. TR-151 will not answer the phone call but hang up it automatically. Then, TR-151 will communicate to the website and report its location according to the report interval.

  • Page 25: Stop Tr-151 Periodic And Motion Report

    5.9 Stop TR-151 Periodic and Motion Report Disable Periodic and Motion Reporting Select Setup Report Mode on the menu bar. Select Stop Report in the pull-down menu of Report Command Click Send button. TR-151 will stop periodic report. Page of 41...

  • Page 26: Editing Login Profile And E-Mail

    5.10 Editing login profile and e-mail 1. Select Setup User Information 2. Click Edit. Edit the content and click OK button. Page of 41...

  • Page 27: Tr-151 Sim Card Replacement

    5. Free Web Service (Continued) 5.11 TR-151 SIM card replacement When replacing telecom operator’s SIM card from the original, be certain, to change phone number on the website. Select Setup Device Information Next, enter new phone number and click the OK button.
  • Page 28 5. Free Web Service (Continued) In the case, a different telecom operator’s SIM card is desired to replace the original SIM card, then, perform the following steps to alter the phone number and GPRS parameters on the website. Select Setup Device Information Next, enter new phone number and click the OK button.
  • Page 29 Setup SMS Auto Mode. Click Send button Free web service provides 3 pieces of free SMS for configuring TR-151. If you want to change the configuration after sending 3 pieces of free SMS, please go to Setup Send Setup SMS Manual Mode.

  • Page 30: History Data Information Look Up

    5. Free Web Service (Continued) 5.12 History data information look up Free Web Service could store up to 10000 reports from your TR-151. Otherwise, the 10001 report will replace 1 report and so on. That is to say, if TR-151 periodically reports its location to website every 1 minute, website can store the reports of 7 days.
  • Page 31 map. You could also save the reports as CSV format for viewing by Microsoft Excel or save the reports as KML format for viewing by Google Earth. Save as CSV format: Please select you want to save all the history reports (All Data) or only save the reports with Fix data (Fix Data).
  • Page 32 You will see the window below. Please click Save and then select the location you want to save the file. In addition, you may also view the last TR-151 25 points by selecting Show Last 25 Points on the menu bar.
  • Page 33 Page of 41...

  • Page 34: Contact Information

    6. Contact Information Globalsat Technology Corporation (Taiwan) USGlobalsat, Inc. (North America) www.globalsat.com.tw www.usglobalsat.com service@globalsat.com.tw sales@usglobalsat.com (pre-sales GPS product questions only) (pre-sales GPS product questions only) Technical Support (North America) See our DOWNLOADS and FAQ section on our web-site for GPS driver updates. www.usglobalsat.com Product Pre-registration Requirements: Before receiving product technical support and/ or online support from...

  • Page 35: Limited Warranty

    • Never charge the battery in a neither extreme cold nor hot place, which could damage the battery. • Keep this product which is being charged out of the reach of children. 7. Safety Information (Continued) • Never put it under the direct baking sunshine or place it in a place with high temperature to avoid the problem of over-heat to the battery or this product, which could trigger fault or danger.
  • Page 36 product hardware against manufacturing defects in materials and workmanship under normal use for a period of ONE (1) year from the date of retail purchase by the original end-user purchaser and purchased from a recognized “authorized dealer” (“Warranty Period”). Products purchased from any unauthorized source, such as unauthorized e-Bay resellers, will not qualify for free warranty service/support and may require the end-user to pre-pay fees associated with, but not limited to the support, repair, replacement and shipping of the product to and from the service center.
  • Page 37 their products “as-is”. Software distributed by Globalsat/ USGlobalsat with or without the Globalsat brand name (including, but not limited to system software) is not covered under this Limited Warranty. Refer to the licensing agreement accompanying the software for details of your rights with respect to its use. Globalsat/ USGlobalsat does not warrant that the operation of the product will be uninterrupted or error-free.
  • Page 38 No Globalsat/ USGlobalsat reseller, agent, or employee is authorized to make any modifications, extension, or addition to this warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired. EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, GLOBALSAT/ USGLOBALSAT IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR...
  • Page 39 and you agree to follow instructions, including, if requires, arranging the return of the product or part to Globalsat/ USGlobalsat in a timely manner. When providing RMA service requiring the return of the original product or part, Globalsat/ USGlobalsat may require credit card authorization as security for the retail price of the replacement product or part and applicable shipping costs.

  • Page 40: Fcc Notices

    9. FCC Notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment utilize, exhibits and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 41 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Page of 41...
