Behringer SUPER PHASE SHIFTER SP400 Manual

SUPER PHASE SHIFTER SP400
Ultimate Phase Shifter Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER SUPER PHASE SHIFTER SP400.
This Phaser effects pedal delivers the whole history from vintage to modern phase shifting effects—
at the touch of a foot switch. Experience sounds from classic multi-stage phasers to new swirling
up- and downward moving sounds.

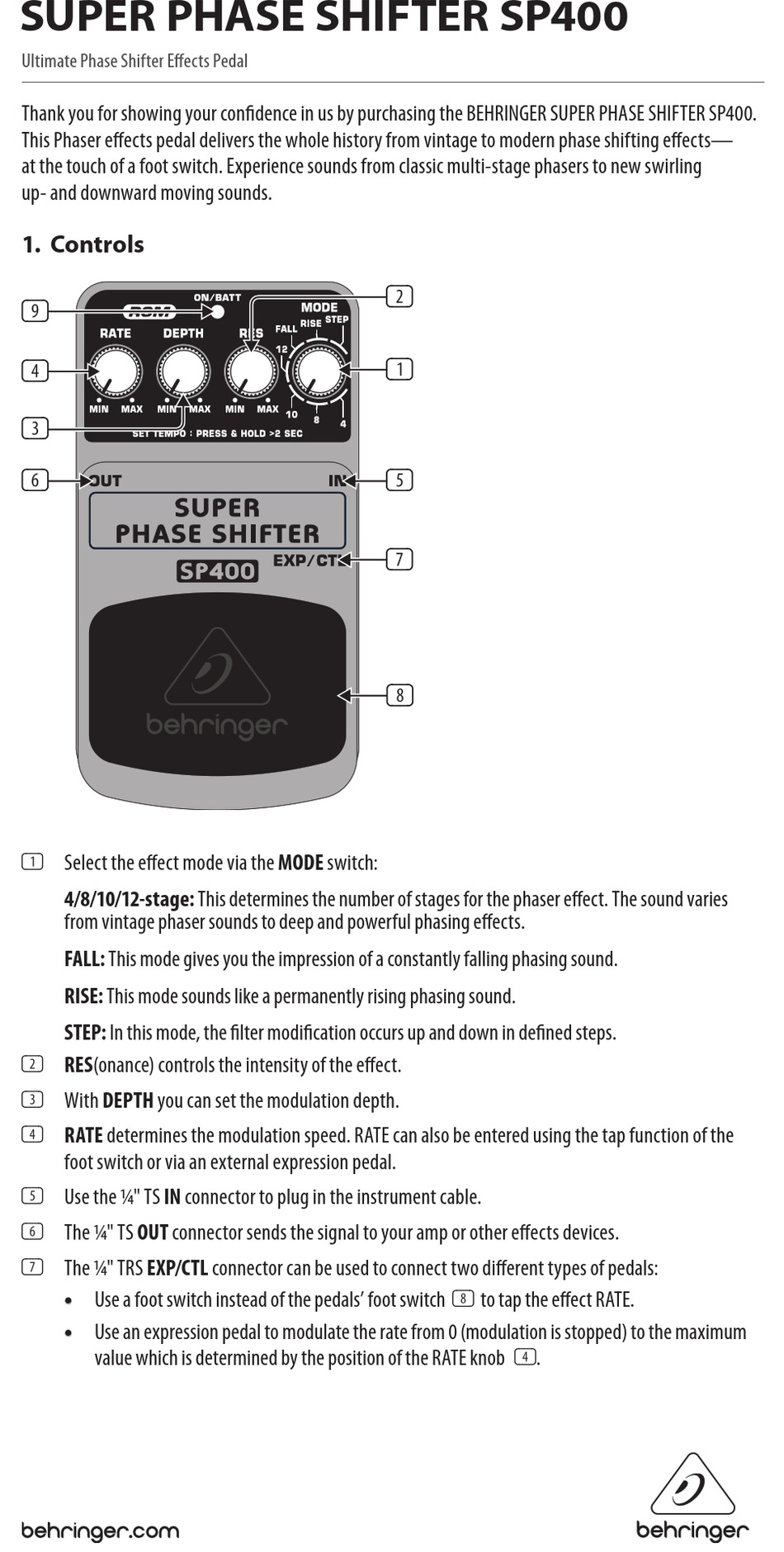

1. Controls
(9)
(4)
(3)
(6)
(1) Select the effect mode via the MODE switch:
4/8/10/12-stage: This determines the number of stages for the phaser effect. The sound varies
from vintage phaser sounds to deep and powerful phasing effects.
FALL: This mode gives you the impression of a constantly falling phasing sound.
RISE: This mode sounds like a permanently rising phasing sound.
STEP: In this mode, the filter modification occurs up and down in defined steps.
(2) RES(onance) controls the intensity of the effect.
(3) With DEPTH you can set the modulation depth.
(4) RATE determines the modulation speed. RATE can also be entered using the tap function of the
foot switch or via an external expression pedal.
(5) Use the ¼" TS IN connector to plug in the instrument cable.
(6) The ¼" TS OUT connector sends the signal to your amp or other effects devices.
(7) The ¼" TRS EXP/CTL connector can be used to connect two different types of pedals:
•
Use a foot switch instead of the pedals' foot switch (8) to tap the effect RATE.
•
Use an expression pedal to modulate the rate from 0 (modulation is stopped) to the maximum
value which is determined by the position of the RATE knob (4).
(2)
(1)
(5)
(7)
(8)
