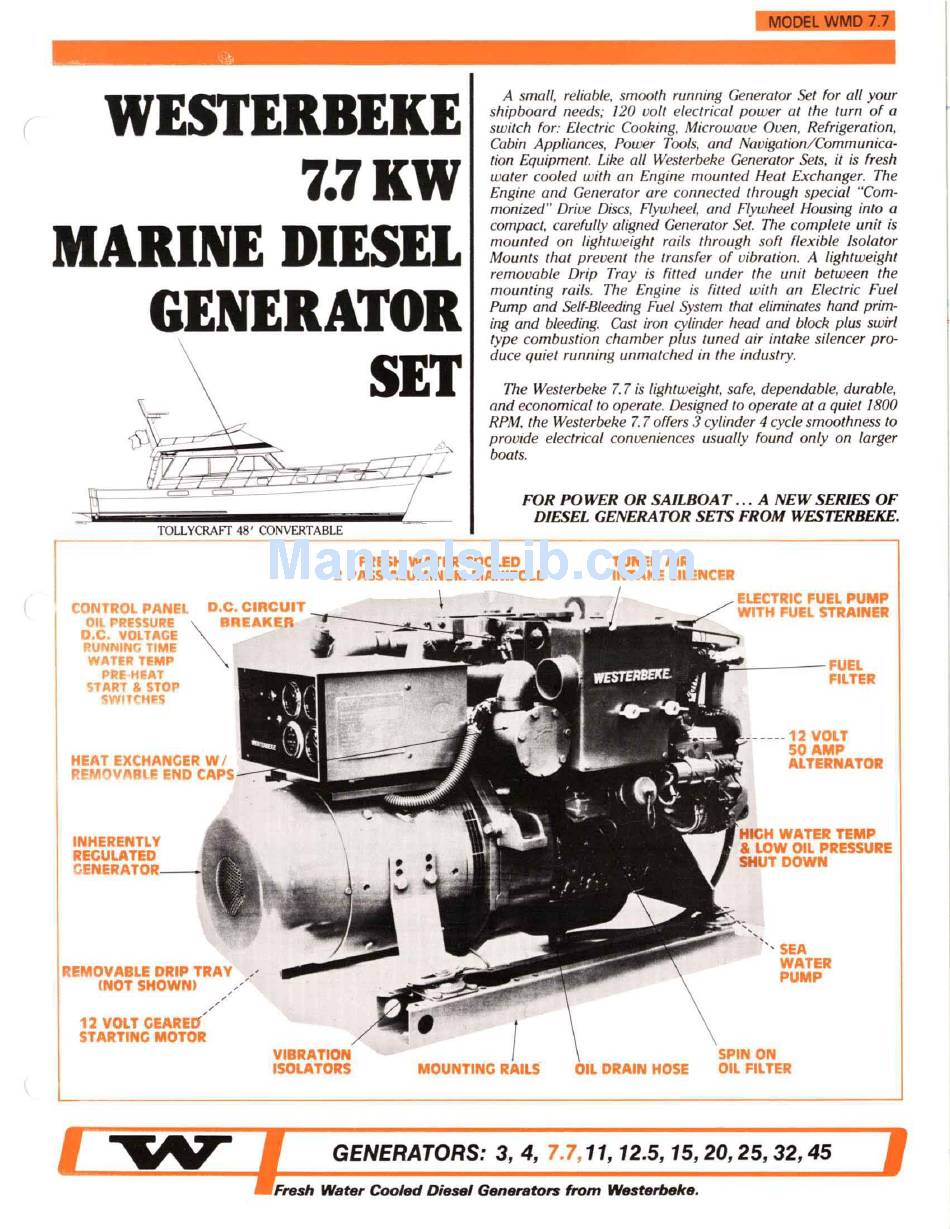

Westerbeke WMD 7.7 Specifications

(
WESTERBEKE
7.7KW
MARINE DIESEL
GENERATOR
SET
TOLL YCRAFf 48 ' CONVERT ABLE
A small, reliable, smooth running Generator Set for all your
shipboard needs; 120 volt electrical power at the turn of
a
switch for: Electric Cooking, Microwave Oven, Refrigeration,
Cabin Appliances, Power Tools, and Navigation/ Communica-
tion Equipment. Like all Westerbeke Generator Sets, it is fresh
water cooled with an Engine mounted Heat Exchanger. The
Engine and Generator are connected through special "Com·
monized" Drive Discs, Flywheel, and Flywheel Housing
into a
compact, carefully aligned Generator Set. The complete unit is
mounted on lightweight rails through soft flexible Isolator
Mounts that prevent the trans fer of vibration. A lightweight
removable Drip Tray is filled under th e unit between the
mounting rails. The Engine is filled with an Electric Fuel
Pump and Self·Bleeding Fuel System that eliminates hand prim·
ing and bleeding. Cast iron cylinder head and block plus swirl
type combustion chamber plus tun ed air intake silencer pro·
duce quiet running unmatched in the industry.
The Westerbeke 7.7 is lightweight, safe, dependable, durable,
and economical to operate. Designed to operate at
a
quiet 1800
RPM. the Westerbeke 7. 7 offers 3 cylinder 4 cycle smoothness to
provide electrical conveniences usually found only on larger
boats.
FOR POWER OR SAILBOAT ... A NEW SERIES OF
DIESEL GENERATOR SETS FROM WESTERBEKE.
~
FRESH WATER COOLED
I _ __ . _ __ . _
2 PASS ALUMINUM MANIFOLD
TUNED AIR
INTAKE SILENCER
CONTROL PANEL D.C . CIRCUIT
OIL PRESSURE
~REAKER ~ '~--=""",,!.--'~
D.C. VOLTAGE ...
RUNNI NG TIME -.;
Y.
WATER TfMP
PREH~AT
. . . . . . . .
~
. .
iii
START
&
STOP
SWITC t1· ~
HEAT EXCHANCER
W I
REMOVAlllF END CAPS
INHERENTLY
RECULATED
REMOVABLE DRIP TRAY
(NOT SHOWN) /
12 VOLT CEAREO'
STARTINC MOTOR
,
VIBRATION
ISOLATORS MOUNTINC RAILS
ELECTRIC FUEL PUMP
WITH FUEL STRAINER
~
_ _ _ _ FUEL
FILTER
--- 12
VOLT
SO AMP
ALTERNATOR
HICH WATER TEMP
&
LOW OIL PRESSURE
SHUTDOWN
SEA
WATER
PUMP
SPIN ON
OIL FILTER
GENERATORS:
3,4, 7.7, 11, 12.5, 15, 20, 25,32, 45
Fl'flsh Wafe, Cooled Diesel Genel'flfol'S from WesterlJeke.
