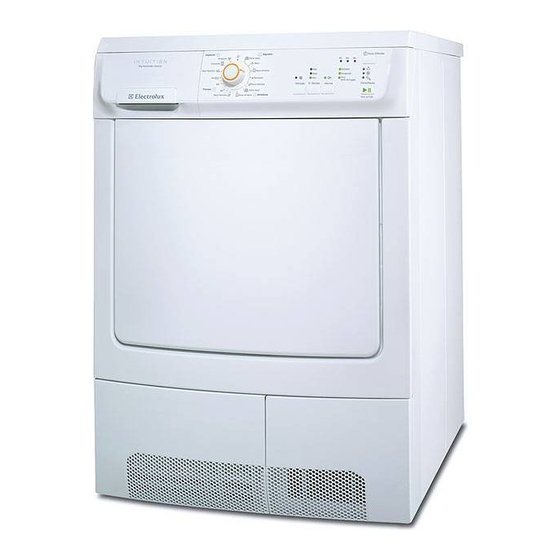

EDC 67150W


Table of Contents

Summary of Contents for Electrolux EDC 67150 W

  • Page 1: User Manual

    125986750_gb.qxp 2007-07-26 14:48 Page 1 user manual Tumble Dryer EDC 67150W...
  • Page 2 125986750_gb.qxp 2007-07-26 14:48 Page 2...
  • Page 3 Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual.
  • Page 4: Table Of Contents

    125986750_gb.qxp 2007-07-26 14:48 Page 4 4 electrolux contents electrolux Contents Safety information......5 Product description ......7 Control panel ........7 Use ..........8-11 Drying hints ........12-13 Drying programme .....14-15 Programme information ....16 Care and cleaning ......17 Something not working ....20-22 Technical data .........23 Consumption values ......24...
  • Page 5: Safety Information

    125986750_gb.qxp 2007-07-26 14:48 Page 5 safety information electrolux 5 Safety Information shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. Always unplug the appliance after In the interest of your safety and to use, clean and maintenance.
  • Page 6 125986750_gb.qxp 2007-07-26 14:48 Page 6 6 electrolux safety information Installation Do not dry unwashed items in the tumble dryer. This appliance is heavy. Care should be taken when moving it. Do not overload the appliance. See the relevant section in the user When unpacking the appliance, check manual.
  • Page 7: Product Description

    125986750_gb.qxp 2007-07-26 14:48 Page 7 product description/control panel electrolux 7 Product description Control panel Fluff filters Rating Plate Condenser unit Water reservoir Adjustable feet Control panel Programme selector dial Start/Pause button Delicate button Delay button Dryness button Buzzer button Indicator lights...
  • Page 8: Use

    125986750_gb.qxp 2007-07-26 14:48 Page 8 8 electrolux use First Use Ensure that the electrical connections comply with the installation instructions. Remove the polystryrene block and Select the required programme any material from the drum. Turn the programme selector dial to the Before using your tumble dryer for required programme.
  • Page 9 125986750_gb.qxp 2007-07-26 14:48 Page 9 use electrolux 9 At the end of the programme the times as necessary until the small light selector dial must be turned to at the level of residual dampness position O, to switch the machine off.
  • Page 10 125986750_gb.qxp 2007-07-26 14:48 Page 10 10 electrolux use Press this button to start the dryer after selected the programme and before having selected the programme and pressing START/PAUSE to start the the options. programme. The relevant light will stop flashing.
  • Page 11 125986750_gb.qxp 2007-07-26 14:48 Page 11 use electrolux 11 laundry. Turn the programme selector dial to “ “ O O ” ” to switch the machine off. “E E n n d d o o f f p p r r o o g g r r a a m m m m e e ” ” l l i i g g h h t t...
  • Page 12: Drying Hints

    125986750_gb.qxp 2007-07-26 14:48 Page 12 12 electrolux drying hints Drying hints drying (depending on crease resist- ance approx. 30 seconds or using the special brief spin programme of your washing machine). • Knitted textiles (knitted underwear) may shrink a little during drying.
  • Page 13: Drying Hints

    125986750_gb.qxp 2007-07-26 14:48 Page 13 drying hints electrolux 13 Maximum loads Recommended loads are indicated in the programme charts. General rules: Cotton, linen: drum full but not too tightly packed; Synthetics: drum no more than half full; Delicate fabrics and woollens: drum no more than one third full.
  • Page 14: Drying Programme

    125986750_gb.qxp 2007-07-26 14:49 Page 14 14 electrolux drying programmes Drying programmes Type of Description of programme Programme Options laundry Dryness Cotton and Drying thick or multi-layered textiles, e.g. terry towelling items linen Extra Max load: 6 kg Cotton and Dryness Drying thick textiles, e.g.
  • Page 15 125986750_gb.qxp 2007-07-26 14:49 Page 15 drying programmes electrolux 15 Drying programmes Type of Programme Options Description of programme laundry Special programme for cotton and Cotton Dryness Special easy care, which can drying together Cupboard dry in the same time. Synthetics...
  • Page 16: Programme Information

    125986750_gb.qxp 2007-07-26 14:49 Page 16 16 electrolux programme information Programme information Implementation Objective Water contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values. Relevant variations of the...
  • Page 17: Care And Cleaning

    125986750_gb.qxp 2007-07-26 14:49 Page 17 care and cleaning electrolux 17 Care and cleaning You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. The filter in the inner door must be E E x x t t e e r r n n a a l l c c l l e e a a n n i i n n g g removed for cleaning.
  • Page 18 2007-07-26 14:49 Page 18 18 electrolux care and cleaning Do n n ot u u se t t he a a ppliance w w ithout f f ilters. Clean it with a brush and rinse it under the shower if necessary.
  • Page 19 Page 19 care and cleaning electrolux 19 C C l l e e a a n n i i n n g g t t h h e e a a i i r r i i n n t t a a k k e e g g r r i i l l l l e e light reminds you this operation.
  • Page 20: Something Not Working

    125986750_gb.qxp 2007-07-26 14:49 Page 20 20 electrolux something not working Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
  • Page 21 125986750_gb.qxp 2007-07-26 14:49 Page 21 something not working electrolux 21 Malfunction Possible cause Solution When pressing a button, Washing protection. Turn the programme knob to OFF. Set the programme the corresponding After the start of the program- again button flashes several me, the option can no longer times.
  • Page 22 125986750_gb.qxp 2007-07-26 14:49 Page 22 22 electrolux something not working If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.
  • Page 23: Technical Data

    125986750_gb.qxp 2007-07-26 14:49 Page 23 technical data electrolux 23 Technical data Dimensions Width 60 cm Height 85 cm Depth 58 cm Electrical connection Information on the electrical connection is given Voltage - Overall power - on the rating plate on the inner edge of the...
  • Page 24: Consumption Values

    125986750_gb.qxp 2007-07-26 14:49 Page 24 24 electrolux consumption values Consumption values Programme Programme Energy Revolutions duration consumption (in minutes) (in kWh) minute Cottons Cupboard 1000 Cottons Iron 1000 Cottons Cupboard 1400 Cottons Iron 1400 1200 Synthetics Cupboard Max Cottons load:...
  • Page 25: Installation

    125986750_gb.qxp 2007-07-26 14:49 Page 25 installation electrolux 25 Installation To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface. Unpacking Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level.
  • Page 26 125986750_gb.qxp 2007-07-26 14:49 Page 26 26 electrolux installation Door reversal Electrical connection To make it easier to load or unload the Check that your domestic electrical laundry the door can be reversed. installation can take the maximum load required, also taking into account any other appliances in use.
  • Page 27: Environment Concerns

    125986750_gb.qxp 2007-07-26 14:49 Page 27 environment concerns electrolux 27 Environment concerns Ecological hints Packaging materials To save energy and to help protect the environment,we recommend that you follow these hints: The materials marked with the symbol Try to load the maximum capacity are recyclable.
  • Page 28: Guarantee Conditions

    The appliance is installed and used in 0800 to 1800 Mondays to Sundays accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for V V I I E E T T N N A A M M commercial purposes.
  • Page 29 125986750_gb.qxp 2007-07-26 14:49 Page 29 guarantee conditions electrolux 29 European guarantee...
  • Page 30 125986750_gb.qxp 2007-07-26 14:49 Page 30...
  • Page 31 125986750_gb.qxp 2007-07-26 14:49 Page 31 125 986 750-01-26072007...
