Page 1: User Manual

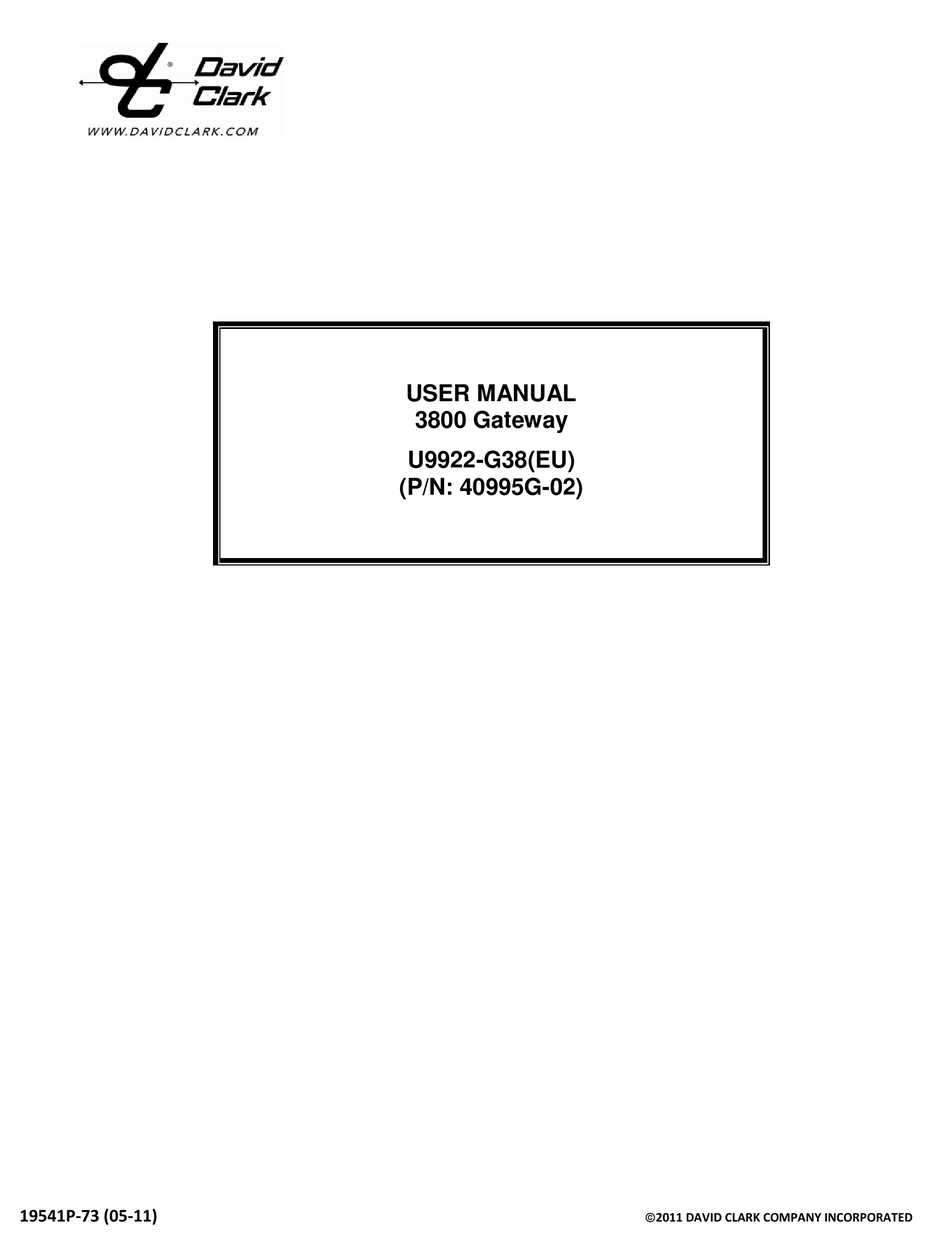

USER MANUAL 3800 Gateway U9922-G38(EU) (P/N: 40995G-02) 19541P-73 (05-11) 2011 DAVID CLARK COMPANY INCORPORATED... - Page 3 APPEARS DAMAGED. Upon unpacking your David Clark product, inspect the contents for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify your David Clark product supplier. ELECTRICAL HAZARD - Disconnect electrical power when making any internal adjustments or repairs.
- Page 4 The U9922-G38(EU) provides communication for up to four users as well as an interface to an existing David Clark Model 3800 wired intercom system. Additionally, the U9922-G38(EU) can be used as a stand-alone wireless intercom gateway with two-way radio interface. Up to four belt stations can be connected to one gateway.
- Page 5 Stand-alone configuration creates an ad-hoc wireless intercom and adds access to a two- way radio. This configuration does not connect to a 3800 wired intercom system. A C99- 22PW (18748G-24) power cable and optional C3821 radio interface cable are required for this configuration.
- Page 6 Before a belt station and a gateway can be connected, they must first be linked. As a security measure, the close-link feature requires devices to be in proximity of about 1 to 3 ft (0.3 to 0.9m) in order to successfully link. This ensures that the units are not inadvertently linked with other units on the premises.
- Page 7 Communication All connected belt stations will be able to communicate with each other through the U9922- G38(EU) while in range (and per the VOX settings on each VOX belt station.) Additionally, all belt station users will have communication over the intercom. If a two-way radio is installed to the U9922-G38(EU), pressing the PTT button on a VOX belt station will allow the user to transmit over the system’s two-way radio.
- Page 8 Radio Transmit Level Adjustment Procedure Note: A radio service monitor is recommended for this adjustment. 1. Connect at least one belt station to the U9922-G38(EU) gateway and ensure sidetone is present (see belt station User Manual). 2. Open the cover of the U9922-G38(EU) and find the large silver knob. 3.
- Page 9 Smart Purge A smart purge is the purge method employed for the U9922-G38(EU), in which only unwanted links are removed from the gateway. When this procedure is complete, only belt stations that are connected to the gateway remain linked. All other belt station links will have been removed (see the belt station User Manual for the individual belt station purging procedure when remaining link purging may be necessary.) Smart Purge procedure...
- Page 10 Power Requirements 8 to 32 VDC Changes or modifications not expressly approved by David Clark Company, Inc. could void the users’ authority to operate the equipment. Due to the DECT frequencies used, this product is licensed for operation only in the European Union countries.
