Page 1: User Manual

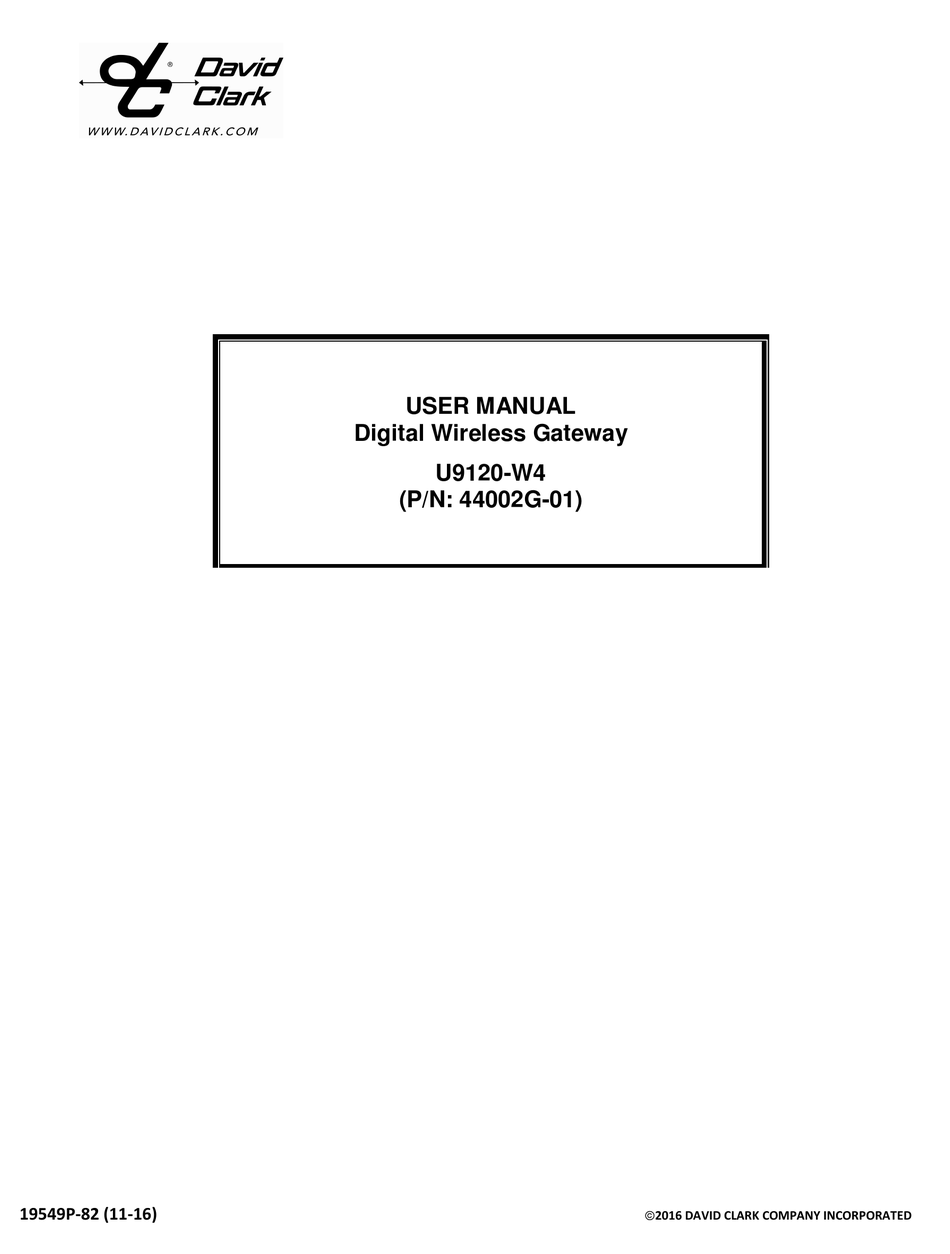

USER MANUAL Digital Wireless Gateway U9120-W4 (P/N: 44002G-01) 19549P-82 (11-16) 2016 DAVID CLARK COMPANY INCORPORATED... - Page 3 APPEARS DAMAGED. Upon unpacking your David Clark product, inspect the contents for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify your David Clark product supplier. ELECTRICAL HAZARD - Disconnect electrical power when making any internal adjustments or repairs.
- Page 4 The U9120-W4 (44002G-01) Digital Wireless Gateway is a fixed-mounted wireless communication device that, when used in conjunction with the Digital Intercom System and one or more U9100-series Wireless Belt Stations, becomes part of a digital wireless intercom system. The U9120-W4 provides communication for up to four users and integrates with the Digital Intercom System.
- Page 5 Intercom Interface The U9120-W4 is designed to add wireless capability to the Digital Intercom System. Mounting Select a location on a flat surface that is out-of-the-way, and provides adequate room to attach all cables. The U9104-W4 is immersion-proof (IP67). However where possible the mounting location should be chosen to minimize direct exposure to the elements.
- Page 6 Before a belt station and a gateway can be connected, they must first be linked. As a security measure, the close-link feature requires devices to be in proximity of between 1 to 3 ft (0.3 to 0.9m) in order to successfully link. This ensures that the units are not inadvertently linked with other units on the premises.
- Page 7 Communication Communication is defined by the Digital Intercom System and configured by the graphical user interface. See the Digital Intercom System manual (19549P-31) for more information. Range The unimpeded line-of-sight range of a belt station and a gateway should be at least 300 ft (100m).
- Page 8 Remote Antenna Kit, Mag-Mount (P/N: 40688G-93) • Remote Antenna Kit, Permanent (P/N: 40688G-96) The U9120-W4 is not user serviceable. Do not attempt to open the enclosure. If this product requires service, please contact the David Clark Customer Service department: • 800.298.6235 Phone: •...
-
Page 9: Radio And Television Interference
Changes or modifications not expressly approved by David Clark Company, Inc. could void the users’ authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Page 10 Due to the UPCS frequencies used, this product is licensed for operation only in the United States of America, Canada, and those countries that have approved the DECT 6.0 Standard. Refer to the U9120-W4 Data Sheet (19549P-49) for specifications. 19549P-82 (11-16) Page 8 of 8...
