Recording with a preamp such as the V-AMP 3:

Preamps such as the V-AMP 3 provide a great way to record a
wide selection of high-quality guitar sounds without the hassle
of placing a mic in front of a conventional amp. They also allow
you to record late at night without tempting your roommates or
neighbors to strangle you with your own guitar cable.
Plug a guitar into the instrument input of the V-AMP 3 using
•
a standard ¼" instrument cable.
Connect the stereo ¼" outputs on the V-AMP 3 to the
•
stereo RCA inputs on the UCA222. This will likely require
adaptors. You may also use the stereo RCA to ¼" TRS cable
that is included in the V-AMP 3/UCA222 package bundle
to connect from the V-AMP 3 headphone output to the
UCA222 RCA inputs.
Plug the USB cable into a free USB port on your computer.
•
The POWER LED will light up.
Adjust the output signal level on the V-AMP 3.
•
Set the recording program to record input from the UCA222.
•
Press record and wail!
•

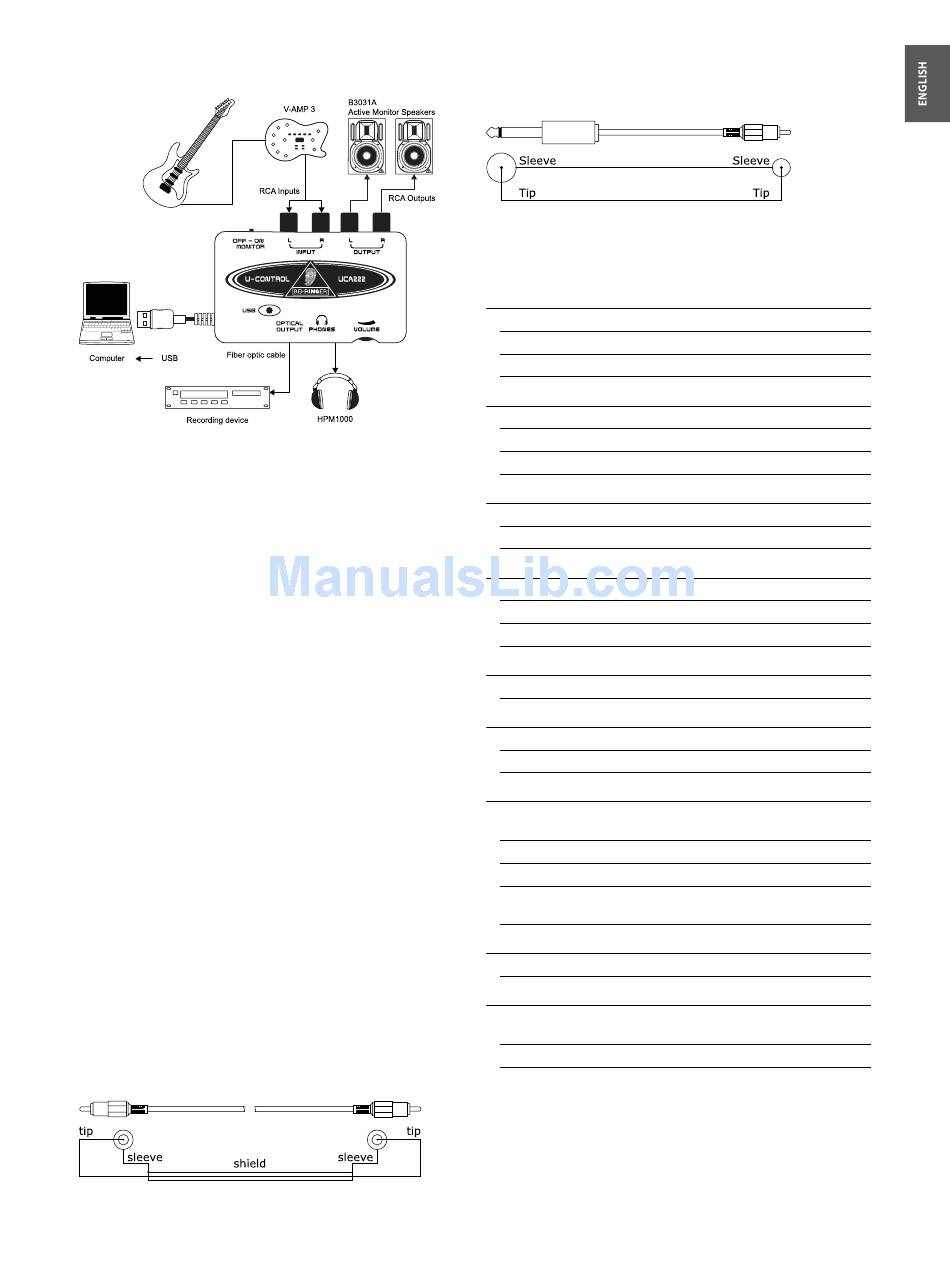

Audio Connections

Although there are various ways to integrate the UCA222 into
your studio or live set-up, the audio connections to be made will
basically be the same in all cases:

Wiring

Please use standard RCA cables to connect the UCA222 to other
equipment:
You can also use a ¼" adapter cable:

Specifications

LINE IN
Connectors RCA, unbalanced
Input impedance approx. 27 kΩ
Max. input level 2 dBV
LINE OUT
Connectors RCA, unbalanced
Output impedance approx. 400 Ω
Max. output level 2 dBV
DIGITAL OUTPUT
Socket Toslink, optical cable
Output format S/PDIF
PHONES OUT
Socket 1⁄ 8 " TRS stereo jack
Output impedance approx. 50 Ω
Max. output pegel -2 dBu, 2 x 3,7 mW @ 100 Ω
USB 1.1
Connectors type A
DIGITAL PROCESSING
Converter 16-bit converter
Sample rate 32.0 kHz, 44.1 kHz, 48.0 kHz
SYSTEM DATA
Frequency response 10 Hz to 20 kHz, ± 1 dB @ 44.1 kHz sample rate
10 Hz to 22 kHz, ± 1 dB @ 48.0 kHz sample rate
THD 0.05 % typ. @ -10 dBV, 1kHz
Crosstalk -77 dB @ 0 dBV, 1 kHz
Signal-to-noise ratio A/D 89 dB typ. @ 1 kHz, A-weighted
D/A 96 dB typ. @ 1 kHz, A-weighted
POWER SUPPLY
USB connection 5 V , 100 mA max.
DIMENSIONS/WEIGHT
Dimensions (H x W x D) approx. 22 mm (0.87") x 88 mm (3.46") x
60 mm (2.36")
Weight approx. 0.12 kg
BEHRINGER always takes great care to ensure the highest standard of quality. Any modifications
which may be necessary will be made without prior notification. Technical data and appearance of the
equipment can therefore differ from the details or illustrations shown.
