BRANCH WIZARD
®
ELECTRIC PRUNING SAW
OWNER'S MANUAL
MODEL DPS-1: 111409-01
IMPORTANT: Read and understand this manual before assembling or op-
erating this Pole Saw. Improper use of Pole Saw can cause severe injury.
Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRANCH WIZARD DPS-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Remington BRANCH WIZARD DPS-1

Summary of Contents for Remington BRANCH WIZARD DPS-1

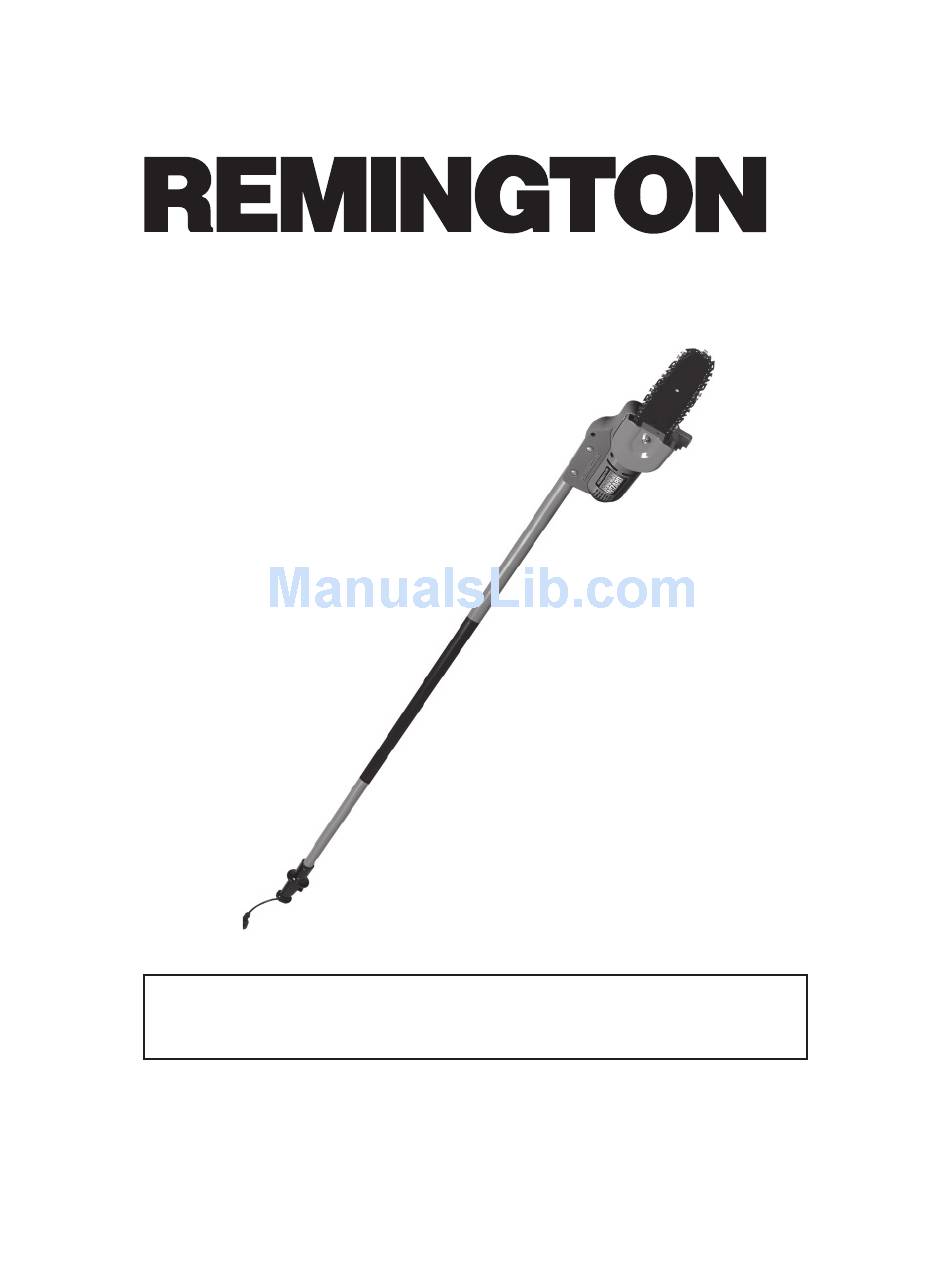

  • Page 1 BRANCH WIZARD ® ELECTRIC PRUNING SAW OWNER’S MANUAL MODEL DPS-1: 111409-01 IMPORTANT: Read and understand this manual before assembling or op- erating this Pole Saw. Improper use of Pole Saw can cause severe injury. Keep this manual for future reference.
  • Page 2 STOP STOP PARA PARA ARRÉT ARRÉT DO NOT RETURN PRODUCT TO STORE. CALL 1-800-626-2237 FOR TECHNICAL ASSISTANCE For more information, visit www.remingtonpowertools.com This manual is your guide to safe and proper operation of the saw. SAVE THESE INSTRUCTIONS. Keep your purchase receipt for warranty coverage. NO DEVUELVA EL PRODUCTO A LA TIENDA Para más información, www.remingtonpowertools.com PARA AYUDA TÉCNICA LLAME AL 1-800-626-2237...

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION ............... 4 Before Operating Saw ....................... 4 While Operating Saw ......................... 4 Kickback ............................ 5 Maintenance and Storage of Chain Saw ................... 5 POLE SAW TRIMMING PRECAUTIONS ..............6 UNPACKING ........................ 6 PRODUCT IDENTIFICATION ..................7 CHAIN SAW NAMES AND TERMS ................

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Before operating Pole Saw, make certain you read 9. Wear the following safety gear when operating Pole Saw: and understand all Important Safety Information. • heavy-duty gloves (wear rubber gloves when working outdoors) WARNING: When using an electric •...

  • Page 5: Kickback

    IMPORTANT SAFETY INFORMATION KICKBACK 12. Do not force Pole Saw while cutting. Apply light pressure. It will do the job better and safer at the rate for which it was intended. 13. When cutting a limb that is under tension, use WARNING: Kickback may occur when extreme caution.

  • Page 6: Pole Saw Trimming Precautions

    IMPORTANT SAFETY INFORMATION POLE SAW TRIMMING PRECAUTIONS Keep other persons away from cutting end of Pole Saw and at a safe distance from work area. Never stand directly under the limb you are trimming. Always position yourself out of the path of falling debris.

  • Page 7: Product Identification

    PRODUCT IDENTIFICATION MODEL DPS-1: 111409-01 Guide Bar Pole Saw Chain Trigger Switch Lock-out Grip Area Trigger Switch Handle Power Cord CHAIN SAW NAMES AND TERMS Guide Bar Metal bar that extends from saw body. Switch Lockout Device that reduces accidental The guide bar supports and guides chain.

  • Page 8: Assembly

    ASSEMBLY IMPORTANT: Read and understand this CAUTION: Do not place chain on saw manual before assembling or operat- backwards. If chain is backwards, saw ing this Pole Saw. Improper use of Pole will vibrate badly and will not cut. Saw can cause severe injury. Keep this manual for future reference.

  • Page 9: Saw Chain Tension Adjustment

    SAW CHAIN TENSION ADJUSTMENT Guide Bar Nut WARNING: Unplug Pole Saw from power source before adjusting saw chain tension. WARNING: Cutting edges on chain are sharp. Use protective gloves when Guide Bar handling chain. Guide Bar Correct Tension WARNING: Maintain proper chain tension always.

  • Page 10: Operating Chain Saw

    OPERATING POLE SAW OILING CHAIN WARNING: Read and understand this This Pole Saw requires lubrication only to prevent owner’s manual before operating this Pole rust on the guide bar and saw chain. The saw chain Saw. Make certain you read and under- provided is pre-lubricated at the factory.

  • Page 11: Cutting With Pole Saw

    OPERATING POLE SAW CUTTING WITH THE POLE SAW TRIMMING A TREE (PRUNING) 1. Connect Pole Saw to extension cord. Connect extension cord to power supply. WARNING: Avoid kickback. Kickback 2. Use both hands to grip Pole Saw. Use only can result in severe injury or death. See designated grip areas when operating Pole Saw Kickback to avoid risk of kickback.

  • Page 12: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Normal Guide Bar Maintenance NOTICE: Below are instructions for ser- 1. Remove guide bar from Pole Saw. vicing your Pole Saw. Any servicing not 2. Remove sawdust from guide bar groove periodi- mentioned below should be done by an cally.

  • Page 13: Sharpening Saw Chain

    CLEANING AND MAINTENANCE SHARPENING SAW CHAIN Depth Gauge (right side of chain) Depth Gauge (left side of chain) Groove WARNING: Unplug Pole Saw from Groove power source before servicing. Severe Top Plate injury or death could occur from electri- (left side of Top Plate (right side of cal shock or body contact with moving chain)/...

  • Page 14: Replacing Saw Chain

    REPLACING SAW CHAIN REPLACEMENT PARTS AND Replace chain when cutters are too worn to sharpen or ACCESSORIES when chain breaks. Only use replacement chain noted in this manual. Always include new drive sprocket when WARNING: Use only replacement replacing chain. This will maintain proper driving of parts and accessories described in this chain.

  • Page 15: Warranty Information

    WARRANTY INFORMATION REMINGTON BRAND ELECTRIC CHAIN SAW LIMITED WARRANTIES NEW PRODUCTS Standard Warranty DESA Power Tools warrants this new product and any parts thereof to be free from defects in material and workman- ship for a period of one (1) year from the date of fi rst purchase from an authorized dealer provided the product has been maintained and operated in accordance with DESA Power Tools’...

  • Page 16: Illustrated Parts Breakdown

    ILLUSTRATED PARTS BREAKDOWN/DESGLOSE ILUSTRADO DE PARTES/SCHÉMA DES PIÈCES MODEL/MODELO/MODÈLE DPS-1: 111409-01 This list contains replaceable parts used in your Pole Saw. When ordering parts, be sure to provide the correct model number (from the model plate), then the part number and description of the desired part.
