Assembly
Instructions
Read these
instructions carefully
Summit XC Triple
before use and
keep them for
future reference.
Amazing
360° Turns
Your child's safety may be
Make For
Extreme Maneuverability
affected if you do not follow
these instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUMMIT XC TRIPLE and is the answer not in the manual?

Questions and answers

Related Manuals for Baby Jogger SUMMIT XC TRIPLE

Summary of Contents for Baby Jogger SUMMIT XC TRIPLE

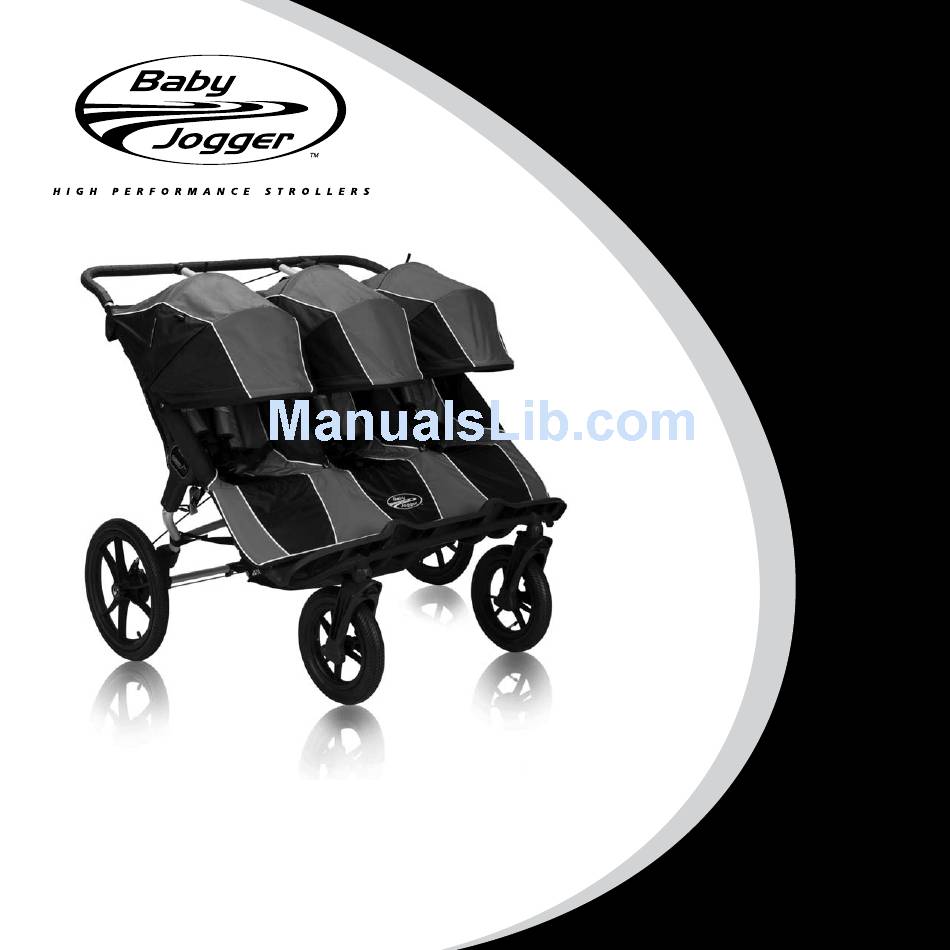

  • Page 1 Assembly Instructions Read these instructions carefully Summit XC Triple before use and keep them for future reference. Amazing 360° Turns Your child’s safety may be Make For Extreme Maneuverability affected if you do not follow these instructions.
  • Page 2 • DO NOT run/jog with children under 6 months of age in stroller seats. The sample product shown in this manual may differ slightly from your production quality Summit XC. However, this will not affect the assembly or functionality of your Baby Jogger product.
  • Page 3 Warning: Ensure all locking devices are engaged before use. Frame Unpack stroller from box and set rear Pull handlebar up and away from wheels aside. fork tips. Lay stroller flat so that both ends are resting on the floor. The stroller frame will click and lock into place.

  • Page 4: Front Wheels

    Front Wheels To install front wheels, lay stroller back so the Align the round openings on the tops of handle is resting on floor. the front forks with the round metal pegs underneath the foot plate. Slide the front wheels onto the metal pegs until they click into place.

  • Page 5: Rear Wheels

    Rear Wheels To install, gently slide the rear wheel’s axle into the hole in the frame until the wheel clicks into place. To remove, simply press the wheel button while gently sliding the wheel away from the frame.
  • Page 6 Warning: always be sure the safety strap is securely Seat snapped onto the frame before using stroller! Secure seat fabric to Secure seat straps around the bottom Secure safety straps to frame by lining up of the frame, behind the front wheels. both sides of the frame snap placement on Thread one seat strap through the...
  • Page 7 Reclining Seats To recline: Pinch the clamp behind the seat, and slide it down to desired recline. Pull seat down on both sides to match recline position of clamp. Warning: Do not recline Warning: Do not run/jog past point noted on recline with children under 6 months label when running/jogging.

  • Page 8: Safety Harness

    Warning: always use the crotch strap Safety Harness in combination with the shoulder straps and waist belt. Unclip top of shoulder strap from the seat and To adjust the shoulder and crotch strap length: re-clip on the pair of seat loops closest to your Remove the shoulder pads and slide the plastic child’s shoulder height.

  • Page 9: Hand Brake

    Warning: Engage parking device Brake before loading and unloading passenger. • Simply push brake pedal down to engage rear parking brake and lift up to release. Hand Brake To use the hand brake make sure brake pads are properly installed (see page 3). Squeeze the hand brake to give you better control over your stroller while jogging or running.
  • Page 10 Canopies To attach bracket to frame: Unsnap seat To attach canopy to bracket: Insert canopy from frame to reveal mounting location. frame into bracket and attach screws using Use a Phillips head screwdriver to attach a Phillips head screwdriver. bracket screws to frame. Wrap straps around frame and Velcro canopy strap around frame to itself.
  • Page 11 Basket Velcro front basket straps around frame tube. Front of seat will need to be turned up to access frame tube. Wrap rear basket straps around upright and snap together. noTE: The rear of basket has the mesh material and the front does not.

  • Page 12: Quick Fold Technology

    Warning: always be sure the safety Quick Fold strap is securely snapped onto the frame before using Technology stroller! Simple Lift & Fold (Patented) To fold stroller: Remove child from seat. Remove safety straps from frame. Pull upwards on the fold straps with a gentle tug.
  • Page 13 In Motion Steering • Steering your stroller is simple: It is balanced to turn with just a light touch on the handlebar without having to lift the front wheel. In the Dark • Since we are concerned about the safety of you and your child, we recommend that you not use your stroller at night.

  • Page 14: Stroller Care

    Stroller Care Washing • You can machine wash your stroller’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) • Be sure to remove the frame from the back of the seat before washing.
  • Page 15 Limited Lifetime Warranty: Baby Jogger warrants that the frame is free of manufacturer defects for the lifetime of the product. Manufacturer’s defects include but are not limited to the breaking of welds and frame tube damage. Textile or soft side materials and all other components shall be warranted for one year from the date of purchase (except for tubes and tires).
  • Page 16 If you have any questions or comments, please give us a call at: 1.800.241.1848 Baby Jogger is a Division of Dynamic Brands 8575 Magellan Parkway, Suite 1000 • Richmond, VA 23227 T: 800.241.1848 • F: 804.262.6277 • www.babyjogger.com...
