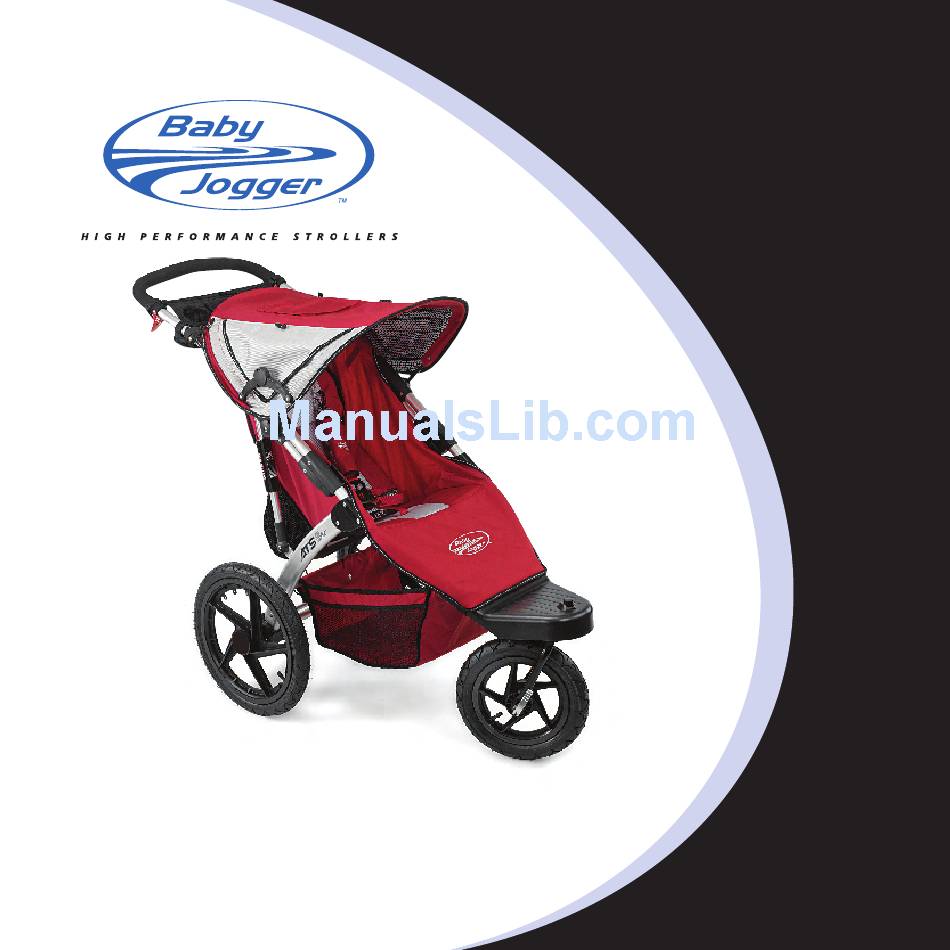

  • Page 1 Assembly Instructions Read these instructions carefully All Terrain Swivel before use and keep them for future reference. • 360° Swivel Front Wheel For Extreme Maneuverability Your child’s safety may be • Air Glide Suspension System For Smooth affected if you do not follow And Comfortable Ride these instructions.
  • Page 2 • Total weight load recommended for this stroller is 75 lbs. (34 kg.) (combined passenger and baggage weight.) • This stroller seats one passenger. • It may be unsafe to use replacement parts other than those supplied or approved by the manufacturer. • Never use roller blades while using a Baby Jogger.
  • Page 3 Warning: Ensure all locking devices are engaged before use. Frame Unpack stroller from box and set wheels aside. Flip stroller so handle is laying on top and pull handle up until frame locks into position.
  • Page 4 Footplate While holding onto footplate, push up on stroller frame until handle is laying on floor. This will allow you to look under footplate in order to secure it to frame. Lay footplate onto stroller frame. You may need to remove lower section of the seat to gain better access.

  • Page 5: Front Wheel

    Front Wheel Front Fork Skewer Latch To install front wheel, keep stroller with Insert the front wheel into forktips by handle resting on the floor and lock front aligning the axle flats with the forktips flats wheel forks by pushing down on locking and inserting the skewer latch into the button on footplate.

  • Page 6: Rear Wheels

    Rear Wheels • To install rear wheels, push on the button located at center of wheel and gently slide the wheel‘s axle into the hole in the stroller‘s axle end until you hear it click into place. • To remove, simply push in on the button located at center of wheel while pulling out the wheel.
  • Page 7 Basket Fasten front end of basket by securing Now secure the back end of the basket the basket snap straps around the frame around the center bar on the stroller frame. right above the footplate.
  • Page 8 Seat Your seat comes partially attached to the frame. Please follow the steps below to finish securing it. • Fasten the two bottom Velcro straps to their partner straps by threading each Velcro strap through the D-Ring and Velcro back to themselves.

  • Page 9: Reclining Seat

    Reclining Seat To recline: Pinch the clam and slide it down To return to the upright position: the recline strap to desired angle and gently Hold the D-Ring on the end of the recline push seat down with your hand. strap in one hand and use the other to pinch the clamp and slide it up the strap.

  • Page 10: Safety Harness

    Safety Harness To adjust the strap length: To buckle: Simply push side Unclip top of shoulder strap from the seat and Remove the shoulder pads buckle into center buckle until re-clip on the pair of seat and move the plastic guide it locks in place.
  • Page 11 Canopy To use your canopy simply pull forward To extend it to its fullest position, to the desired simply unsnap canopy strap and stage. pull forward. For more ventilation, roll up one or both Peek-a-boo window allows you to of the side panel flaps and secure them check on baby without having to go with the elastic loops.
  • Page 12 Brake Push center brake pedal down to engage rear parking brake. To release rear parking brake, simply lift up on center brake pedal. Warning: Engage parking device before loading and unloading passenger.
  • Page 13 Folding To fold stroller, simply squeeze fold latches When handle is halfway, reach over and grab located near handle of stroller while the LIFT strap located on seat and pull up. pushing down on handle.
  • Page 14 In Motion Steering • Steering your stroller is simple: It is balanced to turn with just a light touch on the handlebar without having to lift the front wheel. Wrist Strap • Make sure wrist strap is attached to bottom crossbar and is secured properly around your wrist whenever a child is in the stroller.

  • Page 15: Stroller Care

    Stroller Care Washing • You can machine wash your stroller’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) • Be sure to remove the frame from the back of the seat before washing.
  • Page 16 If you have any questions or comments, please give us a call at: 1.800.241.1848 Baby Jogger is a Division of Dynamic Brands 8575 Magellan Parkway, Suite 1000 • Richmond, VA 23227 T: 800.241.1848 • F: 804.262.6277 www.babyjogger.com...
