AZAMERICA S808 User Manual

Digital satellite receivers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S808

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S808 and is the answer not in the manual?

Questions and answers

Related Manuals for AZAMERICA S808

Summary of Contents for AZAMERICA S808

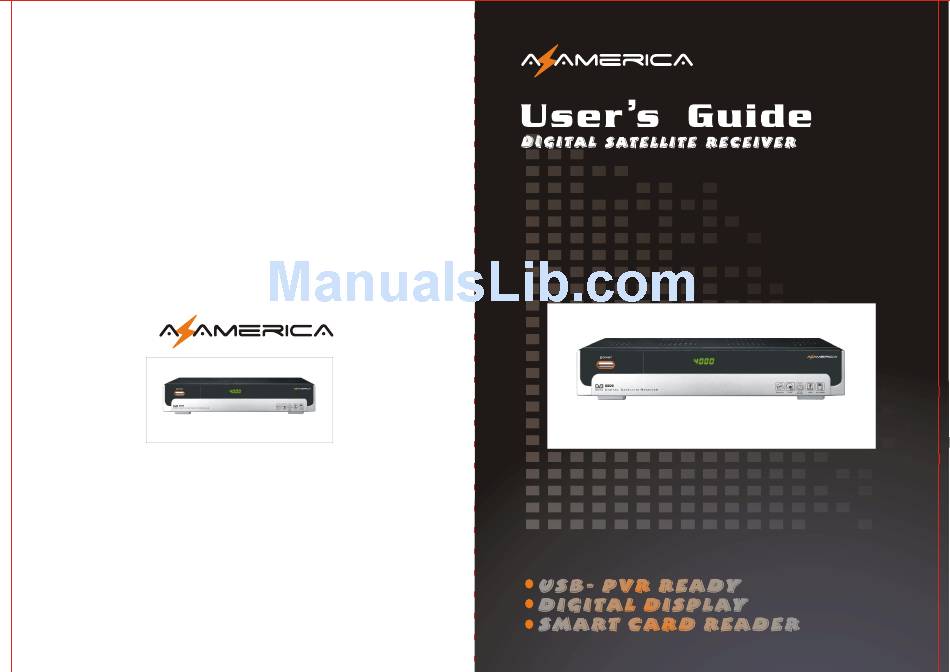

  • Page 1 S808...

  • Page 2: Table Of Contents

    GENERAL INFORMATION Main Features For your Safety Unpacking General Operation INSTALLATION Front Panel Rear Panel Connecting to TV using RCA support Connecting to Digital Amplifier MENU INFORMATION Main Menu 1. Channel List 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete All 2.
  • Page 3 4. Tools 4.1 Information 4.2 Factory Setting 4.3 Upgrade by USB 4.4 Conditional Access 4.5 USB 5. Game 6. REC 6.1 Record Mangager 6.2 PVR Setting 6.3 HDD Information 7. Hot key 7.1 Info 7.2 EPG 7.3 Find 7.4 Numer 7.5 TV/Radio 7.6 Up/Down 7.7 Left/Right...

  • Page 4: General Information

    A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full use of these feature.

  • Page 5: For Your Safety

    For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.

  • Page 6: Unpacking

    Remote Control Guide Audio/Video cable General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

  • Page 7: Rcu

    Function Turns power ON/OFF of the DSR When watching a channel, mute the sound Enter number of the required menu item or select a channel number to watch TV/RADIO Switches between TV and Radio mode Switches back to previous channel Displays the favorite group list Timeshift function key SHIFT...

  • Page 8: Installation

    Rear Panel Front Panel Rear Panel Rear Panel RF IN: CONNECT TO CABLE SINGAL RF OUT: CONNECT TO TV ANT INPUT CONNECT TO A DIGITAL AMPLIFIER CONNECT TO A PC FOR S/W UPGRADE COMPONENT VIDEO OUTPUT, ANALOGUE, HIGH DEFINITION. POWER ON/OFF CONNECT TO USB DEVICE CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER CONNECT VIDEO TO TV USING RCA JACK...

  • Page 9: Connecting To Tv Using Rca Support

    Connecting to TV using RCA support Satellite VIDEO AUDIO Dish Connecting to Digital Amplifier Satellite Dish DIGITAL AUDIO CONVERTOR OR AMPLIFIER DIGITAL AUDIO SPEAKER...

  • Page 10: Menu Information

    Main Menu Make sure that you have properly installed and connected the cables of the receiver.If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

  • Page 11: Channel List

    If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey. Sub-menu Turn grey when there is no program Channel List TV Channel List Radio Channel List Delete all...
  • Page 12 3. Press FAV key to move the FAV button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will find the favourite mark is displayed at the right side of the selected program.
  • Page 13 i . Sort (red colour key) Press red colour key to pop up the Sort drop-down list. Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z).

  • Page 14: Radio Channel List

    iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again. Press EXIT key to pop up the dialogue "Are you sure to save?".

  • Page 15: Satellite List

    2.2 Satellite List 1. Press PR+, PR- keys to select the satellite up or down. Press OK key to select and mark, and you can press OK key again to cancel the selection and the mark. 2. If there is no satellite, the red colour and blue colour keys will be invalid.

  • Page 16: Antenna Setup

    2.3 Antenna Setup Part A: Fixed Suppose that you have selected Fixed Antenna in the Antenna Connection window. 1. Satellite: All selected satellites in the satellite list are displayed in this item. Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm.
  • Page 17 Position No., & Save: The range is from 0 to 63. "0" delegates the original position. You can select the proper value when you has rotated the antenna. Go to X: Press OK key to pop up the drop-down list, select the proper position (reference or from 1to 63) to realize the selected position.

  • Page 18: Single Satellite Search

    7. Motor Setting: Press OK key to enter into the Motor setting window. Satellite, Transponder: Press keys to select satellite or transponder, or press OK key to pop up the drop-down list and select in the list. 2.4 Single Satellite Search 1.

  • Page 19: Tp List

    4. Network Search: Select between No and Yes. This item turns grey when Auto Scan is selected in the following Scan mode item. 5. Scan Mode: Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies. 6.

  • Page 20: System Setup

    5. Press blue colour key to pop up the TP Search window. FTA only, Scan Channel, Network Search: Press keys to select the proper option. Press OK key at the OK button to start searching. 3. System Setup 1. Press OK key or key to move the cursor to the right menu.

  • Page 21: Local Time Setting

    3.3 Local Time Setting 1. Summer Time: Select between ON and OFF. "OFF" delegates the normal time. If select ON, time will add one hour. 2. GMT Offset: When select "ON" in GMT Usage item, system will get the date and time information from the screen automatically.

  • Page 22: Osd Setting

    If select "On", you can not view the locked channel set in Chanel List Edit window until you have inputted the correct password. 3. New Password: User numeric key (0-9) to input the new password. 4. Confirm Password: Input the new password once again. Confirm password must be the same as the New password.

  • Page 23: Information

    4.1 Information Press OK key to the Information window. 4.2 Factory Setting Press OK key to enter into the Factory Setting window. Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased.

  • Page 24: Usb

    4.4.2 Change PIN Changes PIN window is designed for changing the smart card's PIN, which is required if you want change the maturity level settings. In order to change the PIN, you must know the current PIN also called the old PIN. Input the new PIN and twice the PIN (New PIN and Confirm PIN must be the same) your want to set.

  • Page 25: Game

    Function Key Yellow key: Press to show the Play List Red key: Press to show the Green key: Press to show add all music to th Play List 2.Press number key 1 to add all images to th Play List. 3.Press number key 2 to FAV:Press FAV key add Play List...

  • Page 26: Rec

    6. REC 6.1. Record Manager 1. Press PR+, PR- keys to select up or down, 2. Press green color key to lock the channel you selected, the lock symbol will be marked behind the channel. Before you lock the channel you must input the correct password, the default password is 0000.

  • Page 27: Hot Key

    7. Hot Key 7.1 Info Press INFO key to pop up the Info bar. Press INFO key again to pop up the program guide o f t h e c u r r e n t p r o g r a m . Yo u c a n p r e s s keys to know the program guide of the future 16 days.

  • Page 28: Numer

    7.4 Number Use the numeric keys (0-9) to input the number of the desired channel. If the inputted number is beyond the valid channel number, system will "No such a channel" and press OK key to close this message. 7.5 TV/RADIO In normal mode, press TV/RADIO key to switch between TV mode and Radio mode.

  • Page 29: Recall

    7.12 Recall Press key to switch the current channel to the previous channel. 7.13 FAV 1. Press FAV key to pop up the favourite group window. 2. Press keys to select the favorite group. Press PR+, PR- keys to select the channel up or down..
  • Page 30 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.

This manual is also suitable for:

S806
