CONNECTION

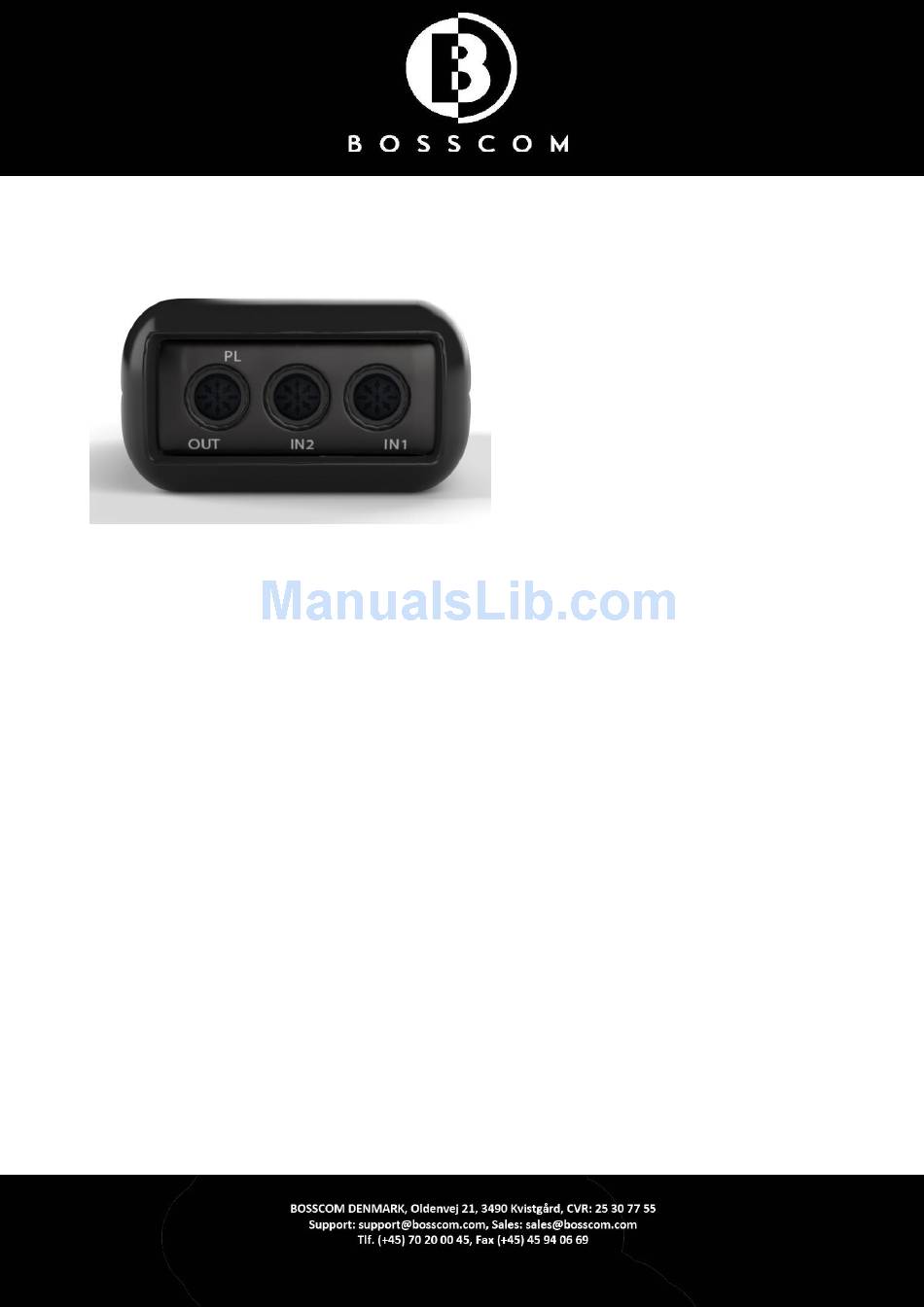

Front

OUTPUT (Powerlink output)
8 pole DIN socket
Pin 2 - Ground
Pin 3 - Output L
Pin 4 - Powerlink Mute circuit voltage (5 V DC) Pin 5 - Output R
INPUT 1
8 pole DIN socket
Pin 2 - Ground
Pin 3 - Input R
Pin 4 - Input for circuit voltage/trigger signal (5-15 V DC) to activate INPUT 1 (e.g.
Powerlink Mute)
Pin 5 - Input L
INPUT 2 - (Powerlink input)
8 pole DIN socket
Pin 2 - Ground
Pin 3 - Input R
Pin 4 - Powerlink Mute circuit voltage (5 V DC) Pin 5 - Output R
