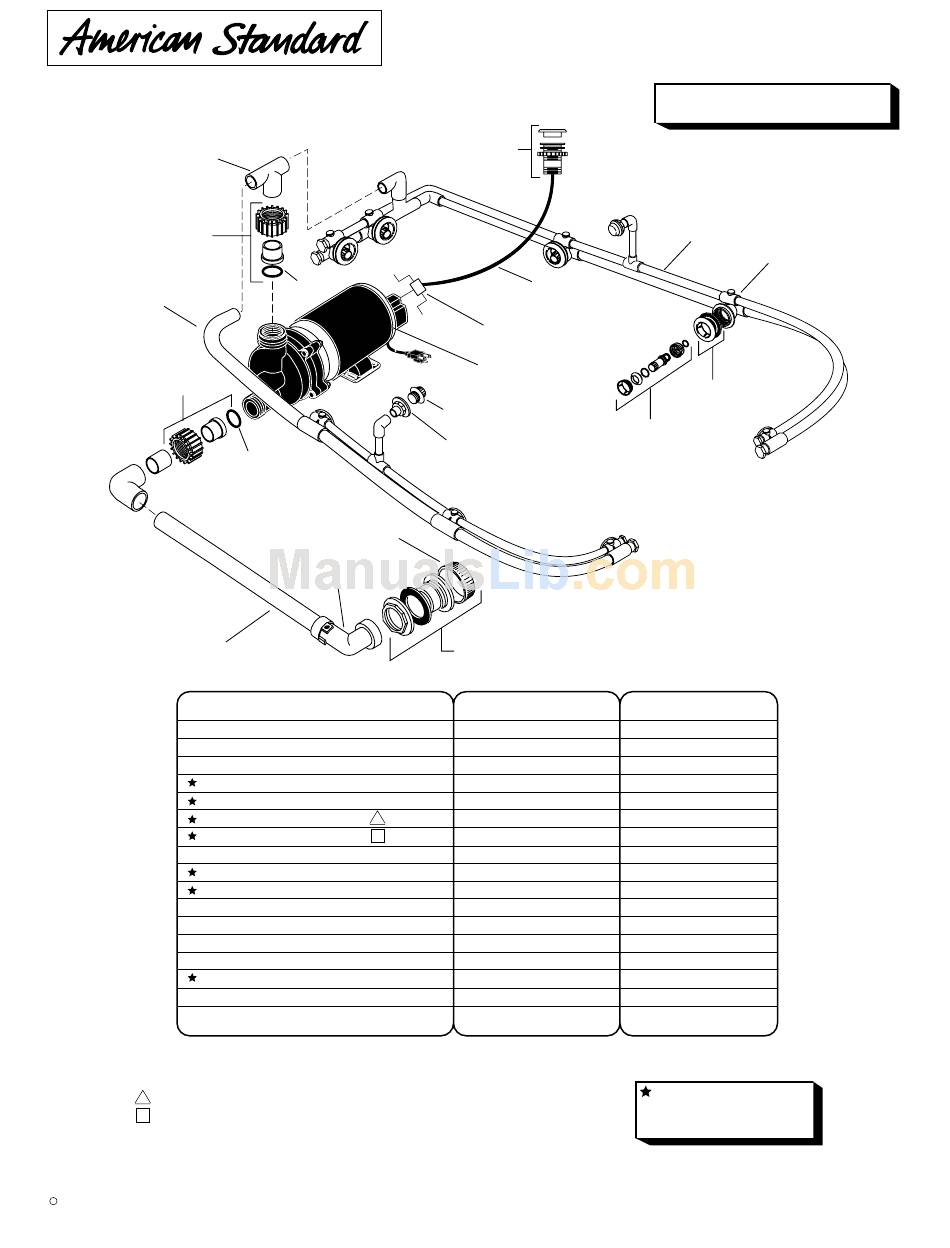

American Standard Cadet 2770.018 Parts Manual

DISCHARGE
TEE
PUMP
DISCHARGE
COUPLING
1" RIGID
PVC TUBING
PUMP
SUCTION
COUPLING
1-1/2" RIGID
PVC TUBING
Pump Suction Coupling
O-Ring
Pump Discharge Coupling
Air Control Valve
Air Control Valve Housing and Nut
Jet Nozzle Assembly
Escutcheon Assembly
Jet Body Assembly
Suction Guard
Suction Fitting
Suction Fitting Elbow
Discharge Tee
Pump w/Air Switch (1 HP)
Air Switch (See Section J)
Air Actuator Cap and Body
Air Actuator Tubing
NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets.
See Section "J" for Additional Parts and Accessories.
Removal/installation requires tool part no. 047530-0070A.
Removal/installation requires tool part no. 047605-0070A.
