Summary of Contents for Clarion M10 Series

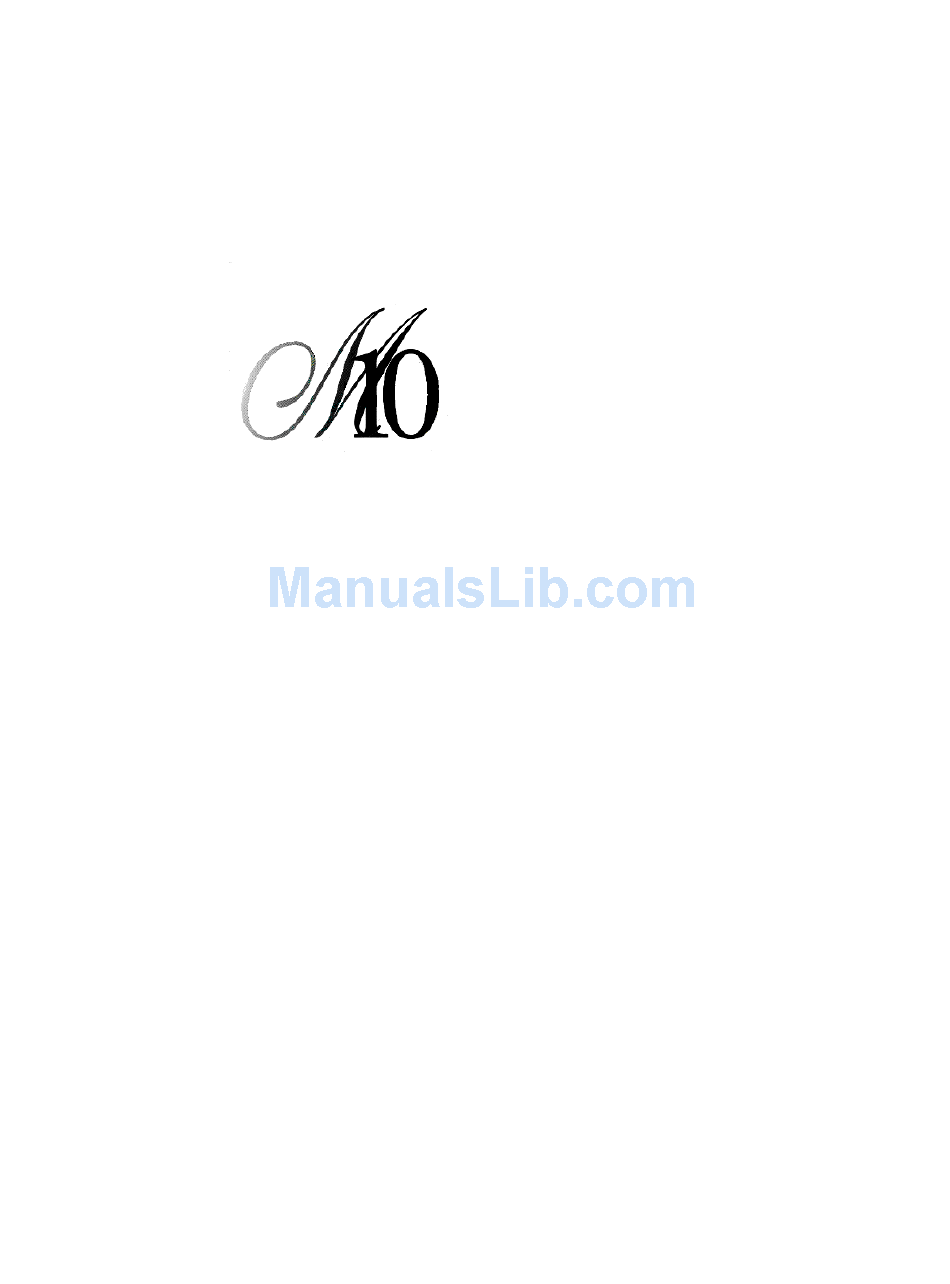

  • Page 1 10Mbps SPREAD SPECTRUM WIRELESS TRANSCEIVERS M10 Series User’s Manual Rev. 1...
  • Page 2 LANalyzer is a registered trademark of Novell, Inc. Copyright Copyright © 1996, Clarion Corporation of America. All rights reserved. No part of the contents of this document may be transmitted or reproduced in any form or by any means without the written permission of Clarion Corporation of America.

  • Page 3: Table Of Contents

    Absolute Maximum Ratings of the Driver (An7992B) _________________________ 22 4.4.1.3 Transformer (ST7032) _________________________________________________ 22 4.4.2 DC 6.2V PORT ___________________________________________________________ 22 4.4.2.1 Power Requirement ___________________________________________________ 22 4.4.2.2 Power Jack Requirement _______________________________________________ 23 LED Display _________________________________________________________ 24 M10 SERIES USER’S MANUAL PAGE III...
  • Page 4 7.2.1 INTRODUCTION TO TESTING THE M10II ___________________________________ 36 Testing Throughput ___________________________________________________ 42 7.3.1 DEFINITION OF THROUGHPUT____________________________________________ 42 7.3.2 SETUP FOR MEASURING THE THROUGHPUT _______________________________ 42 7.3.3 MEASURING PROCEDURE OF THROUGHPUT _______________________________ 43 CUSTOMER ASSISTANCE_________________________________________ 45 GLOSSARY ______________________________________________________ 47 M10 SERIES USER’S MANUAL PAGE IV...

  • Page 5: Introduction

    1.1.2 M10II The M10II is the second generation Clarion product in the M10 family. The M10II offers all the functions and features of the original M10 modem, as well as providing an important additional advantage to customers. The M10 SERIES USER’S MANUAL...
  • Page 6 The M10II maintains acknowledgment-address tables, however, it is not a bridge. For 802-compliant bridging the M10II can be connected to a MAC bridge, with the MAC bridge providing address tables obtained via the spanning-tree algorithm. M10 SERIES USER’S MANUAL PAGE 2...

  • Page 7: Summary Of Features

    Provides all the functionality of wired LANs without the wire No FCC License is required 1.2.2 ADDITIONAL FEATURES OF THE M10II Automatically senses local traffic, builds internal tables and operates re-transmission and packet filtering protocols Accommodates up to 200 NICs per network segment M10 SERIES USER’S MANUAL PAGE 3...

  • Page 8: Structure

    MAU port: The AUI port of an Ethernet device connects to the MAU port of the M10 through a transceiver cable (AUI cable). The connector type is physically the same as for a standard MAU. MAU Driver: Bi-directional driver to the MAU port. M10 SERIES USER’S MANUAL PAGE 4...
  • Page 9 Local OSC: provides local signals fed to the Up/Down Converter, to the RF Modulator and to the Down Converter. IF Amp: amplifies the IF (Intermediate Frequency) signal of 487 MHz, enough to be handled by the A/D Converter. M10 SERIES USER’S MANUAL PAGE 5...
  • Page 10 DC 6.2V port: The output of the AC adapter connects to this port. This voltage is tightly specified. Please contact to Clarion, if you want to use alternate power sources. LED: indicates operating situations of the M10. Please refer to specifications for details.

  • Page 11: Principles Of Operation

    The M10 senses signals after correlation, meaning that interference, such as microwave ovens and different kinds of wireless LAN systems, cannot be sensed. Data and spread-spectrum modulation onto a carrier of 2.4 GHz and RF transmission. M10 SERIES USER’S MANUAL PAGE 7...

  • Page 12: Download Process

    FEC encoded by reading PHY header. Checking of 32-bit CRC (generated by an Ethernet card that Uploaded the frame). Conversion of serial stream to bytes for storing in FIFO. Regeneration of the Ethernet preamble and frame sync. M10 SERIES USER’S MANUAL PAGE 8...

  • Page 13: Buffer Memory

    Figure 2.3.5 shows a conceptual signal flow diagram of the re-transmission. The use of MAC-level re-transmission protocol, recommended by 802.11 draft standard, is important for high throughput. Re-transmission via the level-four transport protocol must be avoided because of the long time-out typically employed. M10 SERIES USER’S MANUAL PAGE 9...
  • Page 14 (i.e. eight transmission totally). Accordingly, if no transmission of a frame was successful by the seventh re-transmission, the successful transmission will depend on the another re- transmission function provided by the protocol. M10 SERIES USER’S MANUAL PAGE 10...
  • Page 15 Ethernet Device M10 #1 M10 #2 Time-out Timer Time-out Timer Time-out Timer indicates missing of radio frames. Note: No duplicate frame is downloaded in case of single Ethernet device is connected to the M10. M10 SERIES USER’S MANUAL PAGE 11...

  • Page 16: Security

    If the user selects Enable of the diversity in the configuration setup, the M10 selects the antenna for each transmission. The antenna used for the transmission is memorized and used for the next transmission of a new uploaded frame. M10 SERIES USER’S MANUAL PAGE 12...

  • Page 17: Antenna Recognition (Antenna Sense Circuit)

    2.3.8 ANTENNA RECOGNITION (ANTENNA SENSE CIRCUIT) M10 uses a standard SMA connector for the attachment of external only antennas. Although there is a standard SMA connector Clarion approved antennas will work due to the Antenna Sense Circuit. Antenna Sense Circuit is an electrical verification that the attached antenna is FCC approved for use with the M10.

  • Page 18: Antenna Pointing

    The outdoor operating range with high gain antennas in line-of-sight operation is up to 5 miles. With special amplifiers purchased from HyperLink (see section 8. Customer Assistance for contact information) the user may reach up to 20 miles in line-of-sight operation. M10 SERIES USER’S MANUAL PAGE 14...

  • Page 19: Positioning

    Further improvement in throughput can be expected if the external directional antennas can be further isolated to reduce RF leakage. This can be accomplished by increasing the physical separation between the antennas or by locating the antennas in such M10 SERIES USER’S MANUAL PAGE 15...

  • Page 20: Channel Access Protocol

    (for security) the ability to perform carrier sensing is limited to acquisition of the preamble portion of a transmission. The channel-access protocol (CAP) employed in the M10 is called P-persistent CSMA. M10 SERIES USER’S MANUAL PAGE 16...

  • Page 21: Appearance

    3.3 Front and Rear Panel Figure 3.3 Internal antenna (inside the top cover) MAU port MAU LED TX LED External antenna port RX LED Power LED port DC 6.2V Power FCC Certification label (bottom) M10 SERIES USER’S MANUAL PAGE 17...

  • Page 22: Specifications

    : Peer to peer Note 1 JX-4000F-S has own MAC address for configuration of operating parameters. JX-4000F-S also memorizes single MAC address of attached Network Interface Card(s) for re- transmission protocol. Spread Spectrum p-persistent CSMA M10 SERIES USER’S MANUAL PAGE 18...

  • Page 23: Radio

    2. Input power at which the throughput without re-transmission degrades to 75% of typical throughput (See Figure 4.2). 3. For receive and transmission. Figure 4.2 Throughput (Mbps) H1 : typical throughput H2 = 0.75 Pi : Sensitivity Received input power M10 SERIES USER’S MANUAL PAGE 19...

  • Page 24: Network

    60 dB attenuator and uni-directional data flow. 2 Time for self checking and stabilization of radio operating point. If AC power is switched, additional time must be considered because of its time constant. M10 SERIES USER’S MANUAL PAGE 20...

  • Page 25: Port

    9 Control in- 9 Control out- 1 Shield 1 Shield 6 Voltage common 6 Voltage common 13 Voltage+ 13 Voltage+ 14 Shield 14 Shield Shield Protective Ground Shield Protective Ground 1000pF JX-4000F-A Chassis Ground M10 SERIES USER’S MANUAL PAGE 21...

  • Page 26: Absolute Maximum Ratings Of The Driver (An7992B)

    Parameter Min. Typ. Max. Unit Note Supplied DC Voltage 6.00 6.20 6.85 Vdc Ripple and Spurious 100 mVp-p Current Consumption (TX) 2.0 A Current Consumption (RX) 1. Measured at current draw of 1.8 A. M10 SERIES USER’S MANUAL PAGE 22...

  • Page 27: Power Jack Requirement

    4.4.2.2 Power Jack Requirement Ground 5.5 mm outer diameter Positive pin 2.1 mm inner diameter Pin length 10 mm Positive Ground (mm) Figure 4.4.2.2 Note Ground is connected to a chassis of the M10. M10 SERIES USER’S MANUAL PAGE 23...

  • Page 28: Led Display

    2. It will not illuminate continuously if there is unsuitable supply voltage. Note-1 : The turn-on period is very brief. The intensity of the flickering is proportional to the throughput of traffic. M10 SERIES USER’S MANUAL PAGE 24...

  • Page 29: Emissions

    FCC part 15 (Radio Frequency Devices) Subpart C (Intentional Radiator) 4.7 Environmental Operating Temperature Range Specification Guaranteed 0ºC ~ +40ºC Operation Guaranteed -10ºC~+50ºC Storage Temperature Range : -20ºC +60ºC Humidity 0% ~ Vibration 0.4 G (peak to peak) M10 SERIES USER’S MANUAL PAGE 25...

  • Page 30: Spectrum Mask

    Scale 10 dB/div l Sweep Time Auto 3. Using unit of dBm/MHz for power density. 4. Using continuous spreading transmission with pseudo-random data initiated by sending special command to the M10 through MAU port M10 SERIES USER’S MANUAL PAGE 26...

  • Page 31: Configuration

    The following utilities will be included on diskette for the M10II. Typing the name followed by a question mark will show the usage syntax. MIImqry.exe allows monitoring of the configuration. M10 SERIES USER’S MANUAL PAGE 27...
  • Page 32 When using this, the OEM can shut off the M10II loop sense protocol since the table generation device will have that built in. An ANSII C program M10 SERIES USER’S MANUAL PAGE 28...

  • Page 33: Configuration Parameters

    CONFigFn1, CONFigFn0 selects 802.3/802.2 respectively as the packet response for configuration frames. CONFigFn1 is the default as it was in the M10. 5.3 Configuration Parameters The following is a list of the configurable parameters of the M10: M10 SERIES USER’S MANUAL PAGE 29...
  • Page 34 The number set in config is the binary exponent. P-CSMA slot- number P of 1 to 8 for each trial. M10 SERIES USER’S MANUAL PAGE 30...
  • Page 35 Duplicate filter function is available in case of one to one connection only. It means that if two or more modems are connected to a modem, duplication cannot be avoided. M10 SERIES USER’S MANUAL PAGE 31...
  • Page 36 Each JX-4000 has its own unique 12-hex-digit Clarion Null Address MAC ID that is used as default (00606F000000) Upload Address. However, one can select Clarion Null Address ‘00606F000000’ as Upload Address for convenience. ACK time-out 0xx6E to 0xxFE 0xx6E...

  • Page 37: Compliance With Standards

    This effect can be readily demonstrated using, for example, Perform 3®. 6.1.2 FLOW CONTROL UPLOAD When no buffers are available for of AUI frames to the M10, some action is required. The M10 may: M10 SERIES USER’S MANUAL PAGE 33...
  • Page 38 Although using the signal for flow control is the default, the user must make an informed selection between these two possibilities based upon network topology, acceptable link behavior, and the requirements of the application software. M10 SERIES USER’S MANUAL PAGE 34...

  • Page 39: Recommended Test Procedure

    You may also wish to try an inter-segment file transfer between two of the segments and a simultaneous local file transfer on the third segment. M10 SERIES USER’S MANUAL PAGE 35...

  • Page 40: Special Features Of The M10Ii

    NIC on the same segment, the M10II will not transmit that packet. The result is that local bandwidth is preserved and the radio must only support the total inter-segment bandwidth. Therefore many segments, each with 10 Mbps local M10 SERIES USER’S MANUAL PAGE 36...
  • Page 41 M10 SERIES USER’S MANUAL PAGE 37...
  • Page 42 If CONFigFl0 is issued remotely to a radio that is blocking, the blocking state is not exited. The radio will suspend any check for loops and will remain in the blocking state. A remote CONFigFl1 will put the blocking radio back into normal periodic M10 SERIES USER’S MANUAL PAGE 38...
  • Page 43 M10II) will not reduce the throughput on the local segment. This setting is a ratio of good transmissions to bad transmissions that the user sets. If the user sets the M10 SERIES USER’S MANUAL PAGE 39...
  • Page 44 Use the SendM10 utility but address the destination of the command to the MAC ID of the remote M10II (i.e. 00606Fxxxxxx). Even if the remote M10 SERIES USER’S MANUAL PAGE 40...
  • Page 45 CLARION M10 SERIES TESTING radio is set to use the Clarion null address instead of its own MAC ID, the radio’s MAC ID must be used for remote access. To allow a broadcast address to be used over the air would require handling multiple responses, which is not possible.

  • Page 46: Testing Throughput

    LAN analyzer has an AUI port, then this hub is not required. Attenuator: HP’s 8494A (0 - 11dB; 1dB step) and 8496A (0 - 110dB; 10dB step) or equivalent. Two attenuators are connected to provide wide variable range and precise adjustment. M10 SERIES USER’S MANUAL PAGE 42...

  • Page 47: Measuring Procedure Of Throughput

    7.3.3 MEASURING PROCEDURE OF THROUGHPUT 1. Setup as shown in Figure 7.3.2. The power sources of the M10s must also be connected (not shown in the figure). 2. Power on the M10s 3. Initiate hubs and LAN analyzers. M10 SERIES USER’S MANUAL PAGE 43...
  • Page 48 MSB is set to 1, then the re-transmission is suspended. Note-3: Destination address does nothing with this measurement. 5. Observe average utilization by LAN analyzer-2. 6. The average throughput can be calculated as (average utilization observed by LAN analyzer-2) * 10 Mbps. M10 SERIES USER’S MANUAL PAGE 44...

  • Page 49: Customer Assistance

    Office (listed below). A Software Utility Kit Diskette is included with your M10 product, the software contained in the utility kit is also available from the Clarion Sales Office or Micrilor’s home page: www.micrilor.com. For access the user name is M10, and the user password is M10. The kit contains:...
  • Page 50 8001 Irvine Center Drive, Suite 800 Irvine, California 92618 Telephone: (714) 790-3500 FAX: (714) 790-3599 Website: www.clarionwireless.com Antenna Kit Support Hyperlink Technologies 1201 Clint Moore Road Boca Raton, Florida 33487 Telephone: (561) 995-2256 FAX: (561) 995-2432 Website: www.hyperlinktech.com M10 SERIES USER’S MANUAL PAGE 46...

  • Page 51: Glossary

    Hz - Hertz: A measure of the number of cycles per second of a signal. One Hz is one cycle per second. Hub: A network central controlling device. IEEE - Institute of Electrical and Electronics Engineers M10 SERIES USER’S MANUAL PAGE 47...
  • Page 52 Throughput – A way of measuring the speed at which a system or link can accept, handle and output information. The amount of data that a communications channel can carry, usually in bits per second. M10 SERIES USER’S MANUAL PAGE 48...
