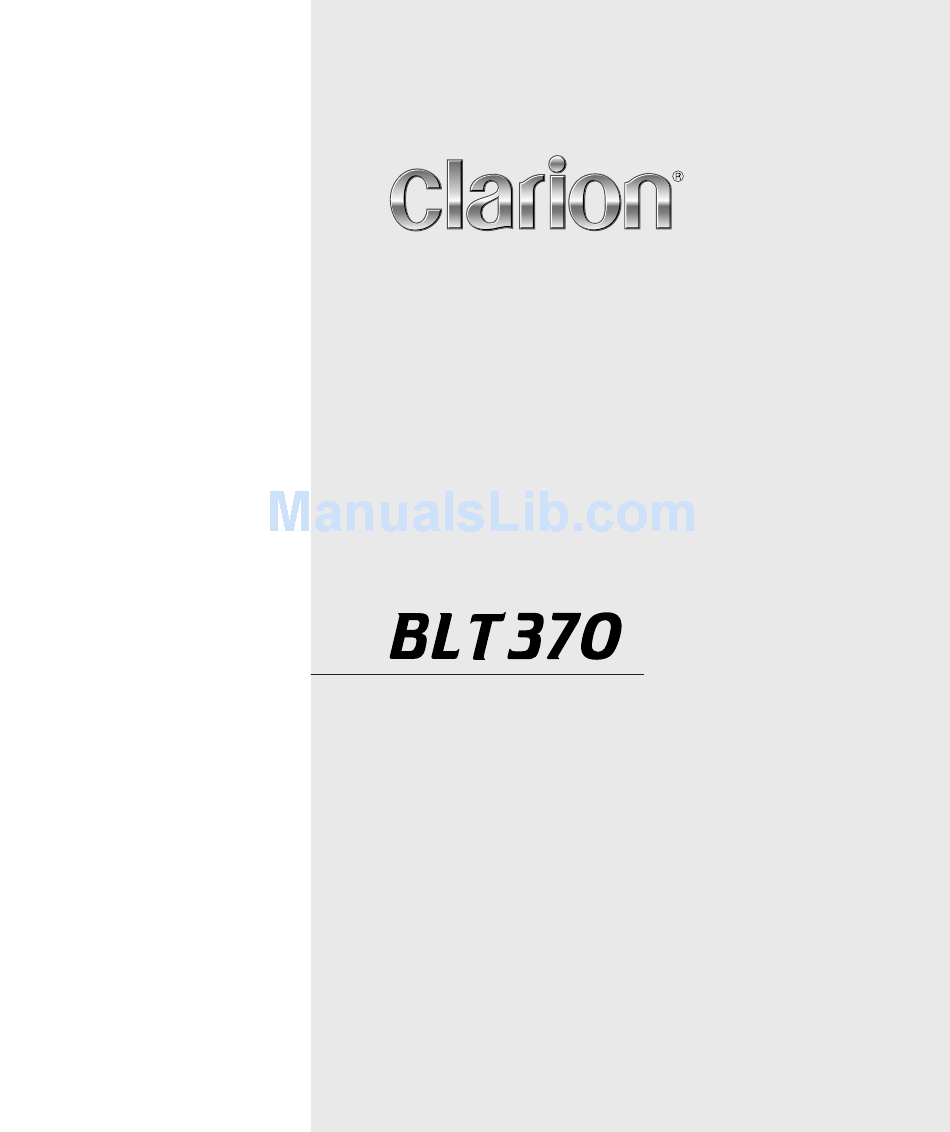

  • Page 1 Owner’s manual Manuel d’ installation et ode d’emploi Manual de Instalación/Propietario BLUETOOTH AUDIO/MOBILE-PHONE ® TRANSCEIVER FOR AUX INPUT EMETTEUR-RECEPTEUR AUDIO/TEL- EPHONE MOBILE BLUETOOTH POUR ® ENTREE AUX TRANSCEPTOR DE TELÉFONO MÓVIL/ AUDIO BLUETOOTH PARA ENTRADA ® AUXILIAR...
  • Page 2: Fcc Statement

    Apple Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use ® ® of such marks by Clarion is under license. Other trademarks and trade names are those of their respective owners.
  • Page 3: Table Of Contents

    Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. CONTENTS 1. WHAT IS INCLUDED IN THIS PACKAGE? ... 4 2.
  • Page 4: What Is Included In This Package

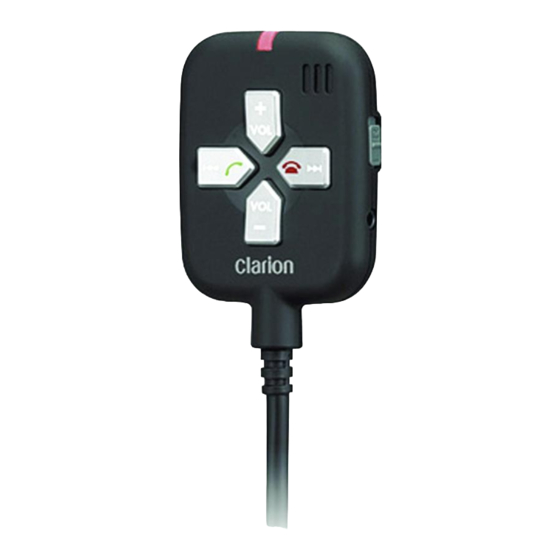

    1. WHAT IS INCLUDED IN THIS PACKAGE? A complete BLT370 package consist of the following items: Bluetooth Audio/Mobile-phone ® Transceiver unit with 2.5m cable and LC box BLT370 Velcro hook (x2) with double- sided tape attached Velcro loop (x2) with double-...
  • Page 5: Product Features Overview

    2. PRODUCT FEATURES OVERVIEW Clarion Bluetooth Audio/Mobile-phone Transceiver (BLT370) ® The BLT370 is a handsfree car kit featuring Bluetooth that allows you to utilize your car’s built-in audio system for wireless music streaming and wireless mobile phone handsfree communication. •...
  • Page 6 INT). Such mechanism can be used to notify the car stereo unit to switch mode when it detects incoming call and transferring call. Automatic Bluetooth If the Transceiver is paired to both a Clarion Bluetooth and Cradle for iPod ¹ and a mobile phone, when there is an incoming call, a ®...
  • Page 7: Installation

    Installing BLT370 This Transceiver unit is used to receive audio signals via Bluetooth technology from other Bluetooth The attached cable has a pair of auxiliary output, a 12V power connector (with LC box attached) and a TEL-INT (Telephone interrupt) pin.
  • Page 8 • Check that the location of the Transceiver is adequate to pick-up the car driver voice. • Alternately, user can use the external microphone (optional) that plug into the 2.5mm audio jack input for a better voice reception. Figure 2: Using Velcro with double-sided tape BLT370 Bluetooth Audio/Mobile-phone ® Transceiver unit (step 3)
  • Page 9 Incorrect wiring method may cause damage to BLT370, your car audio system or even your vehicle. • We strongly recommend that BLT370 is only installed by those fully familiar with your vehicle’s electrical system, please consult with the supply retailer if any doubt.
  • Page 10: What Is Pairing

    Passkey or PIN is a code that you enter on your mobile phone to pair it with the Transceiver unit. This makes your phone and the Transceiver unit recognize each other and automatically work together. BLT370 phones support either the headset ®...
  • Page 11: Pairing Sequence

    4. INTRODUCTION TO BLUETOOTH Pairing Sequence Note: • Please refer to Clarion Bluetooth manual for the Bluetooth Between Bluetooth Bluetooth Audio Transmitter ® 1. Make sure the Transmitter is connected to an audio source. 2. Make sure the car stereo source mode is switched to ‘AUX’ mode.
  • Page 12 (Transmitter and mobile phone) do not use the same profiles (A2DP and AVRCP), which are used for music streaming purposes at the same time. BLT370 ® device on the mobile phone. The Transceiver ®...
  • Page 13: Automatic Connection

    In such cases, the user will need to manually re-connect to the Transceiver through the mobile phone. Note: • If the Transceiver is switched off, some mobile phones may take a long time to detect the disconnection. “PAIRING” ® ® BLT370...
  • Page 14: Operations For Bluetooth ® Audio/Mobile-Phone Transceiver Unit

    5. OPERATIONS FOR BLUETOOTH PHONE TRANSCEIVER UNIT Buttons Terminology Please make sure you have read through chapter “Installing BLT370” on page 7 before proceed to the following operations. [ VOL + ] [ RESET ] ] button • During incoming call, press the button to pick up call.
  • Page 15 [ L/R ] selector • Switch to left or right channel output for phone conversation. Internal microphone • Built-in microphone for phone conversation. 2.5mm mic input • Connect to external microphone • Indicator that notifies the Transceiver status AUDIO/MOBILE- ® BLT370...
  • Page 16: Understanding The Transceiver Unit Indicators

    Notes: • When both red and blue LEDs are on, LED looks purple. • Mobile phone with music streaming will be under the same category as “Transmitter and mobile phone connected”. BLT370 LEDs Blink once Lights up for 2-3 sec...
  • Page 17: Basic Operations

    For more information on Bluetooth Sequence” on page 11. ® connection when the Transceiver is in pairing ® Transceiver pairing mode ® ] and [ ] buttons simultaneously for 2 seconds pairing mode. ® pairing, please see chapter “Pairing ® AUDIO/MOBILE- BLT370...
  • Page 18 16 for more information about the LED status. • The multiple re-connection attempts will be terminated if the Transmitter (DGL370) is connected. • Resetting the Transceiver will not change the multiple re-connection mode to original setting. BLT370 AUDIO/MOBILE- ®...
  • Page 19: Music Streaming And Playback Control

    • The Transceiver works as one way communication to the Transmitter. Thus, please avoid controlling the iPod and Transceiver at the same time as this might cause some incorrespondence operations between the both devices. AUDIO/MOBILE- ® CAUTION profile that ® profile ® BLT370...
  • Page 20 • For A2DP devices, after all 19 levels of volume adjustment have been exhausted, the Transceiver would start reducing/increasing the devices’ volume. BLT370 ] button for 1 second to restart the current song. ] button for 1 second or longer to select the next song.
  • Page 21: Making A Call

    Note: • The Clarion car stereo must activate the telephone interrupt mode to be able to work with the Transceiver. Please refer the car stereo owner’s manual of each model for details. Make sure that your mobile phone has set the Transceiver as the default headset/handsfree.
  • Page 22: Transferring A Call

    During a call, press the [ in the phone to transfer call back to car stereo. Note: • This function is dependent on the type of phone. Some phones are not supported. BLT370 AUDIO/MOBILE- ® ] button once. ] button twice.
  • Page 23 You can connect an external microphone to the Transceiver unit via the 2.5mm audio jack input for better voice reception. Audio input source will automatically switch from internal microphone to external microphone. Please consult your local authorized Clarion dealer for external microphone recommendation. Note: • Please use only 2.5mm jack external microphone.
  • Page 24: Compatible Models

    To enable handsfree function, the car stereo must have telephone interrupt function. Compatible with Clarion units from 2007 lineup with TEL and AUX function or consult your nearest Clarion dealer. Please check with your local dealer for compatibility with other car stereo.
  • Page 25: Troubleshooting

    The Bluetooth function is is ® your phone must be set to Automatic or ON. Turn on multiple re- connection mode and restart the Transceiver. Manually reconnect via link detection ® your phone. function ® function in ® BLT370...
  • Page 26 Transmitter to be muted. No sound contact between car handsfree and phone Telephone call is not interrupted to car stereo BLT370 Cause The car handsfree may Disconnect the other Bluetooth be connected to another Bluetooth device or Some phones can only ®...
  • Page 27: Specification

    Approx. 44mm (Width) x 63mm (Height) x 11mm (Depth) Approx. 160g 30Hz - 20kHz ~ 84dB 2.2k ohm Line level (1 Vrms) a) Adaptive acoustic echo cancellation (~ 48dB) b) Adaptive background noise suppression (~ 12dB) Max.16VDC 40 - 50mA 2.5m BLT370...
  • Page 28: Additional Information

    • Do not drop, throw or try to bend the product as rough treatment could damage it. • Do not use any other accessories than Clarion originals intended for use with this product. Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury.
  • Page 29: Radio Frequency Exposure

    RF energy may affect some electronic systems in motor vehicles such as car stereo, safety equipment etc. Check with your vehicle manufacturer’s representative to be sure that your mobile phone or this Bluetooth audio/ ® mobile-phone transceiver will not affect the electronic systems in your vehicle. BLT370...
  • Page 30: Potentially Explosive Atmospheres

    Areas with a potentially explosive atmosphere are often, but not always, clearly marked. Children Do not allow children to play this product since it contains small parts that could become detached and create a choking hazard. BLT370...
  • Page 31: Emergency Calls

    If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. 9. ADDITIONAL INFORMATION wireless technology and landline networks ® Audio/Mobile-phone ® BLT370...
  • Page 32 Clarion Co., Ltd. EA-1323B All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. 280-8524-01 Printed in Malaysia / ImprÌmé en Malaìsie / Impreso en Malasia...
