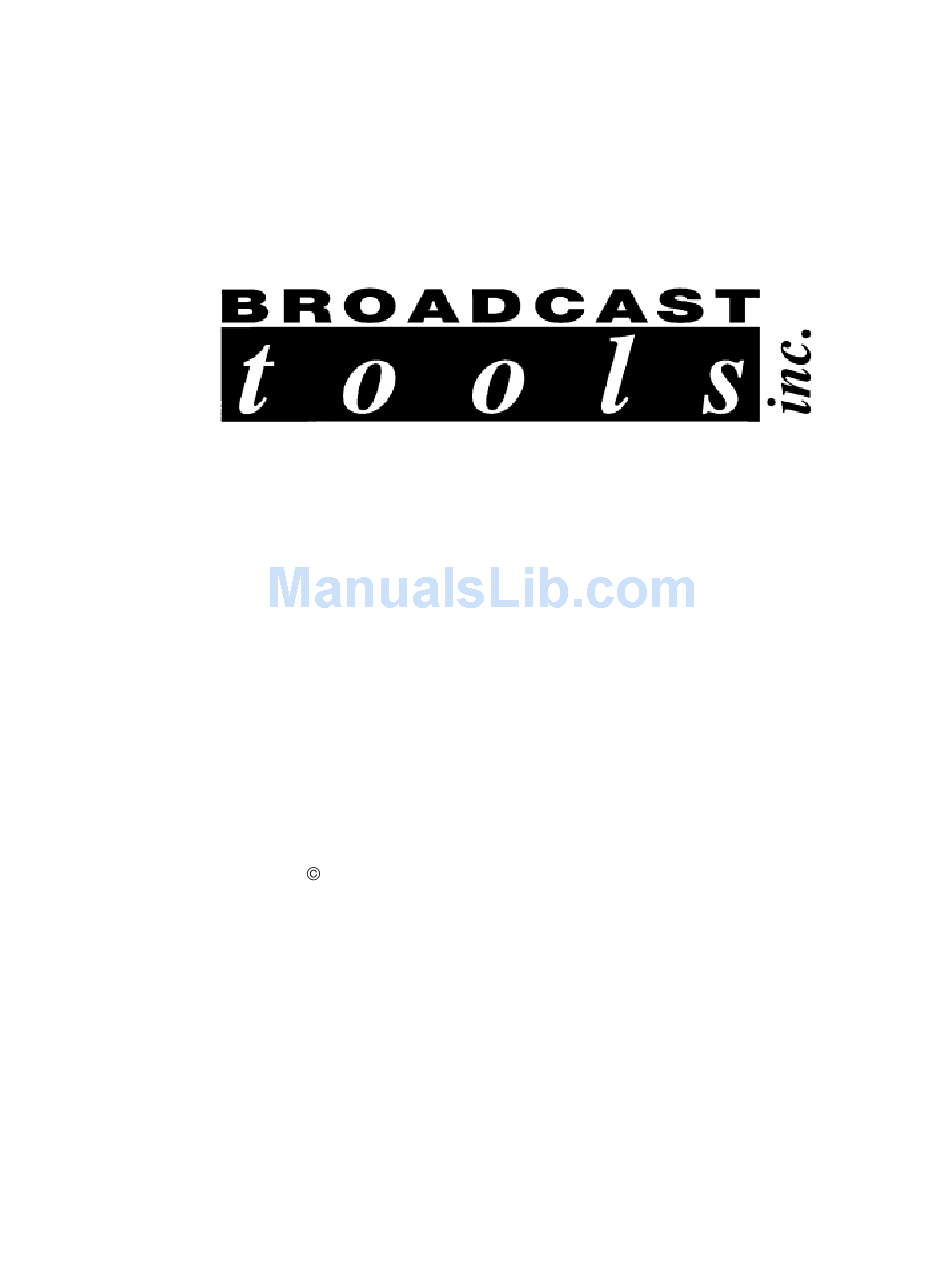

Installation and Operation Manual
for the
DSC-20
Dual Satellite Receiver Controller
Copyright
1996 – 2002 by Broadcast Tools, Inc. All rights reserved.
Except as permitted under the United States Copyright Act of 1976, no part of this
document may be reproduced or distributed without permission
SG, Virtex "StarGuide II or III" are ™ of StarGuide Digital Networks, Inc.
Wegener "Unity 4000" is a ™ of Wegener Communications.
"Premiere" is a ™ of Premiere Radio Networks.
"ABC" is a ™ of ABC Radio Network.
"WW1" is a ™ of Westwood One Radio Networks
SA "ENCORE" DSR-3610, AD-4595 are ™ of Scientific-Atlanta, Inc.
All specifications and features for this product are subject to change without notice.
SW Version > V 2.3
Manual update 02/06/2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Broadcast Tools DSC-20

Summary of Contents for Broadcast Tools DSC-20

  • Page 1 DSC-20 Dual Satellite Receiver Controller Copyright 1996 – 2002 by Broadcast Tools, Inc. All rights reserved. Except as permitted under the United States Copyright Act of 1976, no part of this document may be reproduced or distributed without permission SG, Virtex “StarGuide II or III“ are ™ of StarGuide Digital Networks, Inc.

  • Page 2: Safety Information

    DSC-20, Dual Satellite Receiver Controller Set-up guide INTRODUCTION Thank you for your purchase of a Broadcast Tools, Inc., DSC-20. We're confident that this product will give you many years of dependable service. This manual is intended to give you all the information needed to install and operate the unit.

  • Page 3: Product Description

    AD-4595 receivers. The DSC-20 provides a convenient means of service/ providers /program /channel /switching these receivers with contact closures, open collectors, or 5 volt TTL/CMOS logic. When the DSC-20 is controlled from a PC’s serial port, twenty, forty-eight character ASCII strings are provided for the above-mentioned receivers.

  • Page 4: Installation

    Step 1. Connect one end of the supplied modular cable to either J7 (Receiver # 1) or J8 (Receiver # 2) on the DSC-20 and the other end to the male 9 pin D- Sub to modular adapter labeled “V-9”.
  • Page 5 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide INSTALLATION Continued J1 Contact closure table for StarGuide II / III Receiver J1, Control Pin(s), Service: Audio Mode: Comments: Memory Locations: 1, NOTE 1 DATS 00 / 01 Dual 2, NOTE 1 DATS 09.0 / 09.1...
  • Page 6 DSC-20, Dual Satellite Receiver Controller Set-up guide INSTALLATION Continued COMPILING THE NEEDED INFORMATION TO PROGRAM THE DSC-20 Tool Tip: Take advantage of your program provider and receiver manual. They are great resources! 1 Have your receiver installed and authorized. Be sure you can manually select the program(s) from the receiver’s front panel keyboard and have a audio...
  • Page 7 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide INSTALLATION Continued The PORT SETTING window will appear. At the PORT SETTING window, 1. Change the baud rate to 9600, 2. Flow control to NONE 3. Then click OK button.

  • Page 8: Troubleshooting

    5 If your test was successful, remove the Male - Female, DB-9 straight through serial cable from the computer and receiver; proceed to the section labeled “Connecting the DSC-20 to your computers serial port”. If your test failed, follow the troubleshooting steps A through G that follows.
  • Page 9 Connecting the DSC-20 to your computers serial port Connect one end of the supplied modular cable to J5 (Computer) on the DSC-20 and the other end to the male D-Sub to modular adapter labeled “S-9”.
  • Page 10 DSC-20’s point of view of modular connectors. Modem control The DSC-20 may be operated remotely with the use of an external 9600-baud or greater AT compatible modem. Follow the instructions supplied with the modem for dumb modem (auto-answer) operation. The remote modem is normally supplied with a 25-pin D-sub connector.
  • Page 11 Step 10. Press <Q> to QUIT. Tool Tip: More than two receivers may be controlled by the DSC-20. By purchasing the SDD-8, Serial data (router) director, up to 32 additional receivers may be control from one receiver port of the DSC-20.
  • Page 12 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide INSTALLATION Continued Serial burst mode programming The Serial BURST mode data format is as follows: *PRMM<cr> Pxxxxxxxx = OPTIONAL Password (ID). = Indicates burst mode. = Recvr Port Number 1 or 2.
  • Page 13 DSC-20, Dual Satellite Receiver Controller Set-up guide INSTALLATION Continued Examples: Broadcast Tools, Inc DSC-20 Dual Satellite Controller V2.3 (c) 1997 DSC-20 Receiver Port Status: Recvr 1:(SG) Variable Recvr 2:(SG) Variable 1 - Set Recvr Port 1 to (SG) Variable Mode...
  • Page 14 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide ABC network string examples: SP A,P,1\enterSP A,S,19\enterAM A,0\enterenter (String for ABC NY, WOR 1/WOR 2, with normal audio) SP A,P,2\enterSP A,S,18\enterAM A,0\enterenter (String for ABC News, ESPN East, with normal...
  • Page 15 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide WW1 Network Program and Service Codes: Service Strings Programs Code / ID # Comments FOXTALK / WFAN Mets/Giants SP C,S,23\#AM C,0\## Bill O’Reilly is on Foxtalk CBS 36 / CBS 39...
  • Page 16 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide Premiere / NSN Program, Provider and Service Codes: Program Provider Code / ID # Service Audio String Code / Mode ID # Premiere One Mono SP x,S,8\## Premiere Two Mono...
  • Page 17 Broadcast Tools, Inc. DSC-20, Dual Satellite Receiver Controller Set-up guide Specifications Logic / memory: Microprocessor, Non-Volatile memory. J-1, “CONTROL” Input connector: 25 pin Male D-sub, mating connector/shell supplied. Inputs, CMOS, TTL compatible, 5-volt logic, active low. J-3, Power connector: 2.1mm, coaxial 9 volt AC, 500 ma. /w Green LED.
  • Page 18 EXCLUSIVE REMEDIES If Broadcast Tools is notified of in writing of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned in to Broadcast Tools in accordance with Broadcast Tools’...
