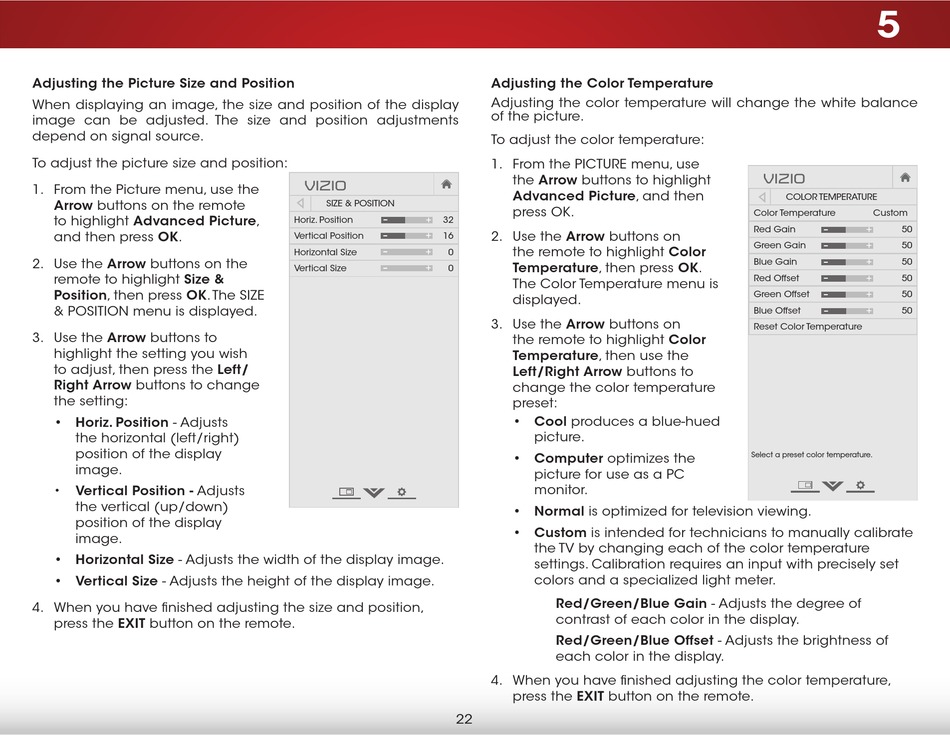

Adjusting the Picture Size and Position

When displaying an image, the size and position of the display
image can be adjusted. The size and position adjustments
depend on signal source.
To adjust the picture size and position:
1. From the Picture menu, use the
Arrow buttons on the remote
to highlight Advanced Picture,
and then press OK.
2. Use the Arrow buttons on the
remote to highlight Size &
Position, then press OK. The SIZe
& POSITION menu is displayed.
3. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press the Left/
Right Arrow buttons to change
the setting:
• Horiz. Position - Adjusts
the horizontal (left/right)
position of the display
image.
• Vertical Position - Adjusts
the vertical (up/down)
position of the display
image.
• Horizontal Size - Adjusts the width of the display image.
• Vertical Size - Adjusts the height of the display image.
4. When you have finished adjusting the size and position,
press the EXIT button on the remote.
VIZIO
SIZe & POSITION
-
+
Horiz. Position 32
-
+
Vertical Position 16
-
+
Horizontal Size 0
-
+
Vertical Size 0
22

Adjusting the Color Temperature

Adjusting the color temperature will change the white balance
of the picture.
To adjust the color temperature:
1. From the PICTUre menu, use
the Arrow buttons to highlight
Advanced Picture, and then
press OK.
Wide Zoom Normal Panoramic
2. Use the Arrow buttons on
the remote to highlight Color
Temperature, then press OK.
The Color Temperature menu is
Exit 2D 3D
displayed.
3. Use the Arrow buttons on
ABC
the remote to highlight Color
Temperature, then use the
Input Wide CC
Left/Right Arrow buttons to
change the color temperature
preset:
Sleep
• Cool produces a blue-hued
Picture Audio
Timer
picture.
• Computer optimizes the
picture for use as a PC
Network Settings Help
monitor.
• Normal is optimized for television viewing.
• Custom is intended for technicians to manually calibrate
the TV by changing each of the color temperature
settings. Calibration requires an input with precisely set
colors and a specialized light meter.
Red/Green/Blue Gain - Adjusts the degree of
contrast of each color in the display.
Red/Green/Blue Offset - Adjusts the brightness of
each color in the display.
4. When you have finished adjusting the color temperature,
press the EXIT button on the remote.
5
VIZIO
COLOr TeMPerATUre
Color Temperature Custom
-
+
red Gain 50
-
+
Green Gain 50
-
+
Blue Gain 50
-
+
red Offset 50
- -
+
Green Offset 50
-
+
Blue Offset 50
reset Color Temperature
Select a preset color temperature.
