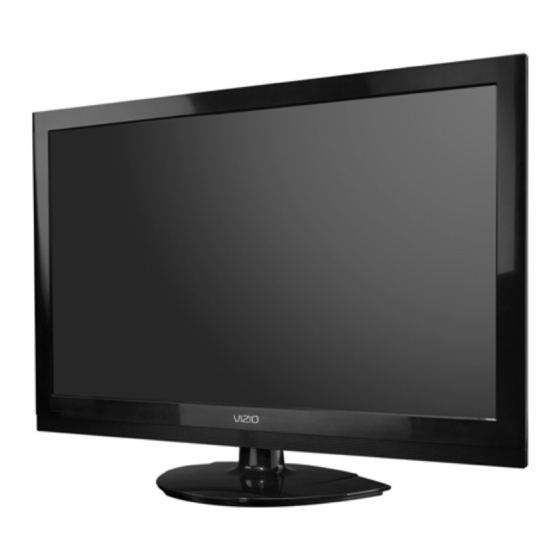

Vizio  E320VP User Manual

Vizio E320VP User Manual

Vizio hdtv user manual
Hide thumbs Also See for VIZIO E320VP:
Table of Contents

Advertisement

Dear VIZIO Customer,
Congratulations on your new VIZIO E320VP television purchase. To get
the most out of your new VIZIO HDTV, read these instructions before
making any adjustments, and retain them for future reference. We hope
you will experience many years of enjoyment from your new VIZIO High
Definition Television.
For assistance, call 877-MYVIZIO (877-698-4946) or e-mail us at
www.VIZIO.com.
To purchase or inquire about accessories and installation services for your
VIZIO HDTV, visit our website at www.VIZIO.com or call toll free at 888-
849-4623.
We recommend you register your VIZIO HDTV either at our website
www.VIZIO.com or fill out and mail your registration card. For peace of
mind and to protect your investment beyond the standard warranty, VIZIO
offers on-site extended warranty service plans. These plans give additional
coverage during the standard warranty period. Visit our website or call us
to purchase a plan.
Write down the serial number located on the back of your HDTV for easy
reference when obtaining warranty support:
Serial #: _____________________
VIZIO is a registered trademark of VIZIO, Inc. dba V, Inc.
HDMI logo and "High Definition Multimedia Interface" are registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
and
TruSurround HD and TruVolume technologies are incorporated under license from SRS Labs, Inc.
This product qualifies for ENERGY STAR in the "factory default (Home Use)" setting and this is the setting in which
power savings will be achieved. Changing the factory default picture setting or enabling other features will increase
power consumption that could exceed the limits necessary to qualify for Energy Star rating.
THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED
ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE AND OTHER
VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE. © 2010 VIZIO INC. ALL RIGHTS RESERVED.
Version 6/15/2010
Purchase Date _____________________
are trademarks of SRS Labs, Inc.
www.VIZIO.com
1
VIZIO E320VP User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIZIO E320VP and is the answer not in the manual?

Questions and answers

Pam
February 4, 2025

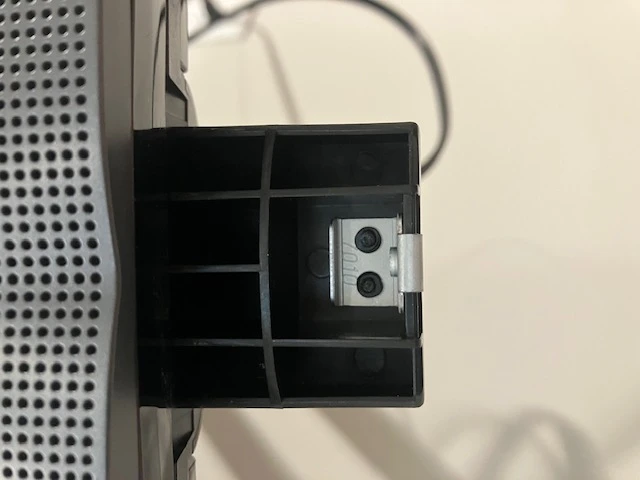

Where are the screws holding the stand neck?

User image 67a25478c88a1
2 comments:
Pam
February 4, 2025

p_august@hotmail.com

User image 67a2563d15d10
Mr. Anderson
February 10, 2025

The screws that hold the stand neck on the Vizio E320VP are located at the base of the TV where the neck attaches to the main body.

This answer is automatically generated

Summary of Contents for Vizio VIZIO E320VP

  • Page 1 THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 2: Important Safety Instructions

    VIZIO E320VP User Manual Important Safety Instructions Your HDTV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your HDTV from being damaged, the following rules should be observed for the installation, use, and maintenance of your HDTV. Read the following safety instructions before operating your HDTV.
  • Page 3 Liquid sprays or any object drops into your HDTV. Your HDTV is exposed to rain or other moisture. Your HDTV is dropped or damaged in any way. The performance of your HDTV changes substantially. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 4: Television Antenna Connection Protection

    VIZIO E320VP User Manual Television Antenna Connection Protection External Television Antenna Grounding If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.
  • Page 5: Advisory Of The Dtv Transition

    TTY: 1-888-TELL-FCC (1-888-835-5322) Fax: 1-866-418-0232 E-mail: fccinfo@fcc.gov NTIA (National Telecommunications and Information Administration) http://www.ntia.doc.gov/ 1-888-DTV-2009 Listings of US Television Stations http://www.high-techproductions.com/usTVstations.htm Note: Your VIZIO HDTV is capable of receiving Digital Broadcasts, and no Digital Converter Box is required. Version 6/15/2010 www.VIZIO.com...
  • Page 6: Table Of Contents

    Front Panel ... 12 Side Button Controls... 12 Rear Panel Connection ... 13 Side Panel Connections ... 13 CHAPTER 3 VIZIO REMOTE CONTROL ...14 Installing the Batteries ... 14 Remote Control Range... 14 VIZIO Remote Control Precautions... 14 Remote Control Buttons ... 15 CHAPTER 4 GETTING STARTED...16...
  • Page 7 Time & Local Settings ... 38 CEC... 39 Media Menu... 39 Slideshow Mode... 39 Repeat... 39 Sort By ... 39 Duration ... 40 Slideshow Effect ... 40 Thumbnail Size ... 40 Info ... 40 Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 8 VIZIO E320VP User Manual CHAPTER 9 MAINTENANCE AND TROUBLESHOOTING...40 Cleaning the TV and Remote Control ... 40 Troubleshooting Guide ... 41 TV/Display Troubleshooting... 41 Audio Troubleshooting ... 43 Remote Control Troubleshooting... 44 Telephone & Technical Support ... 44 CHAPTER 10 SPECIFICATIONS ...45 E320VP Specifications ...
  • Page 9  Blu-ray DVD Players VIZIO also offers installation services and extended warranty services for your HDTV. To purchase or inquire about additional accessories and services for your VIZIO HDTV, visit our website at www.VIZIO.com or call us toll free at 877-MYVIZIO (877-698-4946).
  • Page 10: Chapter 1 Setting Up Your Hdtv

    Avoid installing your HDTV in places with high humidity, dust, or smoke so you do not shorten the service life of the electronic components.  Install your HDTV in a level, landscape orientation, with the VIZIO logo at the bottom to prevent poor ventilation and excessive component damage. ...
  • Page 11: Wall Mounting Your Hdtv

    Read the instructions that came with your specific wall mount to properly hang your HDTV. Wall Mounting Specifications Screw Size Screw Length 12.0 mm Screw Pitch 0.7 mm Hole Pattern VESA standard 100 x 100 mm spacing Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 12: Chapter 2 Basic Controls And Connections

    VIZIO E320VP User Manual Chapter 2 Basic Controls and Connections Front Panel Remote Control Sensor—Point the remote control directly at this window on the lower left corner of your HDTV for the best response to the remote signal. Side Button Controls POWER ( button again to turn your HDTV off.
  • Page 13: Rear Panel Connection

     OPTICAL—When digital TV is selected for viewing, the audio associated with the programming will be available on the S/PDIF Optical connector for connection to a VIZIO Sound Bar or your home theater system. Side Panel Connections 1. HDMI 1 and 2—Connect digital video devices such as a DVD player 2.
  • Page 14: Chapter 3 Vizio Remote Control

    VIZIO E320VP User Manual Chapter 3 VIZIO Remote Control Installing the Batteries 1. Remove the battery cover. 2. Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment 3.
  • Page 15: Remote Control Buttons

    - (DASH)—Press to insert a dash between the main and sub-channels. For example, channel 28-2 would be selected by the button sequence 2, 8, DASH, 2. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 16: Chapter 4 Getting Started

    VIZIO E320VP User Manual Chapter 4 Getting Started Your HDTV has a built-in setup App that runs when you turn on your TV for the first time. Follow the on- screen directions to easily setup your new HDTV. 1. Insert the batteries into the remote control.
  • Page 17: Chapter 5 Using Your Hdtv For The First Time

    Also, verify that the AC/DC power adapter is plugged into a correctly grounded electrical outlet or surge protector. 1. Press the power button on the remote control. The VIZIO logo on the front will light up white. 2. Select the input to which your device is connected that provides TV programming (i.e. TV, HDMI, COMP/AV).
  • Page 18: Viewing Digital Tv Program Information

    VIZIO E320VP User Manual Viewing Digital TV Program Information When the channel is changed or when you press GUIDE, an information header is shown over the picture for a few seconds. Press GUIDE again to display more information about the program and schedule.
  • Page 19: Chapter 6 Connecting Equipment

    HDTV. Note: To maintain the display quality, use a VIZIO certified HDMI cable. This cable is available in 6, 8, and 12 foot lengths. Visit www.vizio.com or call 1-888-VIZIOCE (1-888-849-4623) for details.
  • Page 20: Connecting Your Cable/Satellite Box

    Cable and Satellite Boxes that have a HDMI digital interface should be connected using HDMI for optimal results. To maintain image quality, use a VIZIO certified HDMI cable. This cable is available in 6, 15, and 30 foot lengths. Visit www.VIZIO.com or call 877-MYVIZIO (877-698-4946) for details.
  • Page 21: Using Component Video (Better) Using Component Video (Better)

    COMPONENT L and R AUDIO jacks on your HDTV. 4. Turn on the power to your HDTV and Cable/Satellite box. 5. Select Comp/AV using the INPUT button on the remote control or side of your HDTV. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 22: Using Coaxial (Antenna) (Good)

    DVD players that have a HDMI digital interface should be connected using HDMI for optimal results. To maintain image quality, use a VIZIO certified HDMI cable. This cable is available in 6, 15, and 30 foot lengths. Visit www.VIZIO.com or call 877-MYVIZIO (877-698-4946) for details.
  • Page 23: Hdmi Connections For Dvd Players With Dvi

    COMPONENT L and R AUDIO jacks on your HDTV. 4. Turn on your HDTV and DVD player. 5. Select Comp/AV using the INPUT button on the remote control or side of your HDTV. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 24: Using Composite (Av) Video (Good)

    VIZIO E320VP User Manual Using Composite (AV) Video (Good) 1. Turn off the power to your HDTV and DVD player. 2. Connect the yellow video cable connector from your DVD player to the green Component Y jack on the side of your HDTV.
  • Page 25: Connecting Your Vcr Or Video Camera

    OPTICAL jack on your HDTV. 2. Turn on the power to your HDTV and home theater. 3. Change the input on your Home Theater to optical. See your Home Theater user manual for more information. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 26: Connecting A Computer

    VIZIO E320VP User Manual Connecting a Computer RGB (VGA) 1. Set computer to a resolution supported by your HDTV (see Preset PC Resolutions on page 46). If your computer supports it, we recommend 1366x768. 2. Turn off the power to your HDTV and computer.
  • Page 27: Chapter 7 Viewing Pictures

    See Adjusting Photo Settings on page 28 below to adjust various settings including setting up a slideshow and setting picture duration. 5. When finished, press EXIT once to return to the previous screen or repeatedly to return to the main menu. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 28: Adjusting Photo Settings

    VIZIO E320VP User Manual Adjusting Photo Settings When viewing pictures you can adjust various settings, including slideshow, picture duration, etc. 1. Insert a USB device containing pictures and select the folder or files that you want to play. 2. Press MENU. The Picture menu will be displayed.
  • Page 29: Chapter 8 Adjusting Your Hdtv Settings

    Press the RED button on the remote control. c. Highlight and select the RED X in any menu. Input Menu Select the Input Source for your HDTV. Choose from TV, Comp/AV, HDMI-1, HDMI-2, RGB, and Media. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 30: Wide Menu

    VIZIO E320VP User Manual Wide Menu Select how the picture displays on the screen. As you select an option, you will see the screen adjusting to the different sizes. The options vary depending on the selected input and the TV program: Normal The original 4:3 aspect ratio (1.33:1 source) is preserved, so black bars are...
  • Page 31: Digital Cc Style

    Note: Contrast is only available when Picture Mode is set to Custom. Color Adjust the amount of color in the picture. Note: Color is only available when Picture Mode is set to Custom. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 32: Tint

    VIZIO E320VP User Manual Tint Adjust the hue of the picture. The easiest way to set tint is to look at flesh tones and adjust for a realistic appearance. In most cases, the default middle position is correct. If people’s faces look too orange try reducing the level of color first.
  • Page 33: Advanced Picture

    Adjust the sound to the left or the right. Lip Sync Lip Sync is designed to adjust the audio of the program being viewed so that it matches the movement of the lips of someone talking on the screen. Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 34: Tv Speakers

    VIZIO E320VP User Manual TV Speakers Turn the internal speakers On or Off. You may want to turn the internal speakers off when listening to the audio through your Home Theater System. Advanced Audio To select the options in the Advanced Audio sub-menu, press ►. A new menu will be displayed showing the advanced functions available for fine tuning of the audio.
  • Page 35: Settings Menu

    This feature allows you to select the different languages the broadcaster is transmitting the audio with the program you are watching. This signal is usually Spanish. Choose from Mono, Stereo, or SAP. Version 6/15/2010 ▼ button to highlight the ▲ www.VIZIO.com VIZIO E320VP User Manual...
  • Page 36: Name Input

    VIZIO E320VP User Manual Name Input This feature makes it easier for you to recognize the devices you have connected to your HDTV when you press INPUT. For example, if you have a Blu-Ray DVD player connected to the HDMI-1 input, you can have the input label read HDMI-1 BluRay instead of just HDMI-1.
  • Page 37 C – Children C8+ – Children 8 years or older G – General Programming, suitable for all audiences PG – Parental guidance 14+ – Viewers 14 years or older 18+ – Adult programming Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 38: Menu Language

    VIZIO E320VP User Manual CAN-French Note: When Rating Enable is OFF, Canadian French Rating adjustments are not available. Press the OK button to block (locked) or allow (unlocked) channels by the following Canadian French ratings: G – General audience 8 ans+ – General – not recommended for young children 13 ans+ –...
  • Page 39: Cec

    Shuffle will show your pictures in random order until you stop the slideshow. Repeat Choose from On or Off to repeat the slideshow. Sort By Sort the pictures on the USB device by Photo Date, File Date, or alphabetically (File A-Z). Version 6/15/2010 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 40: Duration

    1. Remove the power adapter cable from your HDTV. 2. Use a soft cloth moistened with diluted neutral cleaner to clean the TV and remote control. VIZIO recommends using an HDTV cleaning solution which can be purchased at any major retailer.
  • Page 41: Troubleshooting Guide

    If your HDTV fails or the performance changes dramatically, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the display still fails to perform as expected, contact the VIZIO for assistance by calling 877-MYVIZIO (877- 698-4946) or e-mail us at techsupport@VIZIO.com.
  • Page 42 VIZIO E320VP User Manual Issue Solution   Side Control buttons do not  work    Poor image quality       Distorted image or unusual  sound    Display image does not...
  • Page 43: Audio Troubleshooting

    Increase the volume of the external device using that device’s remote. Check video/device cable integrity. Try another cable (HDMI, AV/Composite, Coax etc.) Insure audio cables are tightly inserted into inputs. Try another device. Use another device input. www.VIZIO.com VIZIO E320VP User Manual in the menu. Audio...
  • Page 44: Remote Control Troubleshooting

    For technical assistance contact our VIZIO Technical Support Department via email or phone. Hours of operation: Monday - Friday: 6 am to 9 pm Have your VIZIO model number, serial number, and date of purchase available before you call. Telephone: (888) 849-4623 (949) 428-2525 Fax: (949) 585-9514 Point the remote control directly at the remote sensor on your TV.
  • Page 45: Chapter 10 Specifications

    770.5 x 548.8 x 186.7 mm with stand; 770.5 x 497.9 x 30.34 mm without stand Net Weight 14.33 lbs with stand; 13.23 lbs without stand 6.5 kg with stand; 6 kg without stand Version 6/15/2010 Multimedia (JPEG only) HDMI CEC www.VIZIO.com VIZIO E320VP User Manual...
  • Page 46: Compliance

    VIZIO E320VP User Manual E320VP Specifications Gross Weight 18.74 lbs; 8.5 kg Certifications CSA, CSA-US, FCC Class B Compliances Energy Star 4.1. ATSC Spec A/65, EIA/CEA-766-A Compliance Caution: Always use a power cable that is properly grounded. Use the AC cords listed below for each area.
  • Page 47: Preset Pc Resolutions

    75.029 31.469 70.087 47.550 59.810 Horizontal Values (Pixels) Vertical Values (Lines) 1366 1798 47.55 kHz 59.81 kHz 85.5 www.VIZIO.com VIZIO E320VP User Manual Vertical Pixel Sync Rate Remark Polarity (MHz) (TTL) 25.175 Windows 31.500 Windows 40.000 Windows 50.000 Windows 49.500 Windows 65.000 Windows...
  • Page 48: Warranty

    Units less than 30” must be sent to a VIZIO service center. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. Pre-authorization is required before sending any unit in for service.
  • Page 49: Index

    Reset Locks ...38 USA Movie Rating...37 USA TV Rating...37 Parental Controls ...36 Password ...38 Photos Adjusting Settings ...28 Viewing ...27 Picture Reset Picture Mode...33 Picture Menu ...31 Adaptive Luma ...33 Advanced Video ...33 Ambient Light Sensor...33 www.VIZIO.com VIZIO E320VP User Manual...
  • Page 50 VIZIO E320VP User Manual Backlight ...31 Backlight Control ...33 Brightness ...31 Color ...31 Color Enhancement ...33 Color Temperature ...32 Contrast ...31 Film Mode ...33 Noise Reduction...33 Picture Mode ...31 Sharpness ...32 Tint ...32 Pictures Adjusting Settings ...28 Create Slideshow ...28, 39 Info ...28, 40...

Table of Contents
