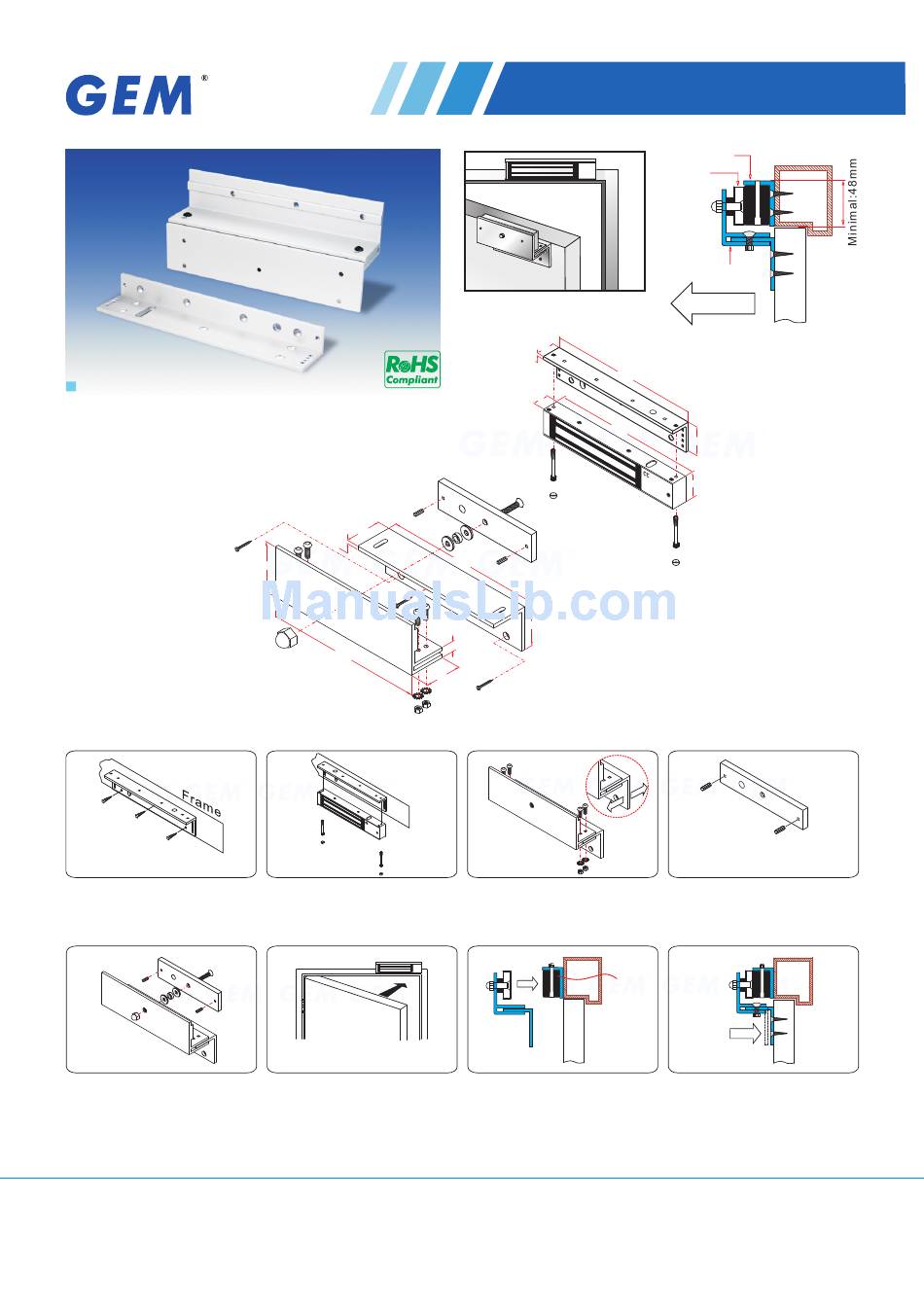

GEM LZ-300 Specification Sheet

Application of the Electromagnet:
10001 ,10005(double), EM-300 Series
With LZ bracket for in-swing doors
1
Find a mounting location on the
door frame for the L bracket. Make
sure that the door is still closeable.
5
Assemble the armature plate and
the Z bracket. (Must add rubber
washer)
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-LZ-300 Ver. E Published on 2011.09.08
5 0
5
6 3
2 5
0
2
Use the fixing bolt to tighten
the electromagnet lock on the
L bracket
6
Close the door and connect the
power.
LZ-300 Bracket
In-swing doors
3 0
5
2 6
2 5
0
6 0
1 5
5 5
3
Assemble the Z bracket, and make
sure that the Z bracket is adjustable.
7
Test the tightness and adjust
the Z bracket to fit the door.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
L-Bracket
Armature
Frame
Z-Bracket
Door
In-swing
2 5
0
2 5
0
4 8
4 2
Unit:mm
4
Insert the guide pins into the
armature plate.
Finish
Power
Lock tighten the Z bracket
