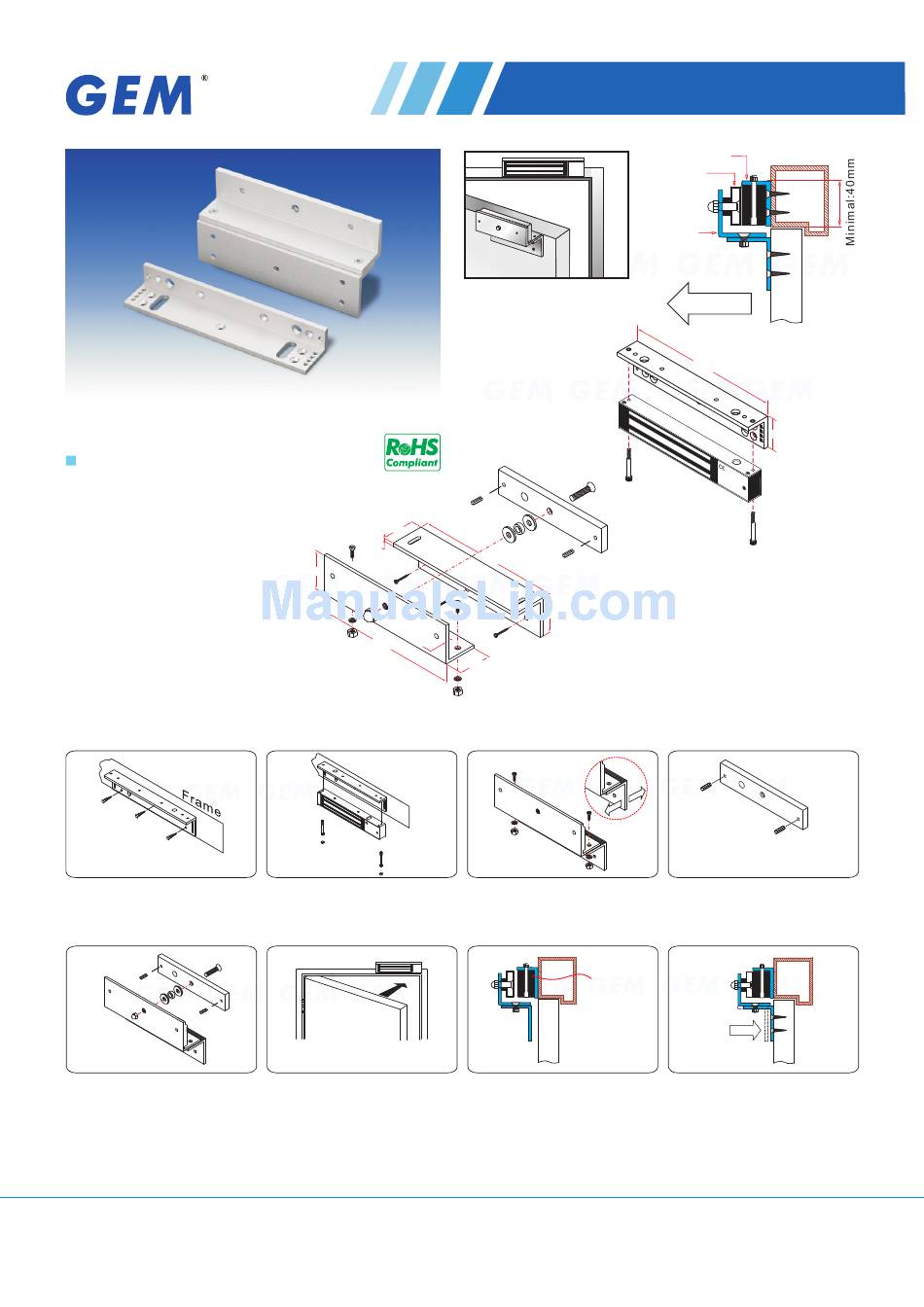

GEM 40 Installation Instructions

Application of the Electromagnet:
EM-150
Installation of LZ bracket on In-swing Doors
1
Install L bracket on the door frame.
M a k e s u r e t h e d o o r m a y b e
opened/closed.
5
Fasten the armature plate to Z
bracket. Insert the rubber washer
between them.
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-LZ-EM150 Ver. E Published on 2011.09.08
3 0
6
4 0
1 8
6
0
2
Fasten the electromagnet to L
bracket with fixing screws.
6
Close the door and turn on the
power.
LZ-EM150 Bracket
In-swing doors
1 8
0
4 8
3 8
3
Assemble Z bracket. Make sure it is
still loose.
7
Power
L e t t h e a r m a t u r e p l a t e a n d
electromagnet bond together. Press
Z bracket to the door leaf.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
L-Bracket
Armature
Plate
Frame
Z-Bracket
Door
In-swing
2 0
0
4 0
4
Insert the guide pins into the
armature plate.
Finish
Fasten Z bracket to the door leaf.
Unit:mm
