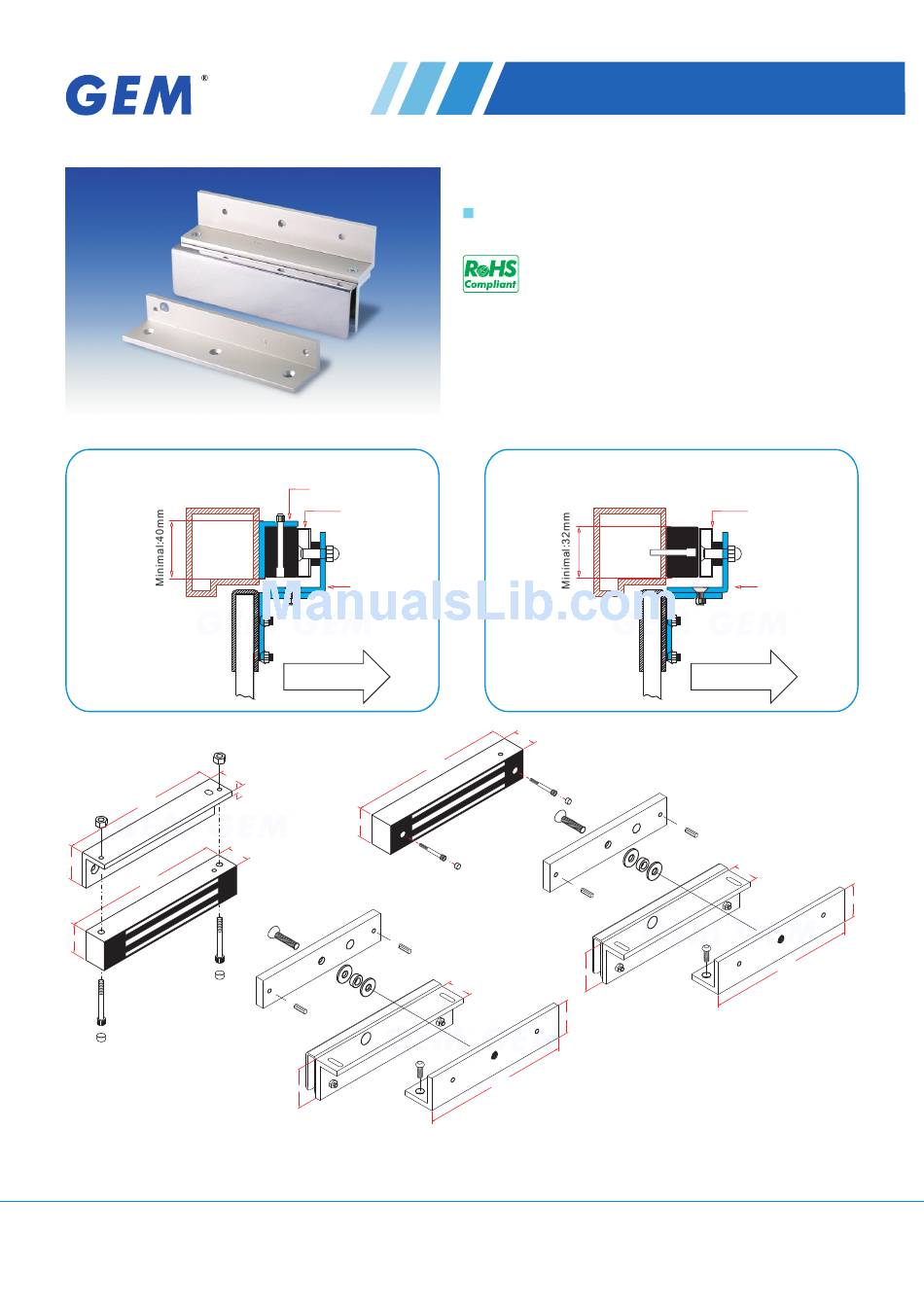

GEM GLZ-150 Specification Sheet

Bracket in-swing doors

Advertisement

Application of 10003S

Frame

frameless glass door

2 8
0
1 7
2 4
3 7
0
1 7
3 2
10003S
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-GLZ-150 Ver. C Published on 2011.09.08

L-Bracket

Armature
Plate

Z-Bracket

Inswing
5
3 2
4 8
GLZ-150 Bracket
In-swing doors
Application of the Electromagnet: 10003S, 10003F
frameless glass door
2 4
0
1 7
10003F
4 8
3 0
4 0
0
1 8
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw

Application of 10003F

Armature
Plate
Frame
Z-Bracket
Inswing
3 0
1 8

Unit:mm

4 0
0
