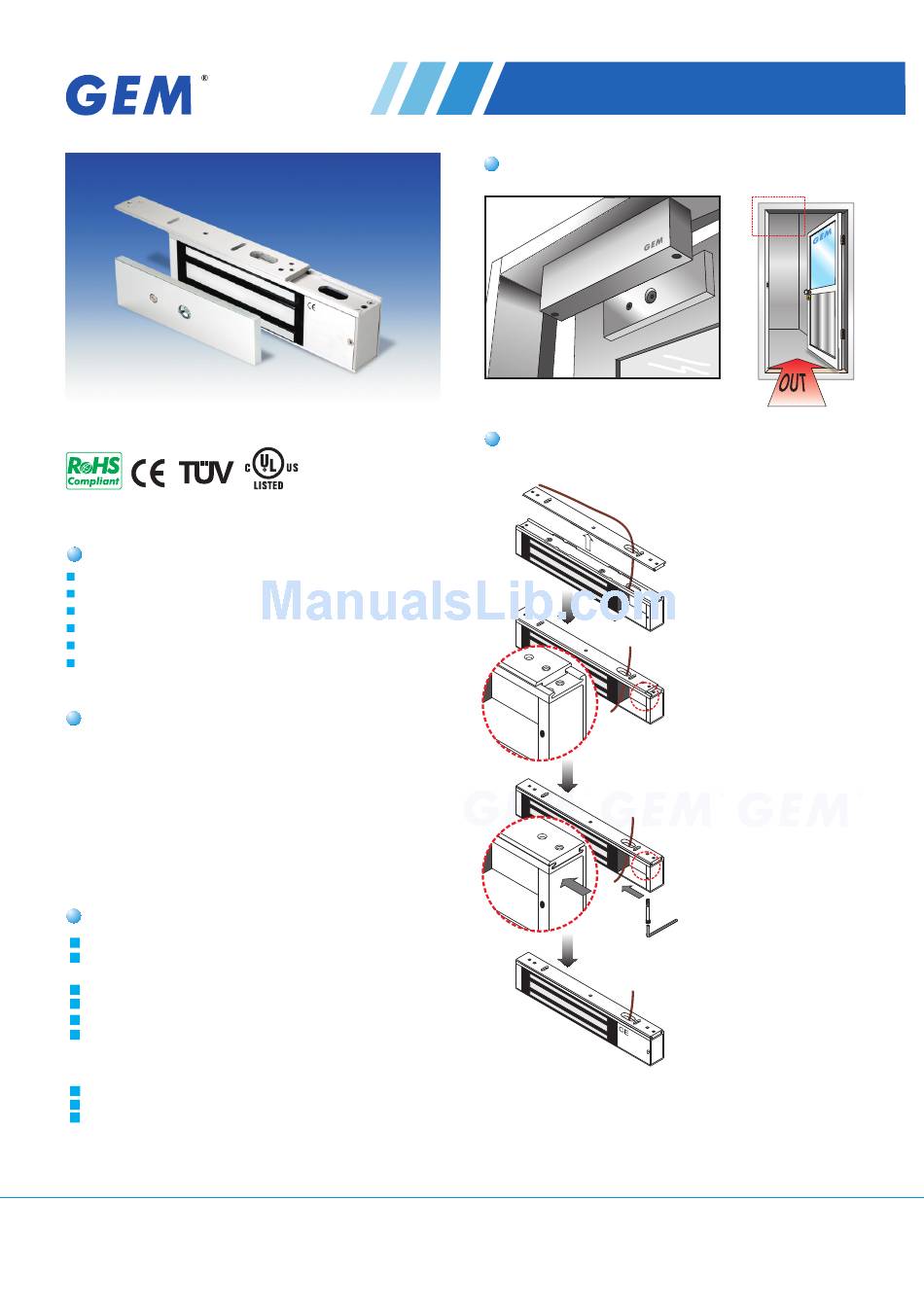

GEM EM-NH500 Specification Sheet

Features
Holding force up to 1200 lbs
MOV provides spike and surge protection
Aluminum anodized casing
Mounting plate & housing for easy installation
Dual voltage 12 or 24 VDC (selectable)
Anti-Residual magnetism function
Statement

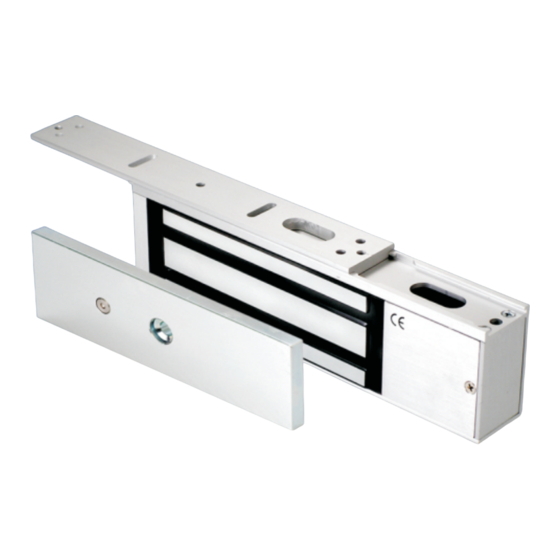

EM-NH500 is designed for surface mount on
out-swing doors. Its slide-in
simplifies the process of installation and firmly
secures the magnet. Other optional operation
features include magnetic bond sensor, relock
time delay, and buzzer alarm.
Specification
Operating Voltage: 12/24 VDC
Current Draw: 500mA/12VDC;250mA/24VDC
(at 20ºC)
Operating Temperature: -10~55ºC (14~131ºF)
Humidity: 0~95% non-condensing.
Holding Force: Up to 1200 lbs (545 Kg)
Dimensions:
Magnet:(L) 267, (W) 71, (D) 40 mm
Armature Plate:(L) 185, (W) 62, (D) 16 mm
Mounting Plate:(L) 267, (W) 40, (D) 8 mm
Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 4.8 Kg
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EM-NH500 Ver. G Published on 2011.09.01
Patent:
ZL 2006 2 0122522.X
Nr.20 2006 012 052.1
M308308
GB 06 16099.8
06 07229 (France)
mounting plate
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
EM-NH500
Standard Electromagnetic Lock
Regular Installation
Special Mounting Plate design
Cable
1 . P a s s t h e p o w e r c a b l e
through the mounting plate
and the hole of the maglock.
2.Place the mounting plate
above the maglock. Leave a
length of 1 cm from either end
of the maglock.
3.Slide the mounting plate
into the maglocks. Fit the
maglock from the bottom to
the mounting plate.
4.Use the Allen wrench and
fixing screws to tighten the
mounting plate and maglock.
