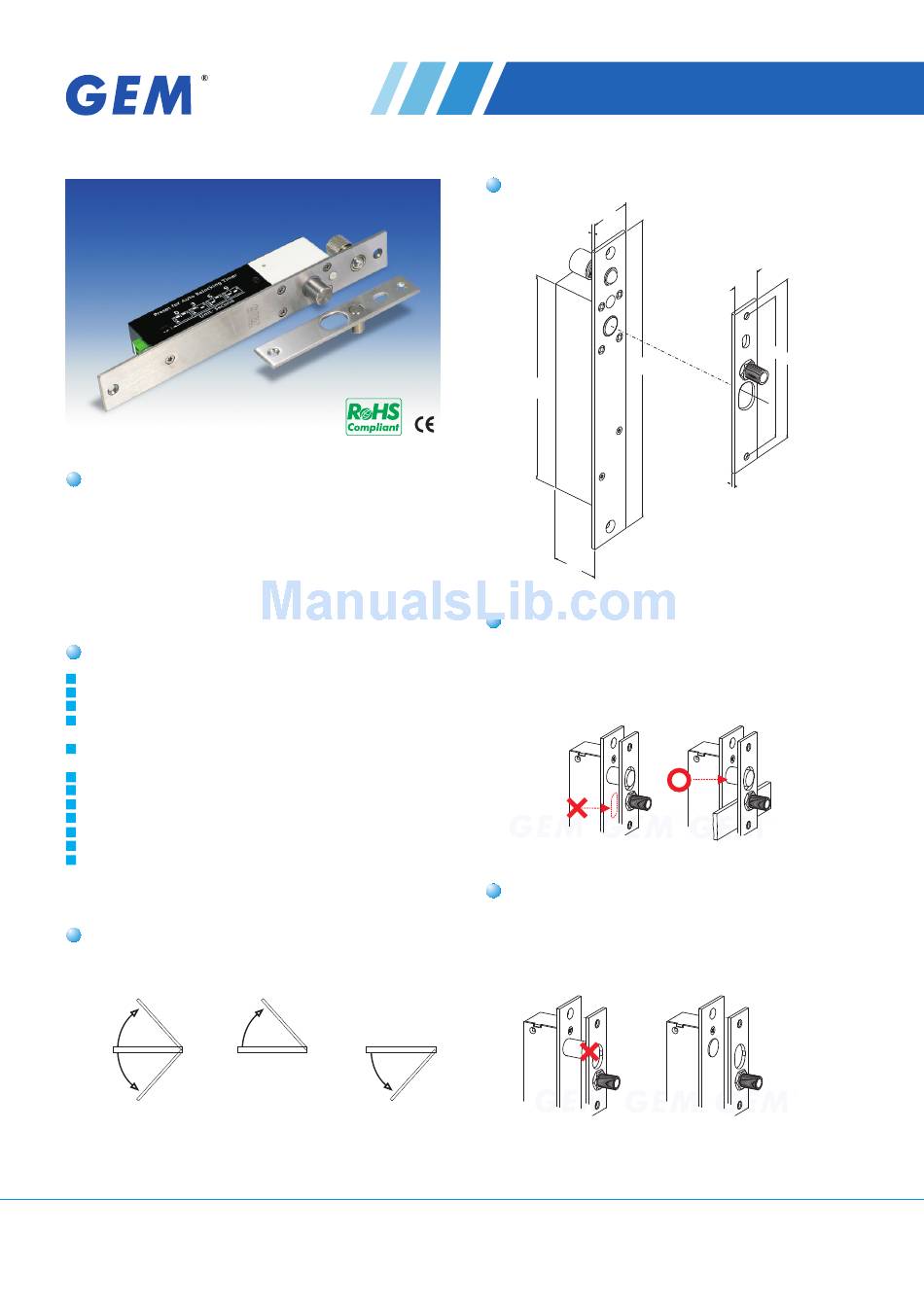

Gianni Industries EB-262 Specification

Statement

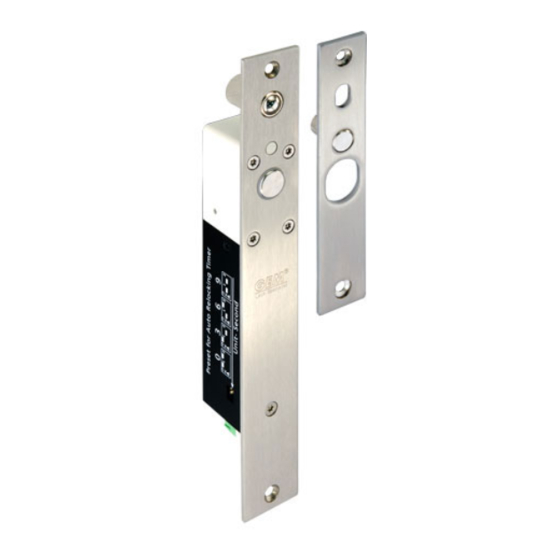

The EB262 electric dropbolt has a logic circuitry. The
positioning ball above the dropbolt keeps the bolt retracted
while the door is not locked on strike plate until the door closed
properly. This design is for security purpose, which solves the
problem of improper door positioning.
Specification
Fail-Safe Version (Power to Lock)
Power Input: 12 VDC
Voltage Tolerance: ±10%
Current Draw: Pull in: 0.9A, Holding: 0.3A/12VDC
(at 20°C)
Magnetic bolt status output (SPDT rated 3A/30VDC)
indicates bolt is in a locked or unlocked status.
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Tested over 500000 cycles.
Built-in logical circuitry
Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds
Faceplate Material: stainless steel
Net Weight: 1.2 Kg
Double Action Doors
EB262 Electric dropbolt is specially designed for use on
double swing doors. They can also be installed on both
outswing and inswing doors.
Double action door
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EB-262 Ver. G Published on 2011.06.22
Outswing
Inswing
EB262 Electric Dropbolt
Dimensions
3 5
3
2
2 6
1 6
6
4 1
Vandal Resistant
The vandal resistant circuitry means the door position
sensor can't be fooled into projecting the electric dropbolt
unless the door is actually closed. The reed sensor
automatically disconnects after the bolt is projected to
enhance security of the lock.
Auto-detective circuitry
The unique intelligent logic circuit in GEM's electric
dropbolts keeps the bolt retracted until the door is properly
closed. This feature ensures the bolt will not extend if the door
is improperly aligned.
