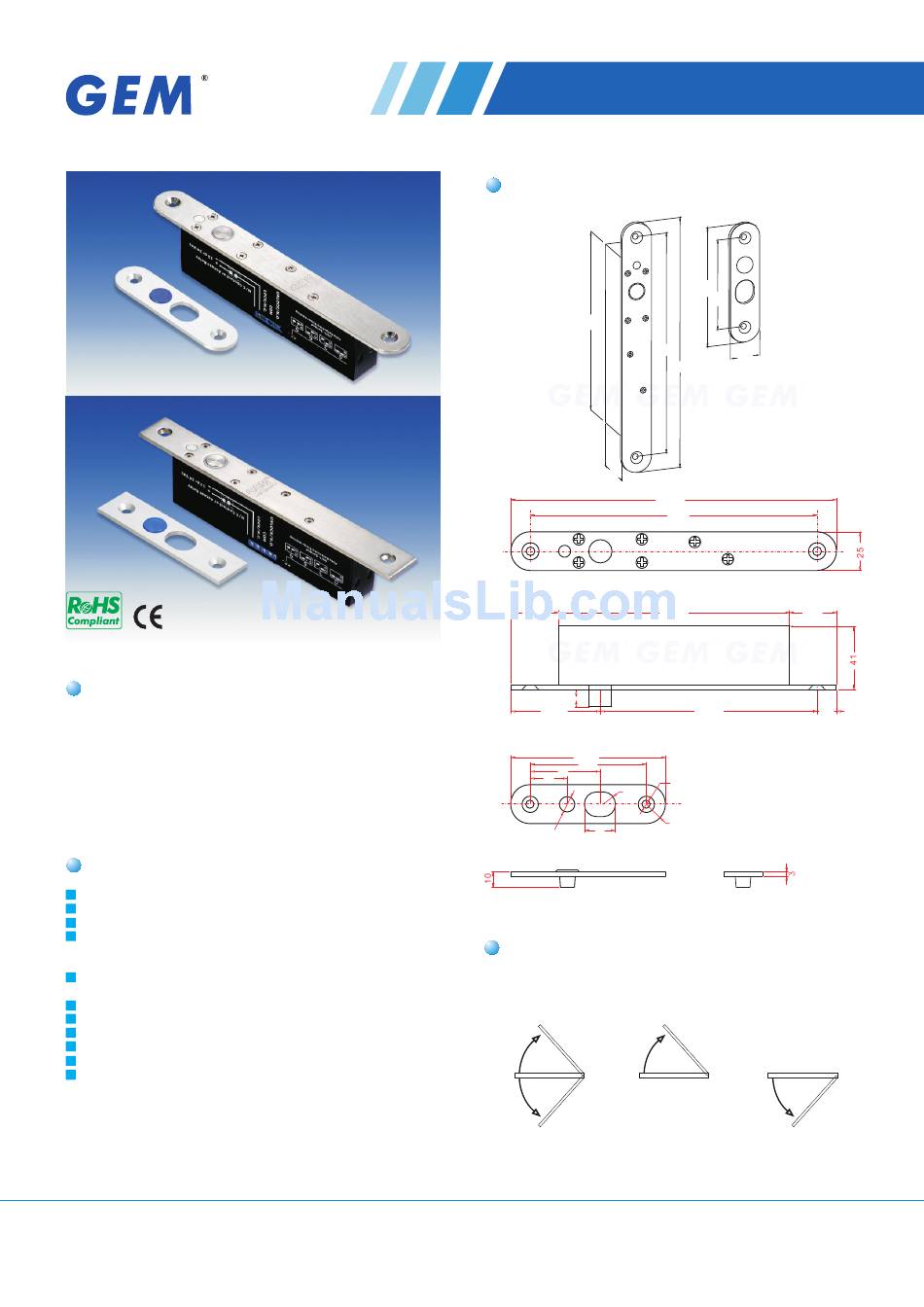

Gianni Industries EB-180 Specification

Statement
The EB180 electric dropbolt is very lightweight.
The 25 mm-wide faceplate is designed for
installation virtually on all types of doors and
frames. The rectangular-shaped (EB185) and
arc-shaped (EB180) faceplates are used to meet
the different needs.
Specification
Fail-Safe(Power to Lock)
Operating Voltage: 12/24VDC
Voltage tolerance: ±10%
Current Draw: Pull in: 0.9A/12VDC; 0.4A/24VDC
Holding: 0.15A/12VDC; 0.1A/24VDC
(at 20°C)
Magnetic bolt status output:
(SPDT rated 3A/12VAC,1.5A/250VAC)
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Relock Time Delay : 1, 3 ,6 ,9 seconds
Tested over 500000 cycles.
Faceplate Material: stainless steel
Net Weight : 0.6 Kg
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-EB-180 Ver. G Published on 2011.06.22
EB180
EB185
double swinging doors. They can also be installed on both
outswing and inswing doors.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
EB180, EB185
ELECTRIC DROPBOLT
Dimensions
1
4
9
1 8 5
2 1 0
4
1
210
185
149
30.8
16.5
57.5
100
75
45
24
Ø5.3 x
R8
R12.5
20
9.9
Double Action Doors
EB180 Electric dropbolt is specially designed for use on
Double swing doors Outswing doors
1 0 0
7 5
2 5
Unit: mm
30.2
140
12.5
Ø 10.5-2 Pla ces
Inswing doors
