  • Page 1 GA-J1800N-D2H User's Manual Rev. 1001 12ME-J180D2H-1001R...

  • Page 2: Identifying Motherboard Revision

    Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.

  • Page 3: Table Of Contents

    Table of Contents GA-J1800N-D2H Motherboard Layout ................4 GA-J1800N-D2H Motherboard Block Diagram ...............5 Chapter 1 Hardware Installation ..................6 Installation Precautions ................... 6 1-2 Product Specifications ..................7 Installing the Memory ..................9 Installing an Expansion Card ................9 Back Panel Connectors ................... 9 Internal Connectors ..................11...

  • Page 4: Ga-J1800N-D2H Motherboard Layout

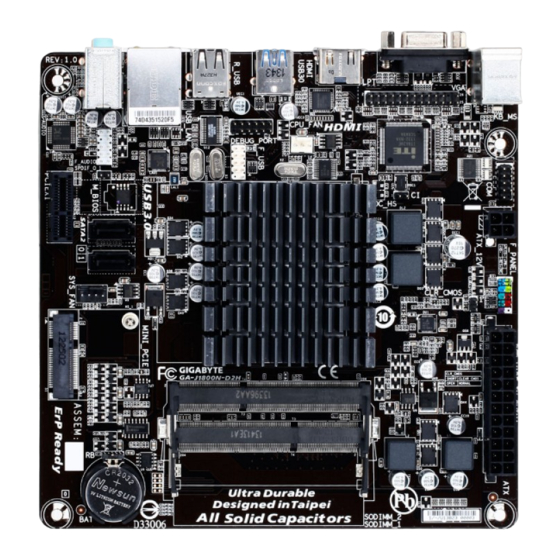

    GA-J1800N-D2H Motherboard Layout F_PANEL KB_MS ATX_12V CLR_CMOS ® Super I/O GA-J1800N-D2H HDMI CPU_FAN Intel J1800 SoC ® USB30 F_USB GL850S R_USB Realtek ® GbE LAN USB_LAN M_BIOS SYS_FAN AUDIO F_AUDIO SPDIF_O MINI_PCIE SATA2 CODEC PCIEX1 Box Contents 5 GA-J1800N-D2H motherboard...

  • Page 5: Ga-J1800N-D2H Motherboard Block Diagram

    GA-J1800N-D2H Motherboard Block Diagram D-Sub DDR3L 1333 MHz Dual Channel Memory HDMI 2 SATA 3Gb/s Single BIOS GL850S 4 USB 2.0/1.1 USB Hub RJ45 Intel J1800 SoC ® 1 USB 3.0/2.0 Realtek PCIe CLK ® (100 MHz) GbE LAN 2 USB 2.0/1.1...

  • Page 6: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 7: 1-2 Product Specifications

    1-2 Product Specifications Built in with an Intel Dual-Core Celeron J1800 SoC (2.41 GHz) Š ® ® * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache Š Memory 2 x 1.35V DDR3L DIMM sockets supporting up to 8 GB of system memory Š...
  • Page 8 Mini-ITX Form Factor; 17.0cm x 17.0cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features" and "Bundled Software" columns. - 8 -...

  • Page 9: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
  • Page 10 Dual Display Configurations for the Onboard Graphics: Dual-display configurations are supported after you install motherboard drivers in OS, but not during the BIOS Setup or POST process. USB 3.0/2.0 Port The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs.

  • Page 11: Internal Connectors

    Internal Connectors ATX_12V F_AUDIO F_USB CPU_FAN SPDIF_O SYS_FAN CLR_CMOS SATA2 0/1 DEBUG_PORT F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 12 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 13 5) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition Pin No. Definition NDCD- NDSR- NSIN NRTS- NSOUT NCTS-...
  • Page 14 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. • PLED (Power LED, Yellow): Power Switch Power LED Connects to the power status indicator on the...
  • Page 15 10) F_USB (USB 2.0/1.1 Header) The header conforms to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Pin No. Definition Power (5V) USB DY+ Power (5V) USB DX- USB DY- No Pin USB DX+ •...
  • Page 16 13) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. Open: Normal Short: Clear CMOS Values • Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS values. •...

  • Page 17: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use the GIGABYTE @BIOS utility, which is a Windows-based utility that searches and downloads the latest version of BIOS from the Internet and updates the BIOS.

  • Page 18: Main

    Main Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu. Submenu Help While in a submenu, press <F1>...

  • Page 19: Advanced

    Advanced Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit ` Intel(R) Smart Connect Technology ` Super IO Configuration ` H/W Monitor ` CPU Configuration ` PPM Configuration ` Thermal Configuration ` IDE Configuration ` Network Stack Configuration ` CSM Configuration ` USB Configuration ` Realtek PCIe GBE Family Controller (MAC:74:D4:35:15:20:F5) gf: Select Screen...
  • Page 20 & ErP Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: PME event wake up, power on by mouse, power on by keyboard, and wake on LAN. &...

  • Page 21: Enhanced C State

    ` PPM Configuration & EIST Enables or disables Enhanced Intel Speed Step Technology (EIST). Depending on CPU loading, Intel ® ® EIST technology can dynamically and effectively lower the CPU voltage and core frequency to decrease average power consumption and heat production. (Default: Enabled) &...

  • Page 22: Network Stack

    ` Network Stack Configuration & Network Stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server. (Default: Disabled) & Ipv4 PXE Support Enables or disables IPv4 PXE Support. This item is configurable only when Network Stack is enabled. & Ipv6 PXE Support Enables or disables IPv6 PXE Support. This item is configurable only when Network Stack is enabled.
  • Page 23 & Video Allows you to select whether to enable the UEFI or legacy option ROM for the graphics controller. Do not launch Disables option ROM. UEFI only Enables UEFI option ROM only. Legacy only Enables legacy option ROM only. Legacy first Enables legacy option ROM first. (Default) UEFI first Enables UEFI option ROM first.

  • Page 24: Chipset

    Chipset Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Realtek LAN Controller [Enabled] ` North Bridge ` South Bridge gf: Select Screen hi: Select Item [ENTER]-Select +/-: Change Opt. F1: General Help F2: Previous Values Load Optimized Defaults Save &...

  • Page 25: Security Menu

    & Restore AC Power Loss Determines the state of the system after the return of power from an AC power loss. Power Off The system stays off upon the return of the AC power. (Default) Power On The system is turned on upon the return of the AC power. Last State The system returns to its last known awake state upon the return of the AC power.

  • Page 26: Boot Menu

    Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) &...

  • Page 27: Usb Support

    & VGA Support Allows you to select which type of operating system to boot. Enables legacy option ROM only. Auto EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot is set to Enabled. & USB Support All USB devices are disabled before the OS boot process completes. Disabled Full Initial All USB devices are functional in the operating system and during the POST.

  • Page 28: Save & Exit

    Save & Exit Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Save Changes and Reset Discard Changes and Reset Restore Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: USB 2.0 USB Flash Drive 0.00 UEFI: Built-in EFI Shell Launch EFI Shell From filesystem service...

  • Page 29: Chapter 3 Appendix

    Chapter 3 Appendix Drivers Installation • Before installing the drivers, first install the operating system. (The following instructions use Windows 8 as the example operating system.) • After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc"...

  • Page 30: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 31 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 32: Contact Us

    Tech. and Non-Tech. Support (Sales/Marketing) : http://ggts.gigabyte.com.tw WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE Global Service System •...
