Super Circuits LCD17-5 User Manual

Hide thumbs Also See for LCD17-5:
Table of Contents

Advertisement

Quick Links

See also: User Manual

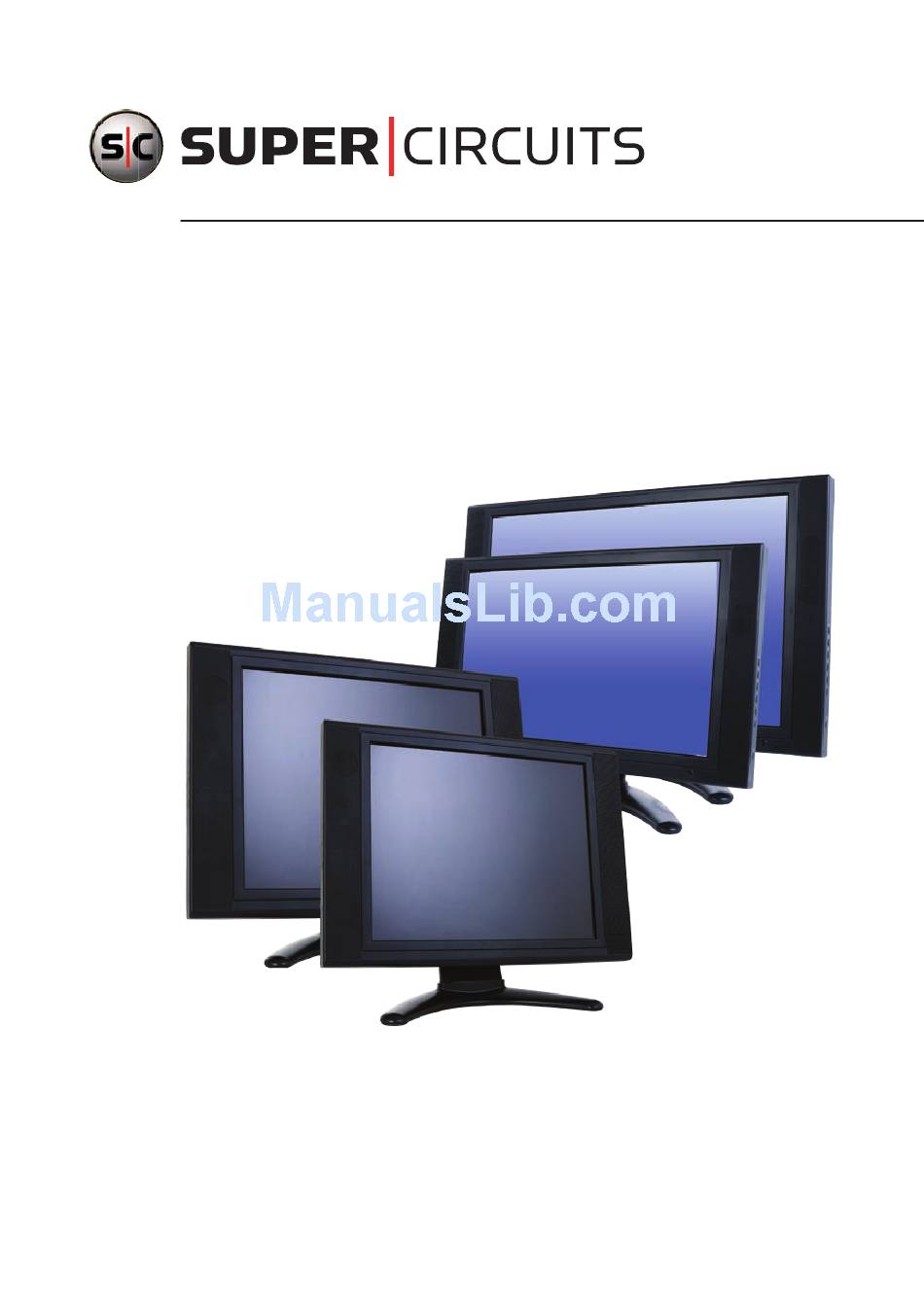

LCD Monitor

User Manual

Products: LCD17-5, LCD19-5, LCD19W-7, LCD22W-7
Please read this manual before using your monitor, and always follow instructions
for proper use. Please save this manual for future reference.
LCD17-19-19W-22W_DM
3/8/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD17-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Super Circuits LCD17-5

Summary of Contents for Super Circuits LCD17-5

  • Page 1: Lcd Monitor

    LCD Monitor User Manual Products: LCD17-5, LCD19-5, LCD19W-7, LCD22W-7 Please read this manual before using your monitor, and always follow instructions for proper use. Please save this manual for future reference. LCD17-19-19W-22W_DM 3/8/11...
  • Page 2 WARNING Risk of electric shock. Do not open. To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. This monitor is equipped with a power plug with ground. Use only with a grounded electrical outlet. Always follow the instructions in the installation guide when applying power.
  • Page 3 LEGAL NOTICE Supercircuits products are designed to meet safety and performance standards with the use of specific Supercircuits authorized accessories. Supercircuits disclaims liability associated with the use of non-Supercircuits authorized accessories. The recording, transmission, or broadcast of any person’s voice without their consent or a court order is strictly prohibited by law.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 SECTION 1 1.1 What’s in the box .

  • Page 5: Introduction

    Built-in BNC, RCA, HDMI, S-Video and VGA inputs • Built-in audio speakers • High resolution: 1680 x 1050 (LCD22W-7), 1440 x 900 (LCD19W-7), 1280 x 1024 (LCD19-5 and LCD17-5) pixel display • Remote control • 1.1 What’s in the box...

  • Page 6: Installation And Setup

    SECTION 2: INSTALLATION AND SETUP SECTION 2 Installation and Setup To install the monitor: Remove the components from the packaging and inspect them for damage. If the monitor is damaged in any way, return it to your supplier for replacement. Find the monitor assembly and base.
  • Page 7 SECTION 2: INSTALLATION AND SETUP Inputs on the lower back side of monitor BNC connectors are located on the back left side of the monitor underneath the back cover. Remove the cover by carefully pulling the lower edge of the cover away from the monitor. Back cover Pull away here...
  • Page 8 SECTION 2: INSTALLATION AND SETUP Inputs on the back left side of the monitor If necessary, configure the video source (DVR, PC, etc) to enable video (and audio) to the video output you are using. Connect the audio output from the video source to the audio connector(s) associated with the monitor video input port you are using.
  • Page 9 SECTION 2: INSTALLATION AND SETUP SOURCE Move up in menu Move down in menu Move right in menu or volume up Move left in menu or volume down MENU (open/close) Power Audio output (on some models, on the left side) Control panel Configure the monitor for the video input source you are using.

  • Page 10: Basic Operation

    SECTION 3: BASIC OPERATION SECTION 3 Basic Operation 3.1 Using the remote control Monitor functions that can be performed on the control panel can also be done with the remote control. The buttons on the remote control are described below. Mute Power Smart S...

  • Page 11: Power

    SECTION 3: BASIC OPERATION Button Function Numeric buttons Enter number buttons (0 – 9) Program list Scan or set program list Not used. Cursor Up or down cursor button: function select; left or right cursor button: add or reduce Confirm selection –...

  • Page 12: Selecting An Input Source

    SECTION 3: BASIC OPERATION The monitor will change to standby mode if it is powered on and there is no signal input for 5 minutes, or when the preset time NOTE to turn off is reached. 3.3 Selecting an input source Press SOURCE on either the remote control or the monitor to open the INPUT SOURCE pop-up window.

  • Page 13: Picture Menu

    SECTION 3: BASIC OPERATION Press the left, t, or right, u, cursor keys on the remote control, or the + or – buttons on the monitor control panel to select one of four menu screens: PICTURE, SOUND, ADVANCED, or SYSTEM. Press the down, , cursor keys on the remote control or the –...

  • Page 14: Sound Menu

    SECTION 3: BASIC OPERATION Table 2 . PICTURE menu option summary Option Function Description PICTURE MODE Select picture mode STANDARD, DYNAMIC, SOFT, or PERSONAL Increasing the value increases contrast; CONTRAST Adjust the image contrast decreasing the value decreases contrast (0-100) Increasing the value increases brightness;...
  • Page 15 SECTION 3: BASIC OPERATION To modify the sound parameters, do the following: Press MENU on the remote control or on the monitor control panel. The monitor will display the PICTURE menu screen. Press the right, u, cursor key on the remote control or the + button on the monitor once to open the SOUND menu. Press the down, , cursor key on the remote control or the monitor to select the SOUND MODE.
  • Page 16 SECTION 3: BASIC OPERATION ADVANCE menu To adjust the ADVANCE parameters, do the following: Press MENU on the remote control or on the monitor control panel. The monitor will display the PICTURE menu screen. Press the right, u, cursor key on the remote control or the + button on the monitor twice to open the ADVANCE menu. Press the down, , cursor key on the remote control or the monitor control panel to select the NR option.

  • Page 17: System Menu

    SECTION 3: BASIC OPERATION 3 .4 .4 SYSTEM menu Use the SYSTEM menu to setup the attributes of the menu display and to reset the monitor settings to the factory default values. SYSTEM menu To adjust the SYSTEM parameters, do the following: Press MENU on the remote control or on the monitor.
  • Page 18 SECTION 3: BASIC OPERATION Table 5 . SYSTEM menu option summary Option Function Description OSD LANGUAGE Select menu language Select menu language – English, French, Chinese, Turkish, etc. H-POSITION Adjust horizontal position of menu display Increasing value, menu moves right; decreasing value, menu moves left (0-100) V-POSITION Adjust vertical position of menu display Increasing value, menu move down;...

  • Page 19: Specifications

    Y: 75Ω 1 Vp-p, C: 75Ω 0.286 Vp-p BNC/CVBS Input/Output Y: 75Ω, 1 Vp-p Audio Input/Output 20 KΩ, 0.5 Vp-p Earphone 16 ~ 300 Ω, 100 mW + 100 mW Table 7 . PC (VGA) input resolutions: LCD17-5, LCD19-5 monitors* Mode Resolution Refresh (Hz)   SVGA ...
  • Page 20  SXGA 1680 1050 60**  Table 10 . General specifications* Item LCD17-5 LCD19-5 LCD19W-7 LCD22W-7 Resolution (maximum) 1280 x 1024 @ 60 Hz 1440 x 900 @ 60 Hz 1680 x 1050 @ 60 Hz 0.2835 x 0.2835 mm, or Pixel pitch 0.264 x 0.264 mm...

  • Page 21: Troubleshooting

    SECTION 5: TROUBLESHOOTING SECTION 5 Troubleshooting My monitor has no image or sound. How can I fix this problem? It may be that the power source is bad, or the power connections are loose. Check the power cord to make sure it is connected.
