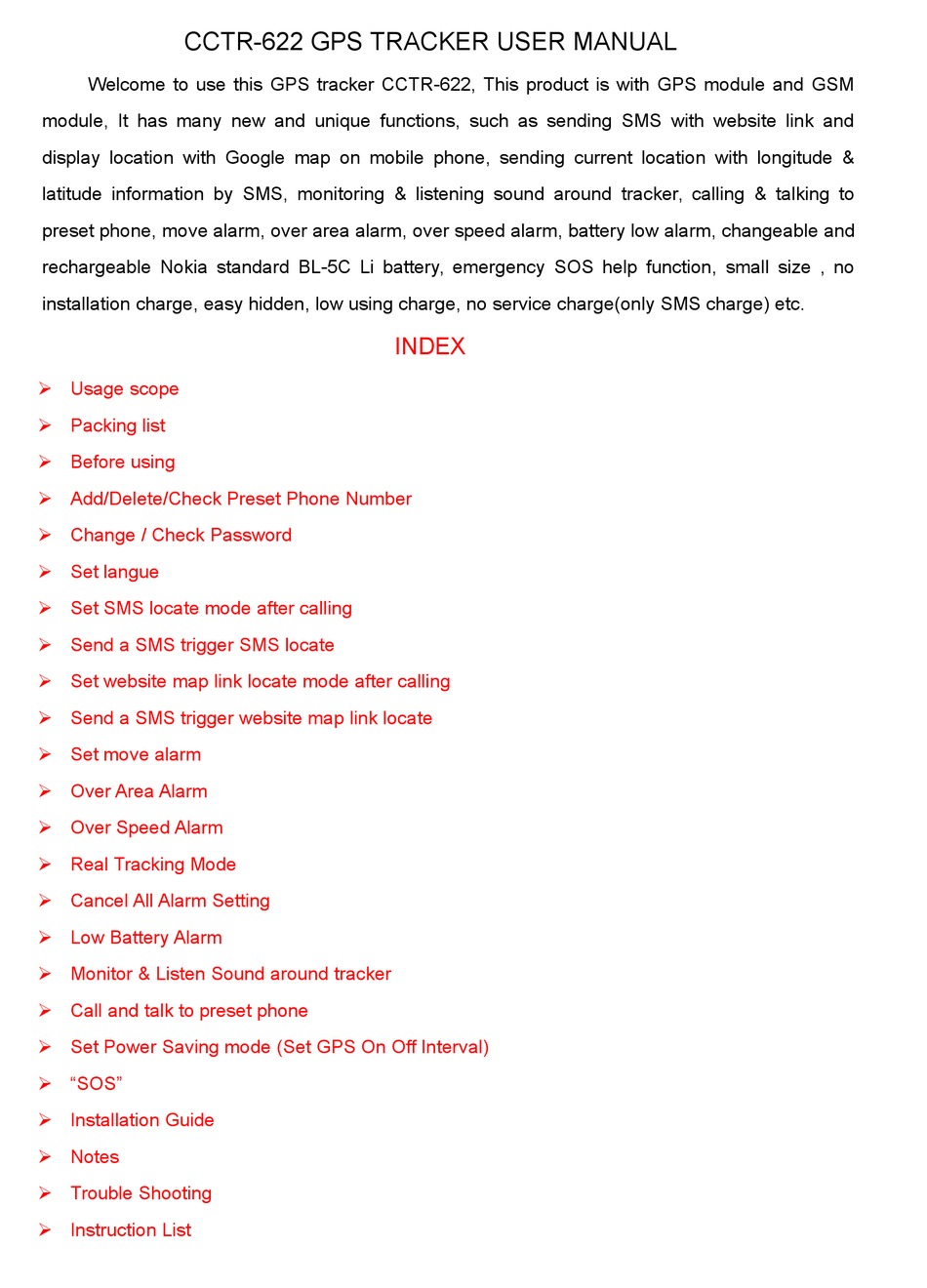

CCTR-622 GPS TRACKER USER MANUAL
Welcome to use this GPS tracker CCTR-622, This product is with GPS module and GSM
module, It has many new and unique functions, such as sending SMS with website link and
display location with Google map on mobile phone, sending current location with longitude &
latitude information by SMS, monitoring & listening sound around tracker, calling & talking to
preset phone, move alarm, over area alarm, over speed alarm, battery low alarm, changeable and
rechargeable Nokia standard BL-5C Li battery, emergency SOS help function, small size , no
installation charge, easy hidden, low using charge, no service charge(only SMS charge) etc.
� Usage scope
� Packing list
� Before using
� Add/Delete/Check Preset Phone Number
� Change / Check Password
� Set langue
� Set SMS locate mode after calling
� Send a SMS trigger SMS locate
� Set website map link locate mode after calling
� Send a SMS trigger website map link locate
� Set move alarm
� Over Area Alarm
� Over Speed Alarm
� Real Tracking Mode
� Cancel All Alarm Setting
� Low Battery Alarm
� Monitor & Listen Sound around tracker
� Call and talk to preset phone
� Set Power Saving mode (Set GPS On Off Interval)
� "SOS"
� Installation Guide
� Notes
� Trouble Shooting
� Instruction List
INDEX

Advertisement

loading
Need help?

Need help?

Do you have a question about the CCTR-622 and is the answer not in the manual?

Questions and answers

Related Manuals for SHENZHEN CARSCOP Electronics CCTR-622

Summary of Contents for SHENZHEN CARSCOP Electronics CCTR-622

  • Page 1 CCTR-622 GPS TRACKER USER MANUAL Welcome to use this GPS tracker CCTR-622, This product is with GPS module and GSM module, It has many new and unique functions, such as sending SMS with website link and display location with Google map on mobile phone, sending current location with longitude &...

  • Page 2: Packing List

    � Warranty Usage Scope It can be used as tracking cars, company vehicles, buses, taxis, trucks, elders, children, outside workers, travelers, explorers, overlanders, pets, moving equipments, transportations, criminals etc. � Our free latitude and longitude located website: http://www.followmegps.com � Our free link located map website: http://www.followmegps.mobi Packing list �...
  • Page 3 � When the battery voltage in the tracker is too low, the tracker will power off automatically 2. Install SIM card: Pull out the battery cover and remove the battery, you can see the SIM card holder under the battery, move the metal cover to another side, you can lift one side of the metal cover, put the SIM card into the holder (Metal pin face down), and make the cover fasten.
  • Page 4 � Theoretically the battery life can last about 3-5days, however the standby time should be shorter in different actual situation. ( for example GPS continuously ON can reduce the standby time to 1-2 days, also weak GSM signal can reduce the standby time etc.) 5.
  • Page 5 3. Check preset phone number by SMS Send SMS “CHECKPHONE*123456” to tracker, “CHECKPHONE” is a command; “123456” is password; if the operation is success, the tracker will send back the information “CHECKPHONE A: 13322990998； B： 13322990033； C： 13316868198”, the phone number is just an example.
  • Page 6 2. Under this report mode, using preset phone call the tracker, after ring 3 times, the tracker will hang up the call automatically and locate immediately, about 30 seconds, the tracker will send back the SMS location information (latitude longitude speed battery time etc) of current location to the caller.
  • Page 7 tracker. Send a SMS trigger SMS locate Also send a SMS “SMSLOCATE*123456” to the tracker, “SMSLOCATE” is a command, “123456” is password; the tracker will locate immediately and send back the location information (latitude longitude speed battery time etc) of current location to the caller. The SMS example is same with above, if the command or password is not right, the operation is fault, the tracker will send back information “Bad Command ”...
  • Page 8 Send a SMS trigger website map link locate Send SMS “LINKLOCATE*123456” to the tracker, “LINKLOCATE” is a command, “123456” is password; the tracker will locate immediately and send back the location information (map website internet link) of current location to the caller. use mobile phone to click the website link to visit internet, and the location will display on the map on your phone(the mobile phone SIM card need enable the GPRS function), if the command or password is not right, the operation is fault, the tracker will send back information “Bad Command ”...
  • Page 9 Over Area Alarm: Send “SETAREA*123456*A22.670000N114.140000E*B22.680000N114.150000E” SMS to the tracker, “SETAREA” is a command, “123456” is password, “A22.670000N114.140000E” is the longitude and latitude of the first point(Point A) location, “B22.680000N114.150000E” is the longitude and latitude of the second point(Point B) location. Note: the over area set need 2 point, it is A and B, Point A must be on the Left bottom of the point B, the format of latitude and longitude of every point is as follow: Latitude format is YY.YYYYYYN, it has 8 digits, the last is N or S, means north latitude or south latitude, if the...
  • Page 10 password, “040” is the preset report speed, the speed must be 3 digits , from 000 to 999, unit is Km/hour, the tracker will send back the information “SETSPEED OK” or “SETSPEED FAIL” to indicate the operation is success or failed。 After set the over speed alarm, the system will locate every 5 minutes and check the speed of the tracker is higher than the preset speed or not, if the speed is higher than the preset speed, the tracker will send SMS to the phone who enable the alarm.
  • Page 11 alarm, over area alarm, over speed alarm, real tracking mode etc. if the command or password is not right, the operation is fault, the tracker will send back information “Bad Command ” or “Wrong Password”. Low Battery Alarm When the tracker battery voltage is low, the GREEN LED on tracker will flash 3 or 4 times, and then the tracker will automatically send battery low information to the first preset phone number.
  • Page 12 If the user receive the HELP information, please note that the help button must be pressed, please confirm with the user it is safe or not, if it is not safe please call the police. Installation Guide The antenna of GSM and GPS is built in tracker, please note that the install location of the tracker must can receive the GPS signal, normally the back of the seat or arm rest box or under the back window or room on the panel etc.
  • Page 13 C： 13316868198； Reply to CHANGEPASSW New Password ： Only preset phone operation Change password ORD*123456*888 can change 888888 phone that been preset Reply to CHECKPASSWO Only preset phone Password: operation Check password can check 888888 phone that been preset Reply to Set langue to ENGLISH*12345 Any mobile phone...
  • Page 14 times. ALARM CANCEL Reply to Cancel all alarm CANCELALARM* Any mobile phone or ALARM NOT operation setting 123456 can set phone Call the user and Reply to Monitor & Listen MONITOR*12345 Any mobile phone monitor sound operation sound can set around the tracker phone Call and talk to...

  • Page 15: Warranty

    Customer Addr Date year month Model CCTR-622 Serial Number Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice customer, if you have any problem please contact us, thanks!
