CCTR-823 Smart GPS Tracker Using Guide
-201811
Welcome to use this Smart GPS tracker CCTR-823, This product can upload current location to
website, display history tracking on website, it is very slim and it can remote turn off car engine, also it
built in shock sensor to control power saving, shock & move alarm, built in rechargeable polymer
battery 200mAH for power down alarm (tracker removed alarm), shock alarm, move alarm, over
speed alarm, etc.
With GPS and GSM, the tracker sends the present location information through GPRS to internet
server, so that user visit the website
www.999gps.net
with the applied user's name and password
(default user name & password are the last 6 digits of the tracker ID) through any computer with
available internet, and without downloaded any software. And it can help to arrange the whole fleet or
the vehicles of company or group or personal vehicles with the anti-hijack function.
And also user can download Android app software to android mobile phone, click the app, logon with
user name and password, you can locate current location & display history tracking, the user name
and password is same with the website login.
This GPS tracker can be used as car alarm, fleet management, driver management etc, it can be
used for tracking cars, company vehicles, buses, taxis, trucks, moving equipments, transportations,
etc.

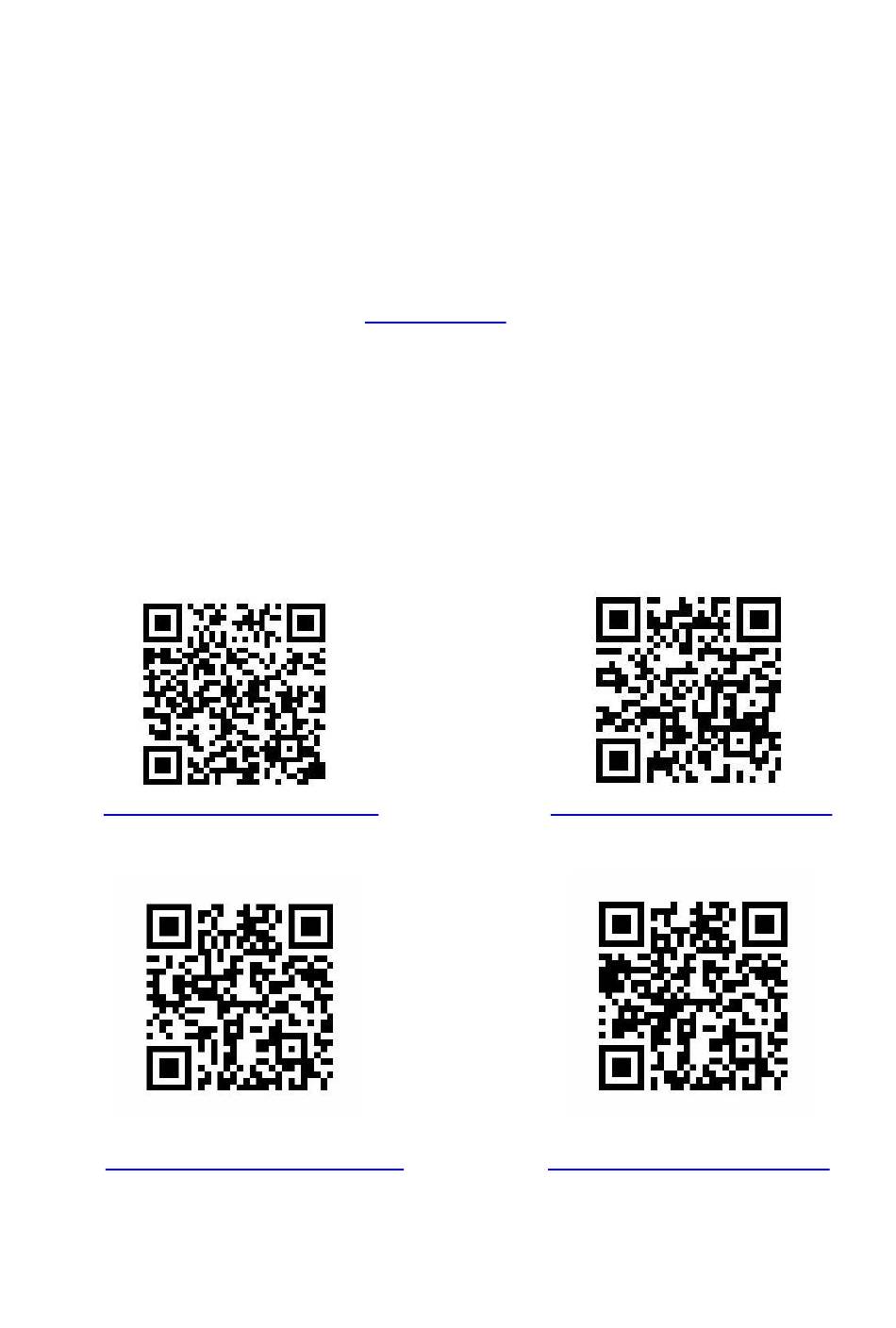

iPhone App Download QR Code
Android App Download QR Code
Manual(Word) Download QR Code
Manual(Pdf) Download QR Code
1
-
-
Advertisement
Table of Contents
Related Manuals for SHENZHEN CARSCOP Electronics CCTR-823
Summary of Contents for SHENZHEN CARSCOP Electronics CCTR-823
- Page 1 CCTR-823 Smart GPS Tracker Using Guide -201811 Welcome to use this Smart GPS tracker CCTR-823, This product can upload current location to website, display history tracking on website, it is very slim and it can remote turn off car engine, also it built in shock sensor to control power saving, shock &...
-
Page 2: Led Indicators
Product pictures: CCTR-823 Wire set USB Plug for maintain SIM slot Indicator Micro size Specification: Easy to install. (Connect to the car battery to locate. Need specific wires if you need other features too. Universal 4 GSM Band for Global;... -
Page 3: Install Sim Card
2. Power ON / OFF When power is OFF, connect the tracker power line to car battery, the tracker will power on and search for GPS and GSM signal automatically. When the blue and yellow led lights are both ON,red LED flashes every 2 seconds, ... -
Page 4: How To Install
5-10minutes to find the GSM AND GPS signal. CCTR-823 will start working once it’s been connected with the battery. (12V 24V battery can be employed universally). When ACC/ON is turned on(engine works), tracker would get to work immediately no matter if there is a shock applied or not. - Page 5 have good GPS and GSM signal, the GPS antenna should face to sky, and it can not face to ground, please keep the tracker away from the big metal, we recommend install the tracker under the front panel of the car, or under the rear panel or under the rear glass, or in the pillar beside the driver seat etc.
-
Page 8: How To Use
4.3 Backup battery Tracker can work at least 0.5-1H with it’s own battery after car battery has been cut out. (If there is no battery inside, tracker is not capable to send alarm information). Your authorized number will get an alarm information when power has been cut out to inform you that your tracker might be removed. - Page 9 is 217388, password is 217388 or 123456, the ID is print on the label on the back of the device, user can change the password and user information after logon, but can not change the user name, our administrator or dealer can change the user name by user request (ask your dealer to contact us), After logon, click the car you want check, the current location will display on the Google map, check the date and time and location is right or not, if it is correct, then you have installed the tracker and set the tracker properly, and it work well.
- Page 10 Alarm Off:Command"121#",Reply"121# ok". Set the vibration alarm trigger duration:Command:"vibtime123456,n#",Reply"vibtime set ok",n stands for 0-15seconds,It is 3s by default (That is, alarm information would be sent if there is a continuous vibration for 3 seconds ) 6.4 Move alarm Command"move123456 xxx"."move"is the fixed command,"123456"is the tracker password,xxx can be any number from 000~999,stands for moving distance for the set vehicle,send 000to cancel move sensor,unit is meter.After it’s been set, you will get a reply "move ok,and your tracker will be checking the car location.
- Page 11 7.1 Delete center and slave center number. All command operations without a password must be operated by binding the phone number. This phone number is also the target number for the locator to automatically send information when an alarm occurs. In order to dial the locator to trigger the mobile phone positioning, the alarm can only report to the platform when there is no authorized number, can not call and send SMS alarm, a locator can be bound to a primary number, two secondary numbers..
- Page 12 Some SIM card need set APN and GPRS user name & password to visit internet, if the APN and GPRS user name & password are not set, the SIM card can not visit internet, and the tracker can not upload the location to server. Please call your sim card supplier or visit their website to confirm this. Apn SMS command "apn123456 Apnname", "apn"is the fixed command;"123456"stands for the password,"Apnname"...
-
Page 13: Troubleshooting
Send SMS "CQ" to tracker can make the tracker power off and power on again, some time the tracker can not online, send the reset command, the tracker will re-power on a few minutes later. 7.9 Restore to factory setting (Back to Default) Send SMS "FORMAT"... -
Page 14: Warranty
User Mobile Phone Tracker SIM card Date Year month Model CCTR-823 Serial Number Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice customer, if you have any problem please contact us, thanks !
