EisSound i500 User Manual

Multiroom audio system for ipod
Hide thumbs Also See for i500:

Advertisement

i

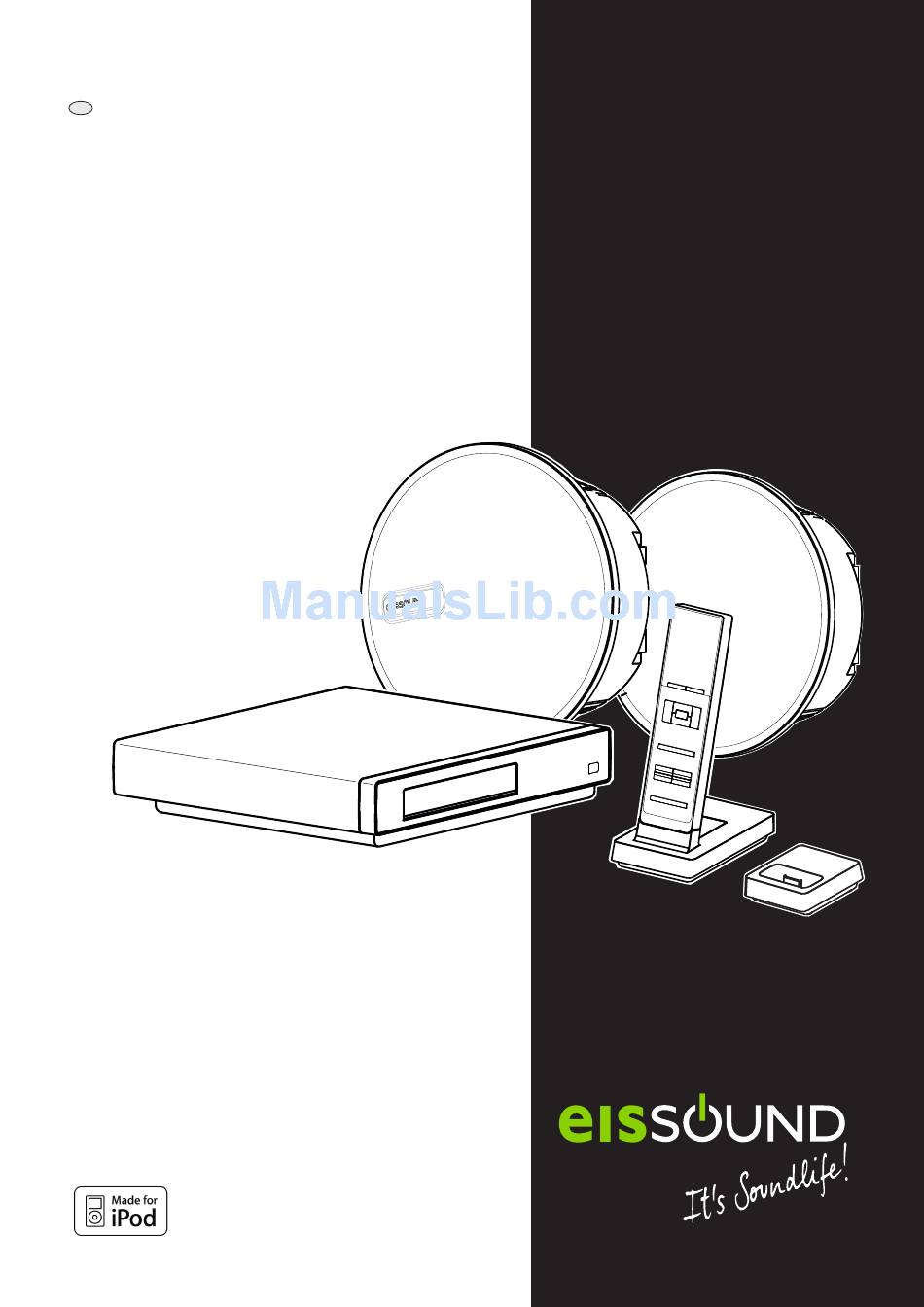

USER'S MANUAL
500
ENG
Multiroom Audio System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EisSound i500

  • Page 1 USER'S MANUAL Multiroom Audio System...
  • Page 2: Table Of Contents

    Multiroom Audio System 1.- Quick Reference Guide for Remote Control Unit Operation Recommendations to achieve enhanced communication between the Remote Control Unit and the Main Speaker or Zone Controller 2.- Link Remote Control Units and Main Active Speakers 3.- Operating the Sound System 3.1.- Basic Controls 3.2.- Equalization and timer 3.3.- FM tuners...
  • Page 3: Quick Reference Guide For Remote Control Unit Operation

    Quick Reference Guide for Remote Control Unit Operation To assure a correct system operation, Installer Manual indications must be followed. Also, every Remote Control must be linked with its Main Speaker or Zone Controller not linked Linked zone Battery KITCHEN Music ON Audio Channel Central disk...
  • Page 4: Recommendations To Achieve Enhanced Communication Between The Remote Control Unit And The Main Speaker Or Zone Controller

    Multiroom Audio System Recommendations to achieve enhanced communication between the Remote Control Unit and the Main Speaker or Zone Controller Be within the range of coverage to a maximum distance of 5 m from the Main Speaker or Zone Controller Do not move while operating the Remote Control Unit.
  • Page 5 Avoid nearby devices that emit Bluetooth, Wi-Fi or any other radiofrequency that transmits at 2.4 GHz. After a power cut that feeds the sound system (Central Unit, main Speakers and Zone Controllers) it is necessary to wait a time (maximum 1 minute) until each remote control unit link with the corresponding main Speaker or Zone Controller.
  • Page 6 Multiroom Audio System Link Remote Control Units and Main Speakers or Zone Controller A Remote Control Unit must be linked with a SINGLE Main Speaker or Zone Controller at all times. It is not possible to operate a Main Speaker neither Zone Controller by means of two Remotes simultaneously.
  • Page 7: Link Remote Control Units And Main Active Speakers

    associate with LIVING the zone Link "LIVING" KITCHEN LIVING 11:59 ATTIC Monday, 04/06/08 select zone If the desired zone does not appear, it is outside the coverage area. Go closer to the Main Speaker or Zone linked Controller with which we want to link and select a zone (see section recommendations...
  • Page 8: Equalization And Timer

    Multiroom Audio System 3.2. Equalization and timer Select the audio levels menu for access to the levels of volume, KITCHEN balance, treble, bass, loudness activation/deactivation and music ON activating the timer to turn off the music automatically in Central disk accordance with the time programmed.
  • Page 9: Fm Tuners

    3.3. FM tuners Two FM tuners may be selected from a Remote Control: the FM tuner in the Master Unit and the FM tuner in the Main Speaker or Zone Controller. Its control is similar. LIVING music ON Central FM Estrella de mar 97.9 KISS FM...
  • Page 10: Cd/Dvd-Audio Player

    Multiroom Audio System The “Autoscan” function is an automatic operation that deletes all the previously saved memories pre-sets and then initiates a process to select stations received with the best reception, storing the stations in the memory in order of dial frequency. Because broadcast from the Master Unit FM tuner is distributed throughout the entire home or building, the FM station tuned in the Master Unit will be the listened to in all rooms selecting the channel "Central FM ".
  • Page 11: Ipod

    Navigate through stored music on a disc is similar to navigate through an MP3 player or an audio CD/DVD and uses the same system of directories and folders: LIVING Central disk Song list music ON Song list Root music Shuffle Previous folder Central disk Repeat...
  • Page 12 Multiroom Audio System LIVING Music ON Central iPod Yesterday 09:11 Audio channel: Advance throughmusic play list central FM - central disk stored on iPod ó central L1 - central L2 Navigation using Estrella de mar Central iPod - local FM reproduction - local input control window...
  • Page 13: L1 And L2 External Sound Inputs

    3.6. L1 and L2 external sound inputs external sound input connected The Master Unit is equipped with two sound inputs, L1 and L2. Access the inputs through the RCA connectors located on the back panel. In this inputs can be connected any external sound source such as TV, VCR, Satellite...
  • Page 14: In-Room Sound Input

    Multiroom Audio System 3.7. In-Room sound input Each Remote Control Unit is equipped with a local LIVING sound input by means of music ON a 3.5 mm jack. This Local Input allows for private listening in the zone or room with 09:11 which the Main Speaker Audio channel:...
  • Page 15: Ideal" Function

    3.8. “Ideal” function It is possible to save an “ideal” audio mode for each room. This is accomplished by setting specific pre-determined settings which can be activated at any time by pressing the “OK” key for 2 seconds from the Audio Channel Screen. LIVING music ON Audio Channel...
  • Page 16: General Standby For The Entire System

    Multiroom Audio System 3.9. General standby for the entire system It is possible to switch off the music throughout the entire house without having to go room by room. Standby general LIVING music ON Central disk A hard day's night 09:11 enter select...
  • Page 17: Clock Functions

    4. Clock functions The clock functions are linked linked with each Main KITCHEN "KITCHEN" zone Settings Active Speaker or Zone Controller and are operated 11:59 and adjusted on the settings Menu from the Remote Control linked with it at the time. menu select settings...
  • Page 18: Auto-Standby

    Multiroom Audio System “Beep” type alarm Acts whether the Main Speaker or Zone Controller is on standby or with the music ON at the time and on the days programmed. The sound is the typical “beep” signal with three different tones and has a programmable volume. It is equipped with a “delay”...
  • Page 19: Intercom

    Intercom IMPORTANT: For the correct and orderly operation of the intercom functions it is assumed that each zone or room has its own Remote Control linked with its Main Speaker or Zone Controller. 5.1. Intercom call-response operation mode Each Remote Control is equipped with a built-in microphone which allows intercom calls to be made to different zones within the system.
  • Page 20: Electronic Baby Monitor

    Multiroom Audio System inadvertent listening). The auto-response feature is active as long as the voice detector does not detect silence for a period greater than the time defined in the setting. This mode is active while the person continues to speak (maximum time: 1 minute). The auto- response sensitivity and silence time are programmable parameters (see section 5.3).
  • Page 21: Intercom Settings

    When sound is detected in the room there is no need for any intervention on the Remote Control keypad. The Unit transmits an intercom call that stays open as long as the silence period programmed does not elapse. If a zone is in the DO NOT DISTURB mode it cannot receive intercom calls from the baby monitor.
  • Page 22: Display Settings

    Multiroom Audio System Display settings Presentation functions are linked with each Remote Control and are operated and adjusted from the Settings Menu. These functions include the level of display illumination, energy saving with ECO mode (automatically turn off the light of display when, inserted in the Base, no one is using the Remote Control), language, and the motifs or colors that allow for personalization of the Remote Control Unit.
  • Page 23: Faq's Frequently Asked Questions

    FAQ's: Frequently Asked Questions The Remote Control Unit loses coverage (waves signal flashes and disappears) Be sure that Main Active Speaker has been installed following recommendations of Installer Manual, section 2.5. Follow the recommendations indicated in section 1. Main Active Speaker does not work properly Be sure that Remote Control is looking at the Main Active Speaker (which has a light indicator) and not to Auxiliary nor Passive Speakers.
  • Page 24 Multiroom Audio System Cannot listen to the music from L1 y L2 external sound sources Verify that the connection is good. In the case of L1 external sound source, verify that iPod is not connected: note the channel iPod has priority over channel channel L1. Verify signal level generated by external sound resource is correct.
  • Page 25 Polígono Malpica Calle F Oeste Grupo de Naves Gregorio Quejido, 87-88 50016 Zaragoza (España) Tel.: 34 976 465 550 Fax: 34 976 465 559 comercial@eissound.com www.eissound.com AENOR Empresa Registrada ER-0634/1998 CC-1132-03 64460041...
  • Page 26 Multiroom Audio System ESTE CAJETÍN NO FORMA PARTE DEL MANUAL user´s manual...
