3‐5. System components
The system is installed on the digital cinema projector, and each includes
components as below.
3‐5‐1、System control modulator
System control modulator is connected with projector, to control the SYNC
signal for left and right eyes.

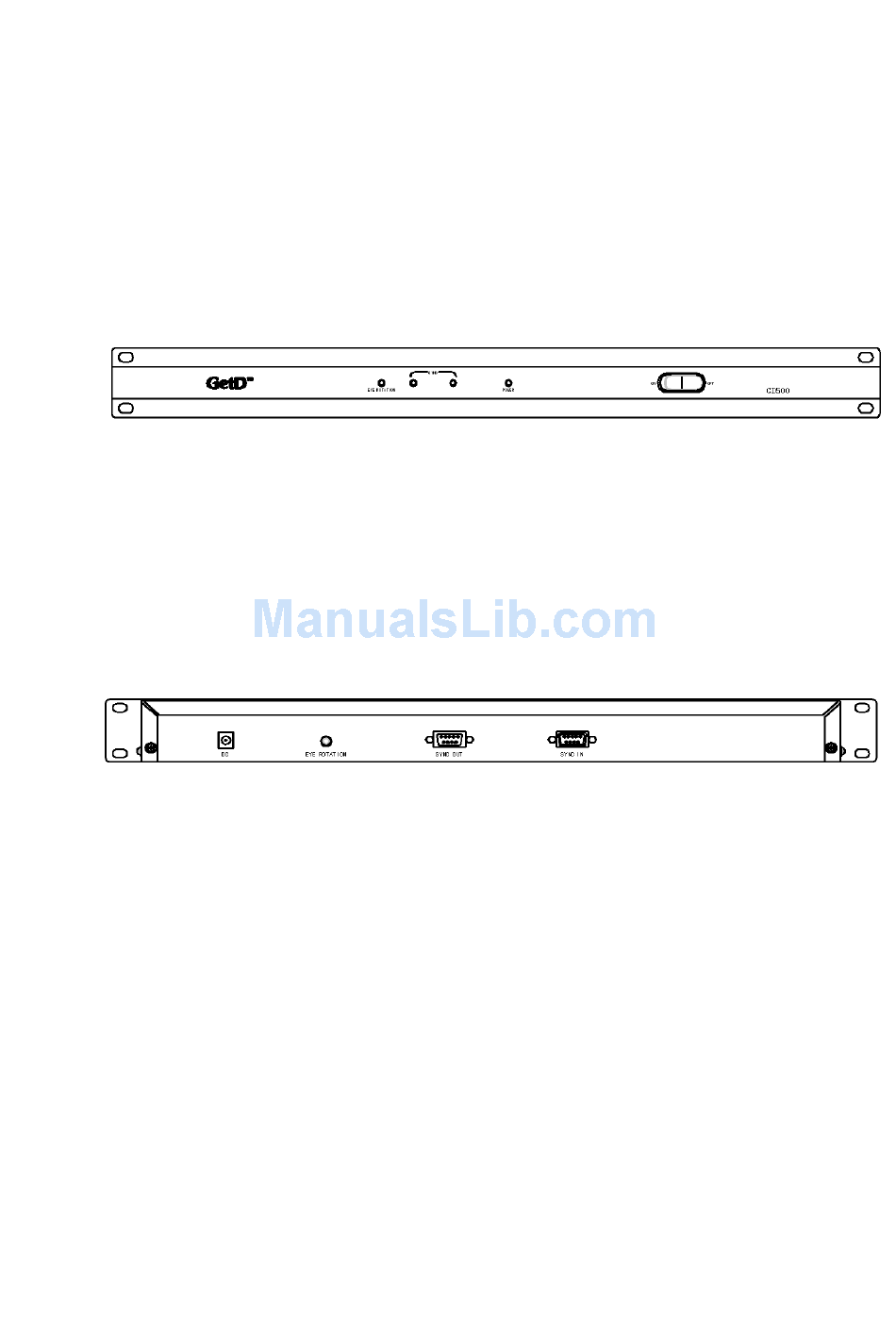

‐‐‐‐‐‐Picture for the front side
● ON/OFF
● POWER
● SYNC
● REVERSE
‐‐‐‐‐‐‐Picture for the back side
● DC
● REVERSE
● SYNC OUT 3D signal output
● SYNC IN
Power on and off.
The LED illuminates green when power on
The LED illuminates green for normal 3D signal, Red for
abnormal signal
The LED illuminates green for left and right eyes switch
Power interface
left and right eyes switch
3D signal input
