GetD Polarization System
User Guide
Advertisement
Table of Contents
Summary of Contents for GetD Polarization System
-
Page 1: User Guide
GETD TECH (HK) CO.,LIMITED HK OFFICE: FLAT/RM 305, BONHAM TRADE CENTRE, 50 BONHAM STAND, SHEUNG WAN, HONGKONG TEL：00852‐3077 5986 FAX: 00852‐3753 2123 FACTORY：BLUIDING 8, FUHUA INDUSTRIAL PARK,TANGWEI,FUYONG,BAO'AN, SHENZHEN, CHINA Tel: 0086‐755‐27379866 FX: 0086‐755‐29505519 GetD Polarization System User Guide... -
Page 2: Table Of Contents
Content ……………………………………………………2 1. Copyright …………………………………………… 2 2. Product overview ………………………4‐ 3. GetD Polarization System description …………………………………………………………4 3‐1. Polarized 3D technology ……………………………………………4 3‐2. GetD Polarization System features ………………………………………………5 3‐3. Installation ……………………………………………………………………5 3‐4. Requirements …………………………………………………………6‐7 3‐5. System components …………………………………………………8 4. Cleanness and Maintenance …………………………………9‐10... -
Page 3: Copyright
All parts of the product, including accessories, belong to GetD. Without p ermission, it is not allowed to copy and translate. As the improvement of th e product, GetD reserves the right to modify and update the manual without prior written notice.. When meeting any problems on the usage, please cont act with GetD or your supplier. -
Page 4: Getd Polarization System Description
3. GetD Polarization System description 3‐1. Polarized 3D technology GetD Single Polarization System is a usual cinema 3D projection technology. It uses passive luminous efficacy, mainly by High‐speed refresh of liquid crystal to show the left and right image alternately. Polarization light liquid crystal will change the circular polarization light angle of the right and left eye’s image. -
Page 5: Installation
3‐3. Installation 3‐4. Requirements In order to ensure that the system can work well, there are some requirements for equipment, as follows: ‐‐‐‐‐‐‐Digital cinema projector The projector must be standard 2k digital projector and can be compatible with the following models: Barco：DP1200、DP1500、DP2000、DP90、DP100、DP2k‐20C、DP2k‐32B etc. -
Page 6: System Components

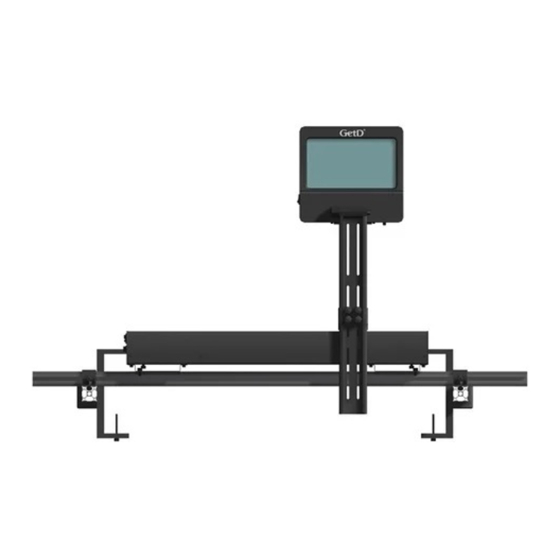

3‐5. System components The system is installed on the digital cinema projector, and each includes components as below. 3‐5‐1、System control modulator System control modulator is connected with projector, to control the SYNC signal for left and right eyes. ‐‐‐‐‐‐Picture for the front side ●... - Page 7 3‐5‐2.Polarizer module Front View Side view ● Signal input port: DB9 ● Transmittance: 39%±1% ● Frequencies supported：96Hz‐‐480Hz ● Working temperature:‐10℃‐60℃ ● Ghost: less than 1% ● Size: 210mm*140mm ● Polarization type: Circular polarized 3‐5‐3. Cables DB9‐GPIO37 cable DB9 cable ●DB9‐GPIO37 cable: connect the projector and system control module;...
-
Page 8: Cleanness And Maintenance
Cleanness and Maintenance for polarizer module Clean only for visible dust and smut. When cleaning the dust on the screen, please do accordingly as below: Do not touch the surface of the screen, because there are anti‐reflection coatings on the screen and optical glass. You can use the bright tool to check the surface of screen and optical glass, like the flashlight. -
Page 9: Installation And Cautions
5. Installation and caution 5‐1. Installation diagram... -
Page 10: Guarantee
6. Guarantee Valued customers: Firstly, thanks very much for choosing GetD, it’s our honor to have the opportunity to provide the superior service for you. Please fully fill the guarantee card with your information, and make it stamped by the direct distributor. To protect your benefit ， please ask for stamping from where your bought. - Page 11 Warranty card User’s name: Date of buying: Contact: Tel: Add: Name of distributor: categories: Model: Serial#: Stamp of distributor:...
