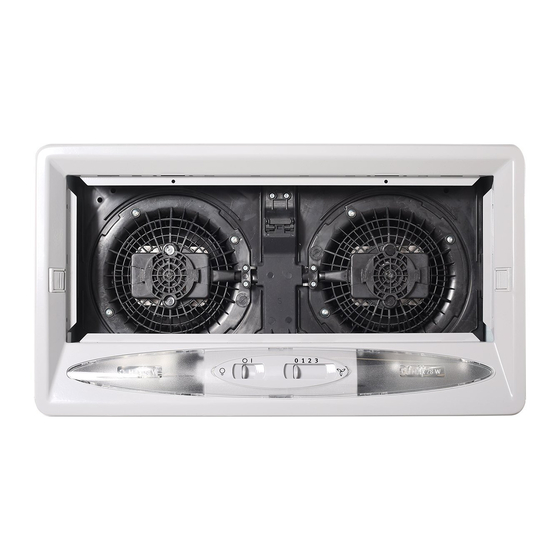

Electrolux EFG 540 User Manual

Hide thumbs

Advertisement

Quick Links

User manual
EFG 540
EFG 535
UK

Advertisement

loading

  Also See for Electrolux EFG 540

  Summary of Contents for Electrolux EFG 540

  • Page 1 User manual EFG 540 EFG 535...
  • Page 2: Table Of Contents

    Contents Safety warnings For the installer For the user Description of the Appliance Extractor version Recirculation Version Control Panel Correct ventilation Maintenance and Care Cleaning the hood Grease filter Opening the grid Removing the metal grease filters Removing the synthetic grease filter Charcoal filter Changing the light bulb Something Not Working...
  • Page 3: Safety Warnings

    Safety warnings For the installer conditions without the need for any of the aforementioned measures. • When used as an extractor unit, the hood must • When the hood is used in its extractor function, be fitted with a: the following rules must be followed to obtain EFC 535:100mm diameter hose, optimal operation: EFC 540:120mm diameter hose.
  • Page 4: Description Of The Appliance

    Description of the appliance Hose* Cabinet •• The cooker hood is supplied ready for use as a recirculation hood and may be used for Coupling ring extraction by removing the charcoal filter which have been fitted inside the cooker hood. Extractor version •...
  • Page 5: Maintenance And Care

    • The purpose of the grease filters is to absorb grease particles which form during cooking and it must always be used, either in the external Handle extraction or internal recycling function. Fig. 4 - EFG 540 Metal grease filter - only for Latch Latch model EFG 540...
  • Page 6: Charcoal Filter

    Charcoal filters keys "a". Fig. 7a-b. Fit each charcoal filter so to cover the plastic (EFG 540 : 2 pieces - EFG 535 : 1piece) grid that protect the fan wheel, then turn clockwise the central handle of the charcoal filter.
  • Page 7: Something Not Working

    Something Not Working If your appliance fails to work properly please carry out the following checks. Symptom Solution The cooker hood will not start. Check that: The hood is connected to the electricity supply. Check that a fan speed has been selected The cooker hood is not working Check that: The fan speed is set high enough for the task.
  • Page 8: Service And Spare Parts

    Service and Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local Electrolux Service Force Centre by telephoning: 08705 929 929 Your telephone call will be automatically routed to the Service Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk Please ensure that you have read the section „Something Not Working“...
  • Page 9: Guarantee Conditions

    Guarantee Conditions Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
  • Page 10: Technical Specifications

    Technical Specifications Model EFG 540 EFG 535 Dimensions Height (cm) 13,9 13,9 Width (cm) 52,4 52,4 Depth (cm) 28,9 28,9 Lighting 2 x 40 W 2 x 40 W Grease filter Power absorption 320 W 200 W Electrical connection: 220-240 V 220-240 V Subject to change without notice.
  • Page 11: Fixing The Hood Into A Cabinet

    Installation Fixing the hood into a cabinet This cooker hood is designed to be fitted to a cabinet or similar support. • Create an opening in the bottom of the cabinet to insert the cooker hood (1-2). • Make a hole on the top of the cabinet to fit the hose and for the electrical cable (3). •...
  • Page 12 The Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.

This manual is also suitable for:

Efg 535Efg 535
