Page 1

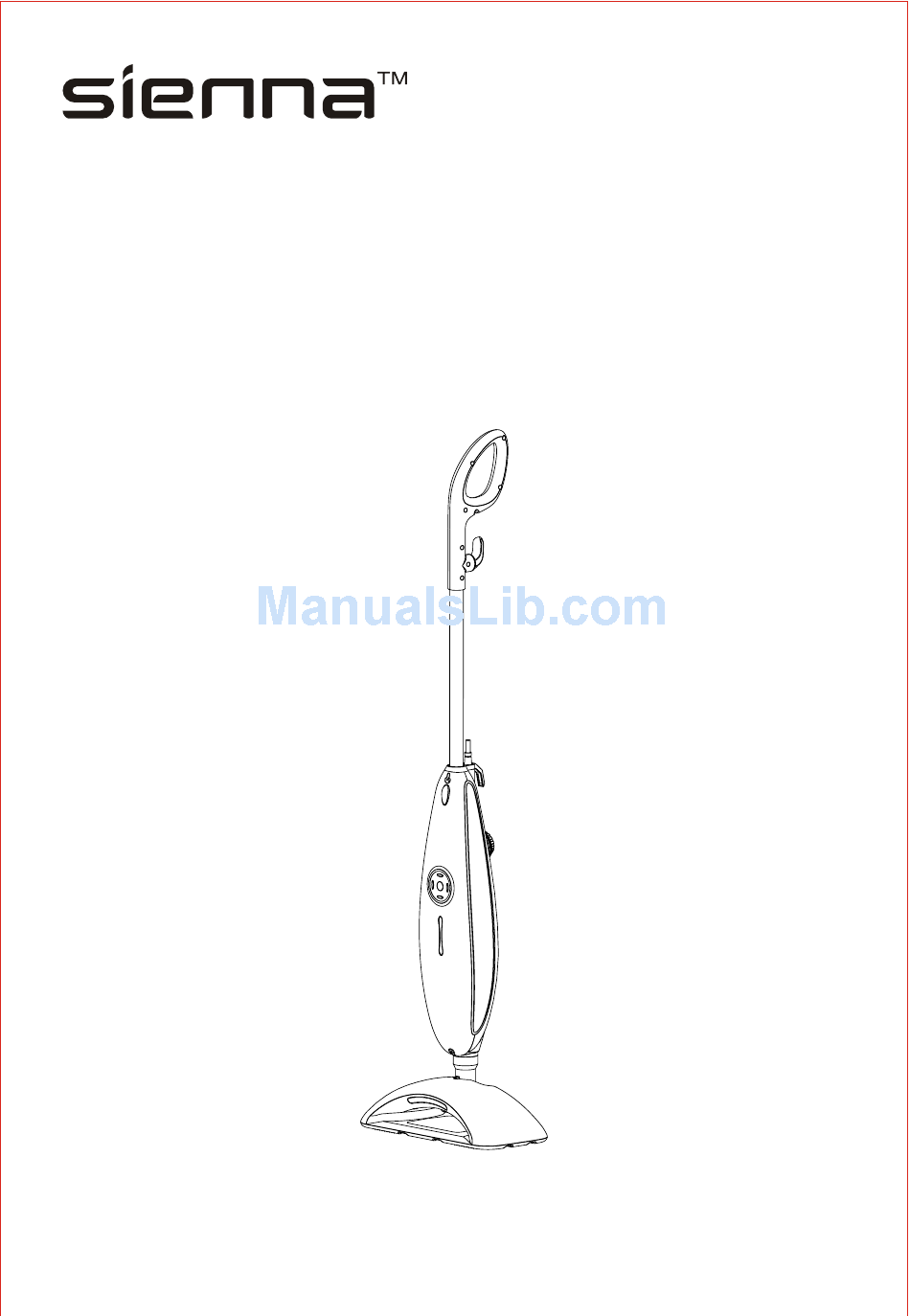

Luna SSM-3006 Steam Mop SSM-3016 Plus Steam Cleaner SAP-3016 Accessory Kit INSTRUCTION MANUAL...
Page 2
INTRODUCTION Thank you for choosing Sienna for your household cleaning needs. Our floor care products use the active power of steam without the use of chemicals; making it a green product that is safe for the ecosystem. You have begun the first step into transforming your house into a green, environmentally safe home.
SAFETY GUIDELINES The Sienna Luna (SSM-3006) Steam Mop or Luna (SSM-3016) Plus Steam Cleaner for indoor domestic floor use only. Any commercial use will void warranty. They are designed for sanitizing and cleaning an array of floor surfaces such as carpet, ceramic tile, sealed hardwood, marble, sealed laminate, stone, and vinyl floors.
KEY FEATURES WHITE LED LIGHT BUTTON (LED-W) 3 LEVEL STEAM BUTTON POWER ON/OFF BUTTON BLACK LED LIGHT BUTTON (LED-B) VIBRATION BUTTON HANDLE CORD WRAP QUICK RELEASE CORD WRAP LOWER CORD WRAP ILLUMINATED WATER TANK MOP HEAD REMOVAL BUTTON MOP HEAD REFILL BEAKER HANDLE UPPER SHOULDER STRAP ATTACHMENT...
ASSEMBLY AND USE 1) Attach handle to steamer body by pressing button on top front of steamer body and inserting handle tube in hole at top of steamer body. 2) Attach steamer body to mop head by pressing button on bottom back of steamer body and inserting steamer body in to mop head.
Page 6
WARING: THIS STEAMER HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER). TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS PLUG IS INTENDED TO FIT IN A POLARIZED OUTLET ONLY ONE WAY. IF THE PLUG DOES NOT FIT IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN.
Page 7
NOTE: Take advantage of the low profile mop head for hard to reach areas on your floor such as under a sofa or coffee table. NOTE: The mop head swivels 180 degrees for tight, cramped spaces like in the bathroom around toilets. CAUTION: To sanitize an area of your floor, leave the steam mop over the area for a minimum of 8 seconds, but no longer than 15 seconds.
Page 8
NOTE: The Luna 12 piece accessory kit may be purchased on our website at www.buysiennaproducts.com Plus (Accessory Kit) WARNING: STEAMER MUST BE TURNED OFF IN ORDER TO SWITCH IT INTO A PORTABLE STEAMER. WHEN IN USE, BE SURE TO PUT THE STEAM LEVEL ON MOP OR SCRUB STEAM SETTINGS FOR OPTIMUM USAGE.
Page 9
16) Nylon brush- Attach brush onto either the extension hose nozzle or the angle concentrator nozzle for cleaning in hard to reach places. Use in places such as grout, kids toys, tire rims and car interior. 17) Brass brush- Use the brass brush in the same way as the nylon brush, but use for tough surfaces that won't scratch such as outdoor grills.
CLEANING AND MAINTENANCE CAUTION: Prior to cleaning or maintaining your steam mop, isolate the unit by removing the cord from the power socket and avoid immersing the unit in water. 1) The eco-microfiber cloth pads can be machine washed in hot water and tumble dry. Do not use bleach or fabric softener.
TROUBLESHOOTING CAUTION: Prior to cleaning or maintaining your steam mop, isolate the unit by removing the cord from the power socket. PROBLEM SOLUTION Steamer turns off while in After 30 minutes of use, the " auto shut off " feature engages.
CUSTOMER SUPPORT For problems with your Sienna Luna Steam Mop or Luna Plus Steam Cleaner, please refer to Troubleshooting guide. Additional inquiries should be directed to our Customer Service department by calling 1-888-574-3662 or by e-mail to: customerservice@anvidproducts.com...
A repaired or replacement product will be covered by this warranty for the balance of the initial one year warranty period. To contact Customer Service: Write: Anvid Products, Inc. 1401-1499 Greenville Road Livermore, CA 94550 E-mail: customerservice@anvidproducts.com Or call: 1-888-5SIENNA (1-888-574-3662) Please refer to your product name and model number when contacting Customer Service.
Page 14
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Copyright 2013 Anvid Products, Inc. Made in China Printed in China...
